10- Electrical Accessories

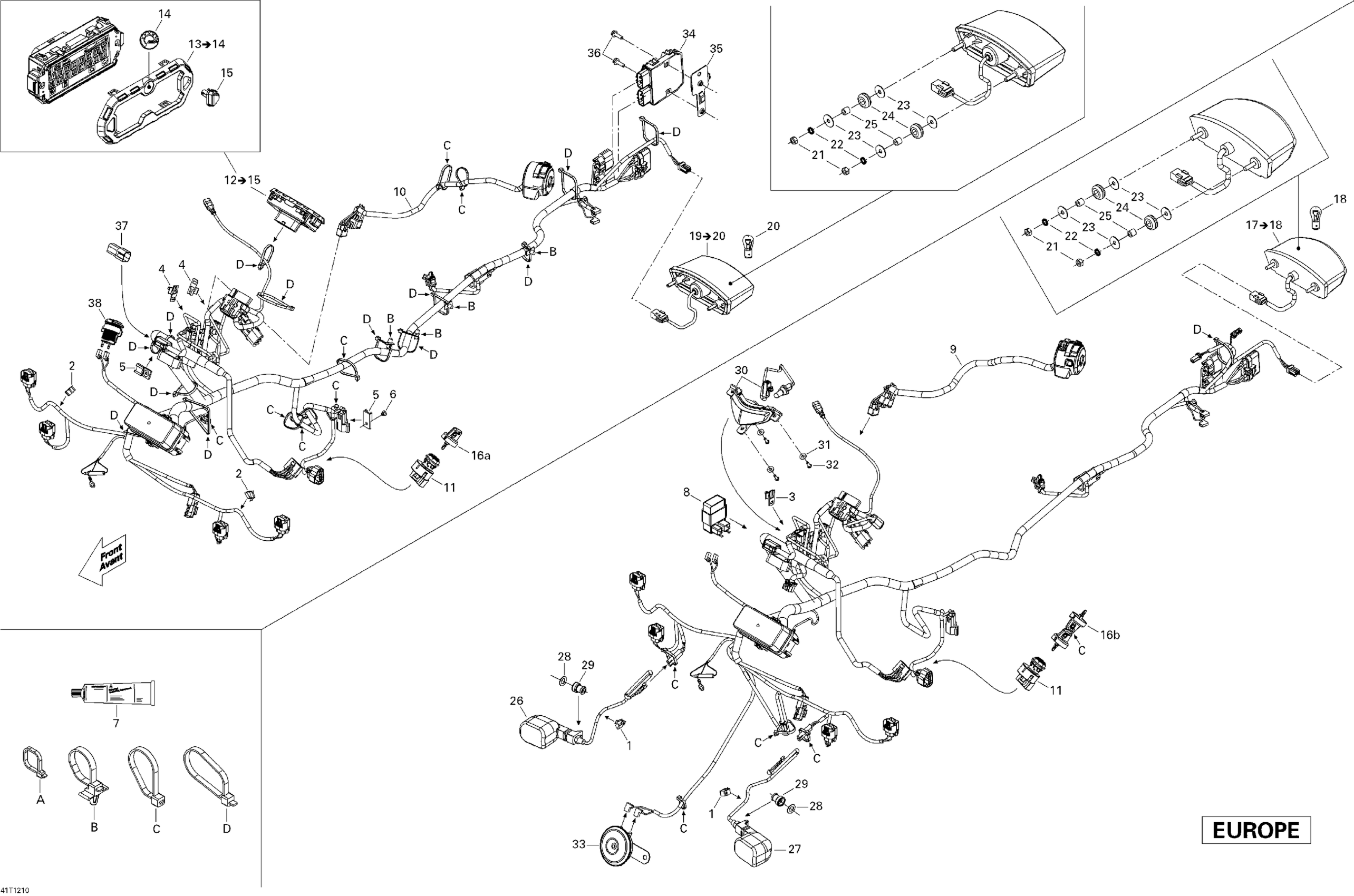

Can-Am Renagade 500EFI STD, 2012 10- Electrical Accessories Diagram
#
1
Clip
414227300
Unavailable
2
Clip
414227300
Unavailable
3
Housing Support
515175283
Unavailable
4
Housing Support
515175283
Unavailable
5
Clip
270000141
Unavailable
6
Pop Rivet 3/16"
390402400
Unavailable
7
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
8
Flasher Unit
710003239
Unavailable
9
Multi-Function Handle
710004040
Unavailable
10
Handle Kit | STD
703500919
Unavailable
11
Ignition Switch | Includes 16 to 17
710002324
Unavailable
12
Calibrated Speedometer | Includes 16 to 17
710003288
Unavailable
13
Trim Ring Ass'y
710001183
Unavailable
14
BRP Logo13 mm
704904615
Unavailable
15
Button
710001473
Unavailable
16a
Black, Electronic Key
710000817
Unavailable
16b
Black, Electronic Key
710000817
Unavailable
17
Tail Light Ass'y | Europe Models, Includes 53 To 54
710000760
Unavailable
18
Bulb
520000758
Unavailable
19
Tail Light Ass'y | Includes 19 to 20
710001041
Unavailable
20
Bulb
520000758
Unavailable
21
Hex. Nut M6
232061600
Unavailable
22
External Serrated Lock Washer 6 mm
234461608
Unavailable
23
Flat Washer
224060201
Unavailable
24
Grommet
709000582
Unavailable
25
Bushing
293900105
Unavailable
26
Flasher | Europe Models, Includes 60 To 61
710000547
Unavailable
27
Flasher | Europe Models, Includes 60 To 61
710000546
Unavailable
28
Washer
503175800
Unavailable
29
CAP GUARD - Call your local BRP dealership | Europe Models
710001826
Unavailable
30
Day Light
710001042
Unavailable
31
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
32
PHILLIPS SCREW K40 X 10 - Call your local BRP dealership
241641040
Unavailable
33
Horn
710004791
Unavailable
34
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
35
RECTIFIER SUPPORT - Call your local BRP dealership
710001262
Unavailable
36
Hexagonal Head Screw
210262050
Unavailable
37
Diagnostic Connector
278002704
Unavailable
38
DC Outlet
710001248
Unavailable
A
Tie Wrap 94 mm | 4X4
293750001
Unavailable
B
Tie-Rap 173 mm
293750009
Unavailable
C
Tie-Rap 180 mm
414115200
Unavailable
D
Tie Wrap 368 mm
293750008
Unavailable
