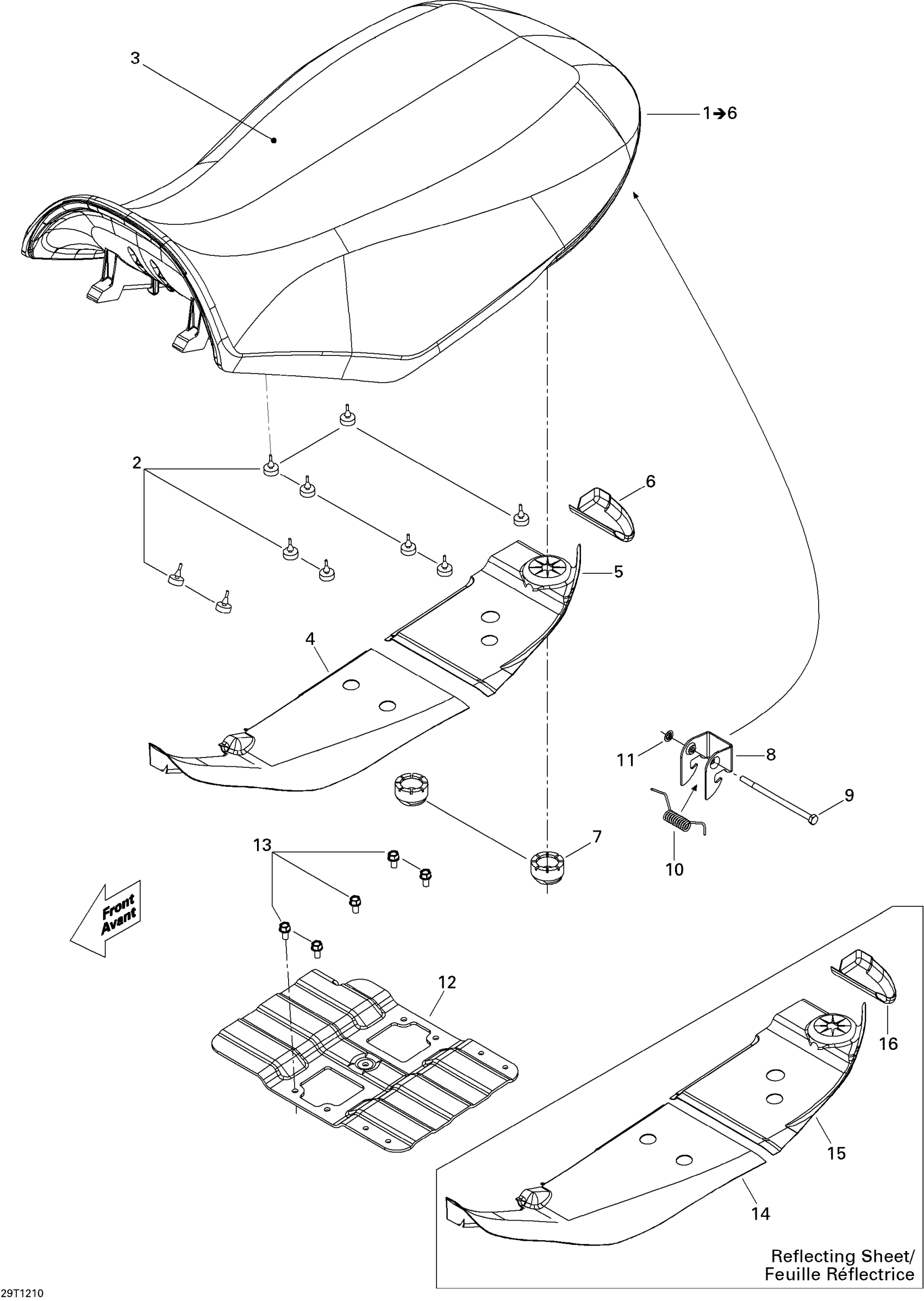

Can-Am Renagade 500EFI STD, 2012 09- Seat Diagram

#

Description
Price

1

SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 3

715500325

Unavailable

2

Rubber Stopper

708000759

Unavailable

3

SEAT COVER - Call your local BRP dealership

708000593

Unavailable

4

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

5

REFLECTING SHEET - Call your local BRP dealership

708000955

Unavailable

6

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

7

Bumper Rubber

708000760

Unavailable

8

Latch, Black

708000144

Unavailable

9

Hex. Screw M6 X 110

230061034

Unavailable

10

Spring

708000369

Unavailable

11

Push Nut

732610072

Unavailable

12

Seat Reinforcement

708000629

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

Unavailable

14

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

15

REFLECTING SHEET - Call your local BRP dealership

708000955

Unavailable

16

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable
