08- Drive System, Rear

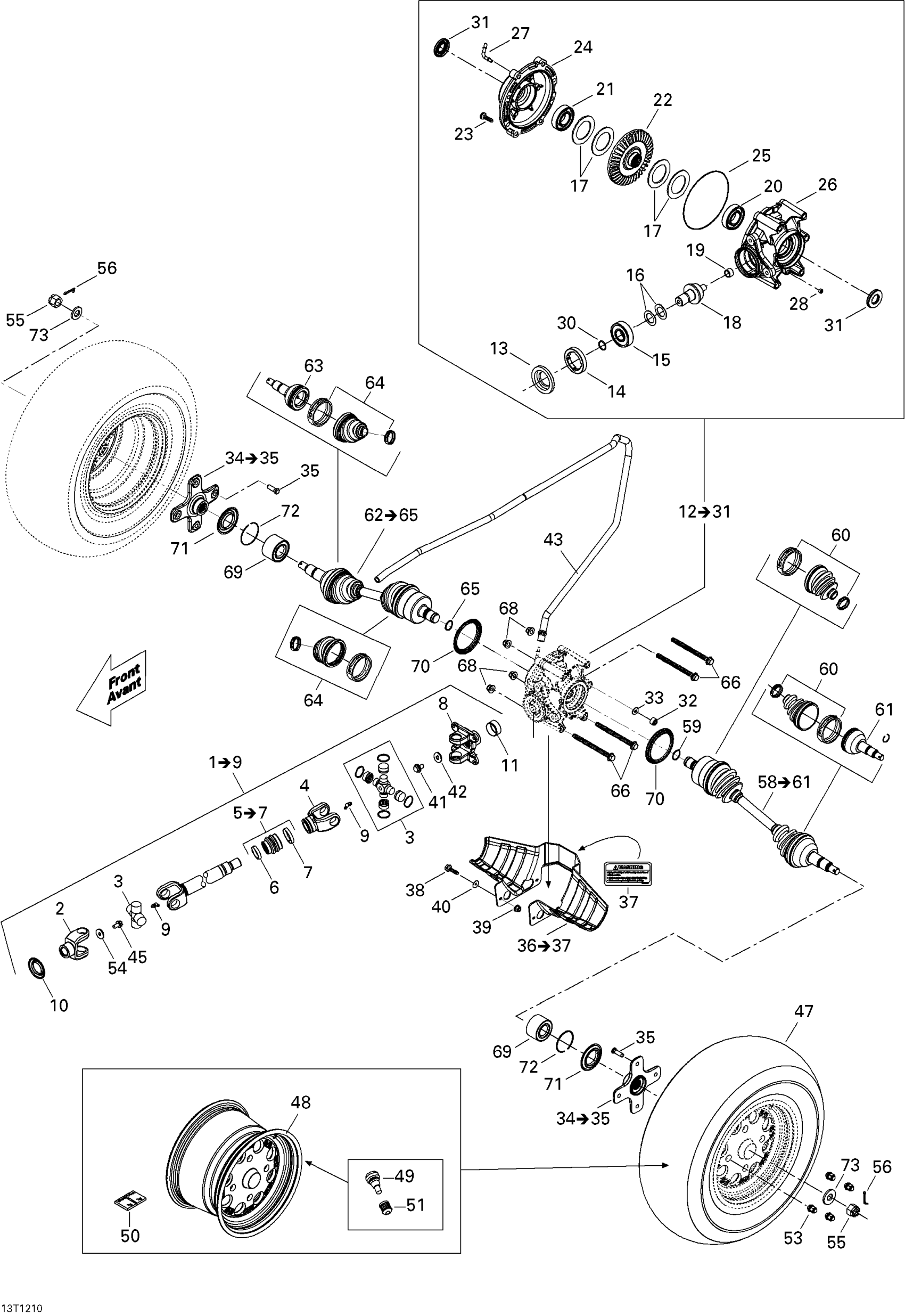

Can-Am Renagade 500EFI STD, 2012 08- Drive System, Rear Diagram
#
1
Rear Propeller Shaft Kit | Includes 1 to 9
703500801
Unavailable
2
Fixe Yoke
715900101
Unavailable
3
Universal Joint
715900326
Unavailable
4
SLIDING JOINT - Call your local BRP dealership
705501072
Unavailable
5
Rubber Boot Kit | 4X4 / Includes 3 to 5
703500255
Unavailable
6
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
7
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
8
DISC JOINT - Call your local BRP dealership
705500526
Unavailable
9
GREASE FITTING - Call your local BRP dealership
705500841
Unavailable
10
Protector
705501123
Unavailable
11
Wear Ring | 4X4
705400036
Unavailable
12
Differential Kit | Includes 10 to 29
703501033
Unavailable
13
Oil Seal | 4X4
705401481
Unavailable
14
Nut
705502059
Unavailable
15
Ball Bearing | 4X4
705500260
Unavailable
16
Pinion Gear Shim 1.67 mm
705502061
Unavailable
16
Pinion Gear Shim
705501162
Unavailable
17
Differential Shim 0.02 mm
705502060
Unavailable
18
Ens Engrenage 10/36D *Gear-10/36 Too Kit
703500873
Unavailable
19
Needle Bearing
705501408
Unavailable
20
Ball Bearing
705502737
Unavailable
21
Ball Bearing
705502738
Unavailable
22
Ens Engrenage 10/36D *Gear-10/36 Too Kit
703500873
Unavailable
23
Screw | 4X4
705401601
Unavailable
24
REAR DIFFERENTIAL COVER - Call your local BRP dealership
705501507
Unavailable
25
Seal | 4X4
705500265
Unavailable
26
PINION REAR COVER - Call your local BRP dealership
705501395
Unavailable
27
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
28
Drain Plug | 4X4
705500894
Unavailable
30
O-Ring | 4X4
705500267
Unavailable
31
Oil Seal
705501996
Unavailable
32
Fill Level Plug | 4X4
705500504
Unavailable
33
Copper Washer | 4X4
705500506
Unavailable
34
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66
705501713
Unavailable
35
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
36
Protector Kit | Includes 38 to 39
703500722
Unavailable
37
WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership
704900766
Unavailable
37
WARNING DECAL, TRAILER - Call your local BRP dealership | Europe
704901905
Unavailable
38
Hex. Flange Screw M6 X 25
207662544
Unavailable
39
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
40
Flat Washer
250200082
Unavailable
41
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
Unavailable
42
Flat Washer M12
250200102
Unavailable
43
Polyurethane Hose 10000Mm Long
219704410
Unavailable
45
Hex Flange Screw M12 X 16
250001039
Unavailable
47
Rear Tire | Europe & International
705500820
Unavailable
47
Tire | North America
705500926
Unavailable
48
RIM_12 INCH X 7,5 - Call your local BRP dealership
705500837
Unavailable
49
Rim Valve With Cap
705400193
Unavailable
50
1/2 Oz Weight
219704465
Unavailable
51
Valve Cap
293000110
Unavailable
53
Chrome Wheel Nut M10 X 1.25 | XT
250100185
Unavailable
54
Flat Washer M12
250200102
Unavailable
55
Hex. Flange Castellated Nut M18
232291413
Unavailable
56
Cotter Pin
250400036
Unavailable
58
LH Rear - Premium CV Axle | Includes 58a to 63a
705501485
Unavailable
59
CIRCLIP - Call your local BRP dealership
705500845
Unavailable
60
Boot Kit
705500870
Unavailable
61
CV JOINT - Call your local BRP dealership
705500980
Unavailable
62
RH Rear - Premium CV Axle | Includes 64a to 69a
705501486
Unavailable
63
CV JOINT - Call your local BRP dealership
705500980
Unavailable
64
Boot Kit
705500870
Unavailable
65
CIRCLIP - Call your local BRP dealership
705500845
Unavailable
66
Hex. Flange Screw M10 X 135
250001041
Unavailable
68
Hex. Flange Elastic Nut M10
233201434
Unavailable
69
Ball Bearing
293350150
Unavailable
70
Wear Ring
705501124
Unavailable
71
Wear Sleeve | 4X4
705501121
Unavailable
72
Circlip
293370019
Unavailable
73
Conical Spring Washer M18
250200171
Unavailable
