- Renagade 500EFI STD, 2012
07- Drive System, Front

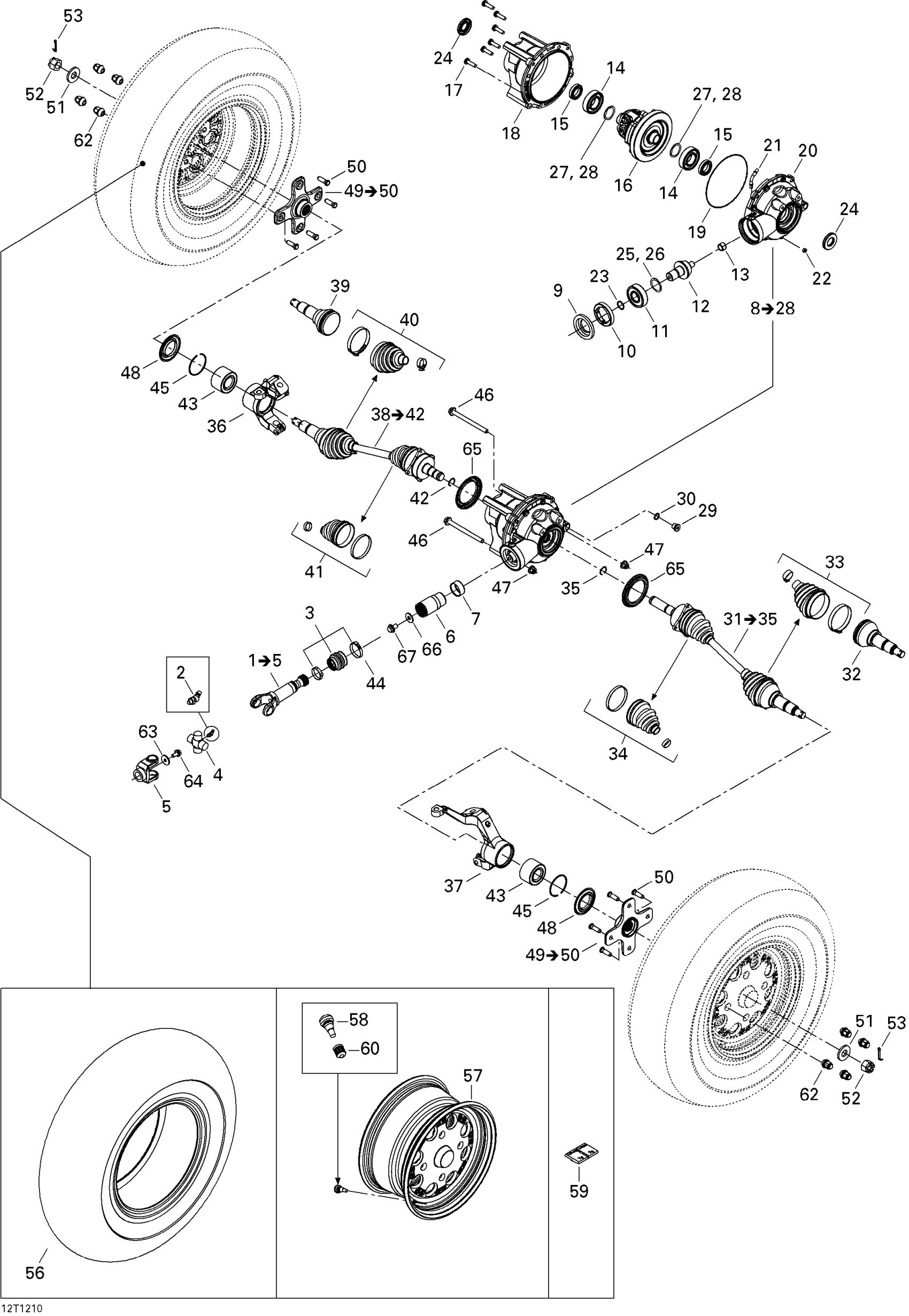

Can-Am Renagade 500EFI STD, 2012 07- Drive System, Front Diagram
#
1
Arbre Assemble *Drive Axle Ass | Includes 1 to 6
705400914
Unavailable
2
GREASE FITTING - Call your local BRP dealership
715900067
Unavailable
3
Rubber Boot Kit | 4X4 / Includes 3 to 5
703500255
Unavailable
4
Ens. Croix*U-Joint Cross Kit
715900325
Unavailable
5
YOKE, FIXED JOINT - Call your local BRP dealership
705400391
Unavailable
6
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
7
Wear Ring | 4X4
705400036
Unavailable
8
Front Differential | Includes 8 to 31
703500907
Unavailable
9
Oil Seal | 4X4
705401481
Unavailable
10
Nut | 4X4
705401603
Unavailable
11
Ball Bearing | 4X4
705500260
Unavailable
12
10 TEETH PINION - Call your local BRP dealership
705501588
Unavailable
13
Needle Bearing | 4X4
705500261
Unavailable
14
Ball Bearing | 4X4
705401606
Unavailable
15
Ball Bearing | 4X4
293350044
Unavailable
16
Ens Differentiel*Differential Kit | 4X4
703500871
Unavailable
17
Screw | 4X4
705401601
Unavailable
18
FRONT COVER - Call your local BRP dealership
705400762
Unavailable
19
Seal | 4X4
705500265
Unavailable
20
FRONT COVER - Call your local BRP dealership
705400761
Unavailable
21
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
22
Drain Plug | 4X4
705500894
Unavailable
23
O-Ring | 4X4
705500267
Unavailable
24
Gasket | 4X4
705401618
Unavailable
25
Pinion Gear Shim 1.67 mm
705502061
Unavailable
26
Pinion Gear Shim .022"
705500075
Unavailable
26
Pinion Gear Shim
705501162
Unavailable
27
Shim | 4X4
705401604
Unavailable
28
Shim | 4X4
705401604
Unavailable
29
Fill Level Plug | 4X4
705500504
Unavailable
30
Copper Washer | 4X4
705500506
Unavailable
31
RH Half Shaft | Includes 34 to 39
705401579
Unavailable
32
CV Joint
705500560
Unavailable
33
Wheel Boot Kit
705400511
Unavailable
34
Differential Boot Kit
705400512
Unavailable
35
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
36
LH KNUCKLE - Call your local BRP dealership
705400820
Unavailable
37
RH KNUCKLE - Call your local BRP dealership
705400821
Unavailable
38
HALF SHAFT LH. - Call your local BRP dealership | Includes 43 to 51
705401111
Unavailable
39
CV Joint
705500560
Unavailable
40
Wheel Boot Kit
705400511
Unavailable
41
Differential Boot Kit
705400512
Unavailable
42
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
43
Ball Bearing
293350150
Unavailable
44
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
45
Circlip
293370019
Unavailable
46
Hex. Flange Screw M10 X 125
230602546
Unavailable
47
Hex. Flange Elastic Nut M10
233201436
Unavailable
48
EXTERNAL WEAR SLEEVE - Call your local BRP dealership | 2X4
705501122
Unavailable
49
WHEEL HUB ASS'Y - Call your local BRP dealership | 2X4 / Includes 63 to 64
705401040
Unavailable
50
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
51
Conical Spring Washer M18
250200171
Unavailable
52
Hex. Flange Castellated Nut M18
232291413
Unavailable
53
Cotter Pin
250400036
Unavailable
56
Tire | North America
705400600
Unavailable
56
TIRE_205/80R12 F - Call your local BRP dealership | Europe & International
705400475
Unavailable
57
Front Rim
705400506
Unavailable
58
Rim Valve With Cap
705400193
Unavailable
59
1/2 Oz Weight
219704465
Unavailable
60
Valve Cap
293000110
Unavailable
62
Chrome Wheel Nut M10 X 1.25 | XT
250100185
Unavailable
63
Flat Washer M12
250200102
Unavailable
64
Hex Flange Screw M12 X 16
250001039
Unavailable
65
Wear Sleeve
705400780
Unavailable
66
Flat Washer M12
250200102
Unavailable
67
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
Unavailable
