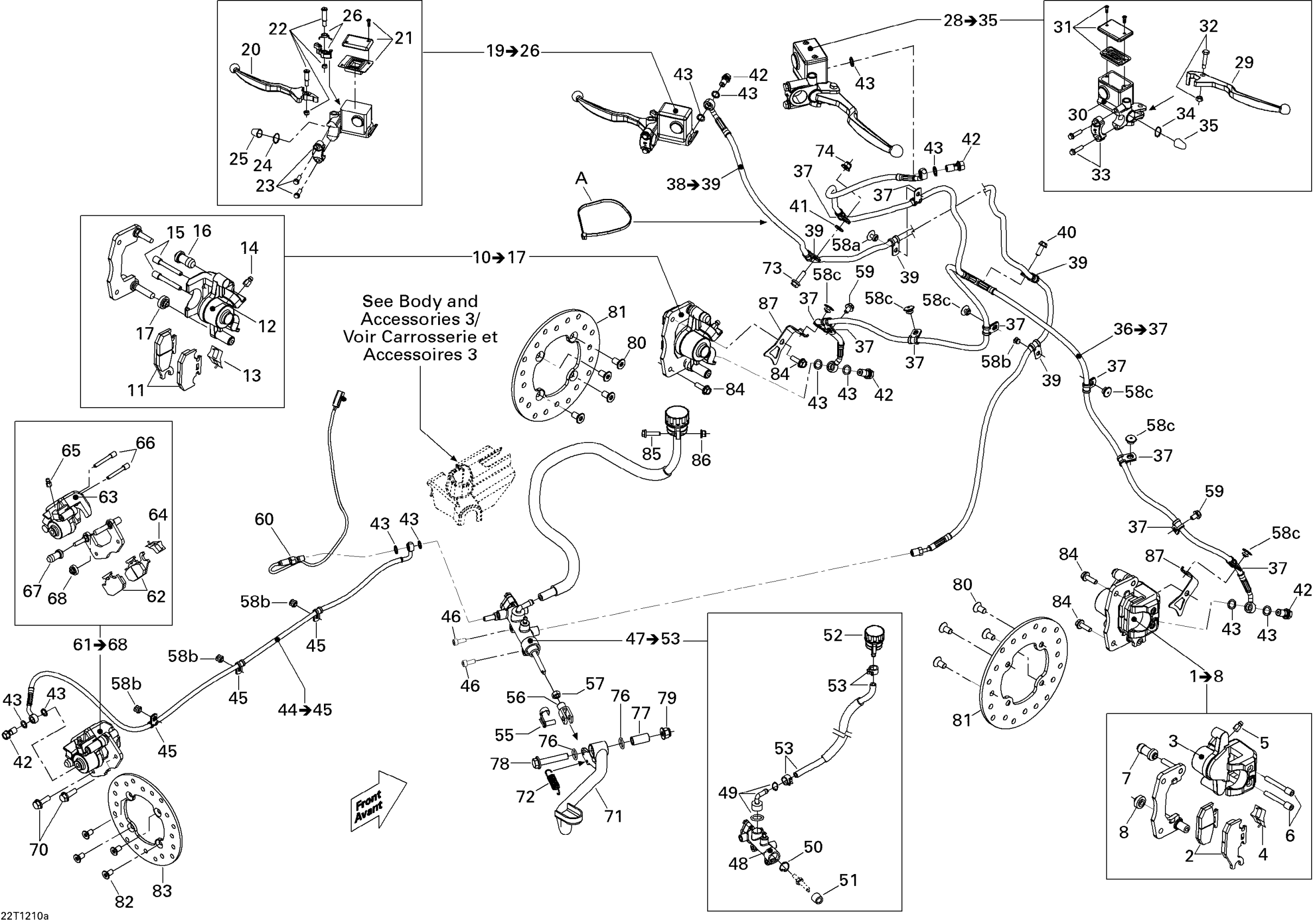

Can-Am Renagade 500EFI STD, 2012 06- Brakes Diagram
#
1
RH CALIPER - Call your local BRP dealership | Includes 1 to 9
705600593
Unavailable
2
Brake Pad Kit
705600004
Unavailable
3
Piston Set
705600078
Unavailable
4
Spring
705600079
Unavailable
5
Bleeding Screw
705600080
Unavailable
6
Pin Set (2)
705600081
Unavailable
7
Compression Boot
705600082
Unavailable
8
Compression Boot
705600083
Unavailable
10
LH CALIPER - Call your local BRP dealership | Includes 10 to 18
705600594
Unavailable
11
Brake Pad Kit
705600014
Unavailable
12
Piston Set
705600078
Unavailable
13
Spring
705600079
Unavailable
14
Bleeding Screw
705600080
Unavailable
15
Pin Set (2)
705600081
Unavailable
16
Compression Boot
705600082
Unavailable
17
Compression Boot
705600083
Unavailable
19
LH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 1 to 9
705600845
Unavailable
20
Lever Arm
705600243
Unavailable
21
Cap Set
705600084
Unavailable
22
Brake Lever Bolt Kit
705600246
Unavailable
23
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
24
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
25
COMPRESSION BOOT - Call your local BRP dealership
705600089
Unavailable
26
PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership
705600477
Unavailable
28
RH FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 27 to 35
705600956
Unavailable
29
LEVER ARM - Call your local BRP dealership
705600629
Unavailable
30
SWITCH KIT - Call your local BRP dealership
705600086
Unavailable
31
Cap Set
705600084
Unavailable
32
BOLT KIT - Call your local BRP dealership
705600085
Unavailable
33
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
34
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
35
COMPRESSION BOOT - Call your local BRP dealership
705600089
Unavailable
36
FRONT HOSE - Call your local BRP dealership | Includes 28 to 29
705600597
Unavailable
37
Clamp
293650256
Unavailable
38
FRONT HOSE - Call your local BRP dealership | Includes 10 to 11
705600598
Unavailable
39
Clamp
293650256
Unavailable
40
Hex. Flange Screw M6 X 16
210261650
Unavailable
41
Flat Washer
224061121
Unavailable
42
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
43
Copper Washer
705601628
Unavailable
44
Rear Hose | Includes 34 to 35
705600929
Unavailable
45
Clamp
293650256
Unavailable
46
Socket Head Screw M8 X 20, Scotch Grip
250000136
Unavailable
47
Master Cylinder | Includes 36 to 44, STD Model
705600751
Unavailable
48
Piston Set
705600255
Unavailable
49
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership
705600064
Unavailable
50
Circlip
705600068
Unavailable
51
Compression Boot
705600090
Unavailable
52
Oil Tank, Brake Fluid Reservoir
705600182
Unavailable
53
OIL HOUSING HOSE - Call your local BRP dealership
705600754
Unavailable
55
Pin Kit
219702305
Unavailable
56
Yoke
705600100
Unavailable
57
Hex. Nut M8
232081414
Unavailable
58a
Pop Rivet 3/16"
293150103
Unavailable
58b
Pop Rivet 3/16" | DS 650 X
390402000
Unavailable
58c
Pop Rivet 3/16”
390910000
Unavailable
59
Hex. Flange Screw M6 X 10
210261040
Unavailable
60
Brake Switch
705600798
Unavailable
61
Rear Caliper | Includes 39 To 47
705600599
Unavailable
62
LH Brake Pad Kit
705600398
Unavailable
63
Piston Set
705600078
Unavailable
64
Spring
705600079
Unavailable
65
Bleeding Screw
705600080
Unavailable
66
Pin Set (2)
705600081
Unavailable
67
Compression Boot
705600082
Unavailable
68
Compression Boot
705600083
Unavailable
70
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
71
BRAKE PEDAL, BLACK - Call your local BRP dealership
705601154
Unavailable
72
Brake Pedal Spring
705600792
Unavailable
73
Hex. Flange Screw M6 X 20
207662044
Unavailable
74
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
76
O-Ring
293300144
Unavailable
77
Inner Spacer
705600815
Unavailable
78
Hex. Flange Screw M10 X 55
207605544
Unavailable
79
Hex. Flange Elastic Nut M10
233201414
Unavailable
80
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
81
Disk Brake
705600604
Unavailable
82
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
83
Disk Brake
705600604
Unavailable
84
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
85
Hex. Flange Screw M6 X 25
207662544
Unavailable
86
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
87
BRACKET - Call your local BRP dealership
705600795
Unavailable
A
Tie Wrap 368 mm
293750008
Unavailable
