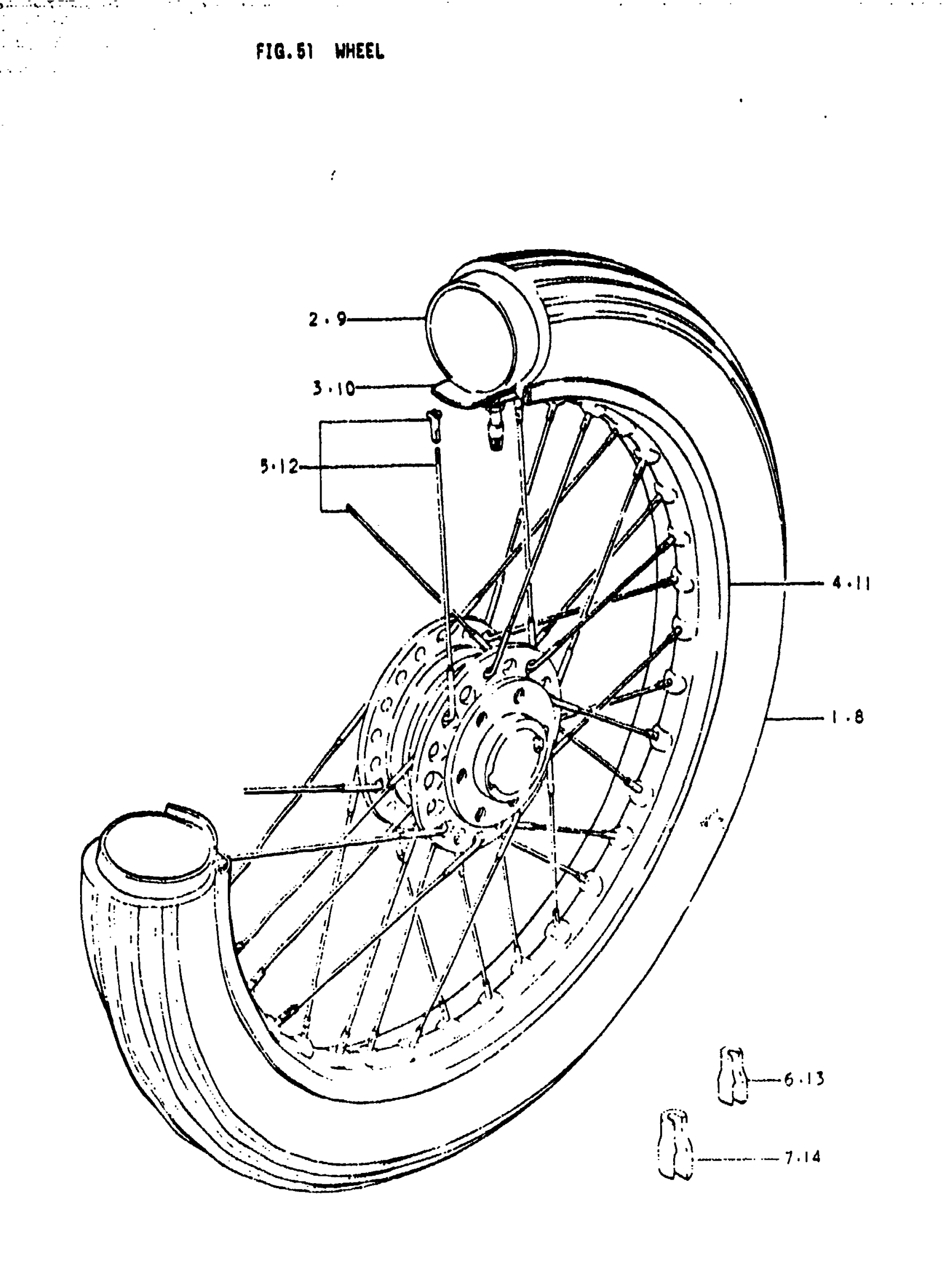

Suzuki RE5 (1976) WHEEL Diagram

#

Description
Price

1

TIRE, FRONT | M,A; 3.25-19

55100-31012

Unavailable

2

TUBE | M,A; 3.25-19 This part replaces 55200-15010.

55200-44611

$33.73

3

PROTECTOR, WHEEL INNER TUBE FRONT | M,A; 22x19 This part replaces 55261-15010.

55261-15020

$3.15

4

RIM, FRONT | M,A; 1.858x19

55311-37021

Unavailable

5

SPOKE SET | M,A This part replaces 55320-34805.

55320-45000

Unavailable

6

BALANCER WHEEL (15G) | M,A; (0~3) 20G FROM 55411-37000 This part replaces 55411-11000.

55411-26G00

$7.73

7

BALANCER WHEEL (30G) | M,A; (0~3) 30G FROM 55412-37000 This part replaces 55412-11000.

55413-41F00

$7.50

8

TIRE, REAR | M,A; 4.00-18

65100-31013

Unavailable

9

TUBE, INNER | M,A; 4.00-18 This part replaces 65200-15011.

65200-49015

Unavailable

10

IN TUBE PROTECT | M,A; 25x18 This part replaces 65261-15010.

55261-26F10

$4.39

11

RIM, REAR | M,A; 2.158x18

65311-37021

Unavailable

12

SPOKE SET, RR W | M,A This part replaces 65300-37811.

65300-45811

Unavailable

13

BALANCER WHEEL (15G) | M,A; (0~3) 20G FROM 55411-37000 This part replaces 55411-11000.

55411-26G00

$7.73

14

BALANCER WHEEL (30G) | M,A; (0~3) 30G FROM 55412-37000 This part replaces 55412-11000.

55413-41F00

$7.50
