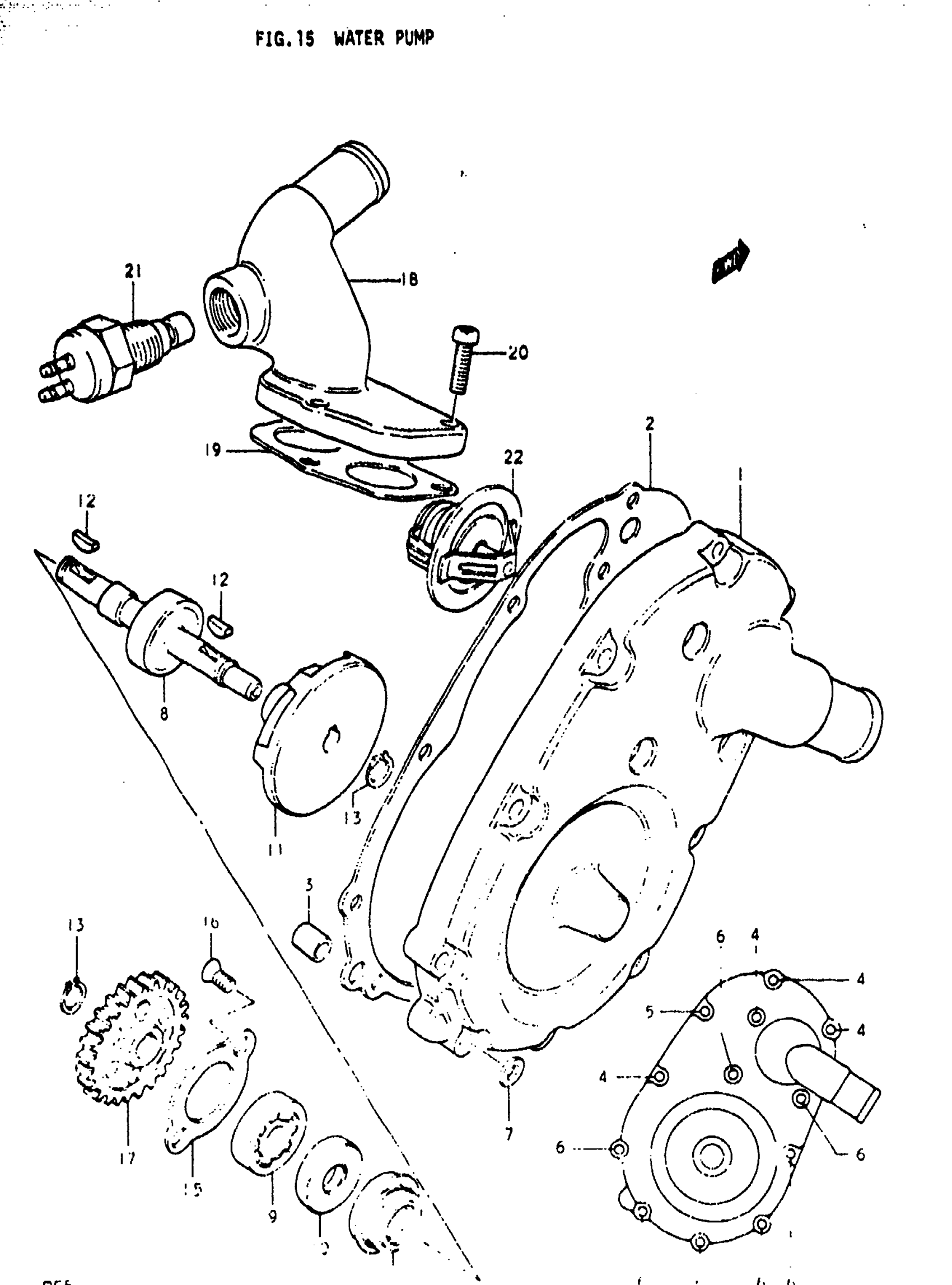

Suzuki RE5 (1976) WATER PUMP Diagram

#

Description
Price

1

CASE, WATER PUMP | M,A

17410-37000

Unavailable

2

GASKET, CASE | M,A

17431-37001

Unavailable

3

PIN | M,A

04211-09129

$1.65

4

BOLT | M,A; 6x175

09106-06022

Unavailable

5

BOLT | M,A; 6x105

09106-06017

Unavailable

6

BOLT | M,A; 6x25 This part replaces 09106-06003.

07130-06257

$3.16

7

WASHER | M,A

09164-06006

$2.61

8

WATER PUMP SHAFT SET | M,A

17400-37810

Unavailable

9

BEARING | M,A

08110-62000

$14.53

10

OIL SEAL | M,A

09283-13001

Unavailable

11

IMPELLER, WATER PUMP | M,A

17466-37002

Unavailable

12

KEY | M,A

08341-31039

$1.89

13

CIRCLIP | M,A This part replaces 08331-31108.

08331-31109

$1.78

14

SEAL UNIT, WATER PUMP | M,A

17470-31010

Unavailable

15

HOLDER, SHAFT BEARING | M,A

17491-37000

Unavailable

16

SCREW | M,A This part replaces 02122-06128.

02122-06127

$1.84

17

GEAR, WATER PUMP DRIVEN | M,A; NT:25

17522-37030

Unavailable

18

CONNECTOR | M,A

17871-37003

Unavailable

19

GASKET | M,A

17872-37000

Unavailable

20

SCREW | M,A This part replaces 02112-06208.

02112-06207

$1.78

21

THERMOSWITCH, COOLING FAN | M,A

17680-37020

Unavailable

22

THERMOSTAT, WATER | M,A

17670-37020

Unavailable
