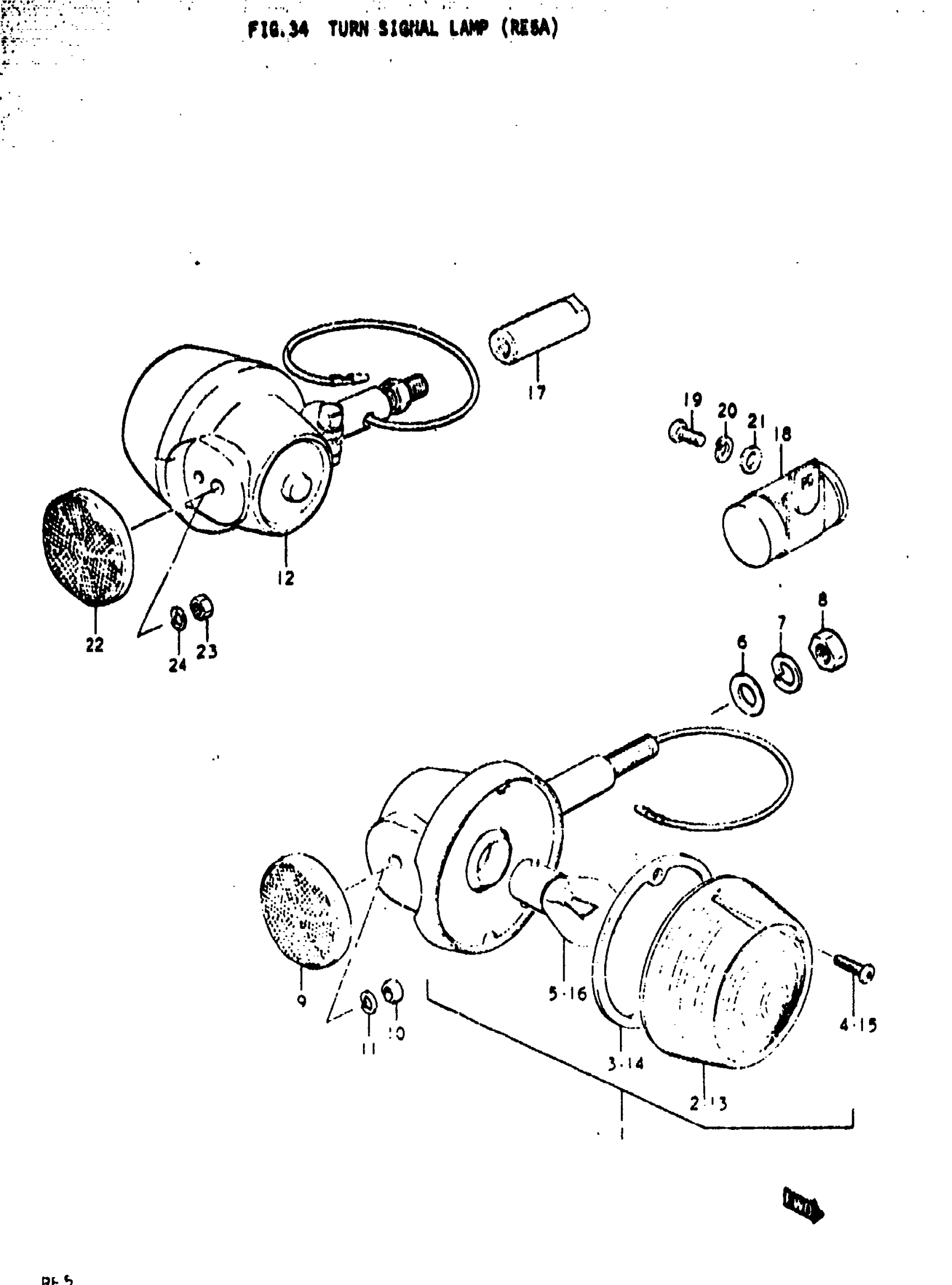

Suzuki RE5 (1976) TURN SIGNAL LAMP (RE5A) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | Includes Item(s) 2 - 5

35601-31660

Unavailable

2

LENS | AMBER

35612-31010

Unavailable

3

GASKET

35613-03610

$13.34

4

SCREW This part replaces 02111-03168.

02112-0316B

$2.35

5

BULB | 12V, 23W

09471-12006

$3.98

6

WASHER This part replaces 08322-21108.

08322-01107

$2.15

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

8

NUT This part replaces 08312-11108.

08310-00107

$2.19

9

REFLEX REFLECTOR FRONT | AMBER This part replaces 35950-15010.

35950-49080

$17.24

10

NUT This part replaces 08311-11058.

08310-00057

$1.84

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

NO DESCRIPTION AVAILABLE | Includes Item(s) 13 - 16 This part replaces 35603-31010.

35603-31010-999

Unavailable

13

LENS | AMBER

35612-31010

Unavailable

14

GASKET

35613-03610

$13.34

15

SCREW This part replaces 02111-03168.

02112-0316B

$2.35

16

BULB | 12V, 23W

09471-12006

$3.98

17

BOSS, REAR TURN SIGNAL LAMP

41542-37000

Unavailable

18

RELAY ASSY, TURNSIGNAL This part replaces 38610-36610.

38610-31X50

$80.15

19

SCREW This part replaces 02112-06208.

02112-06207

$1.78

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

REFLEX REFLECTOR, REAR | RED

35970-15010

Unavailable

23

NUT This part replaces 08311-11058.

08310-00057

$1.84

24

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
