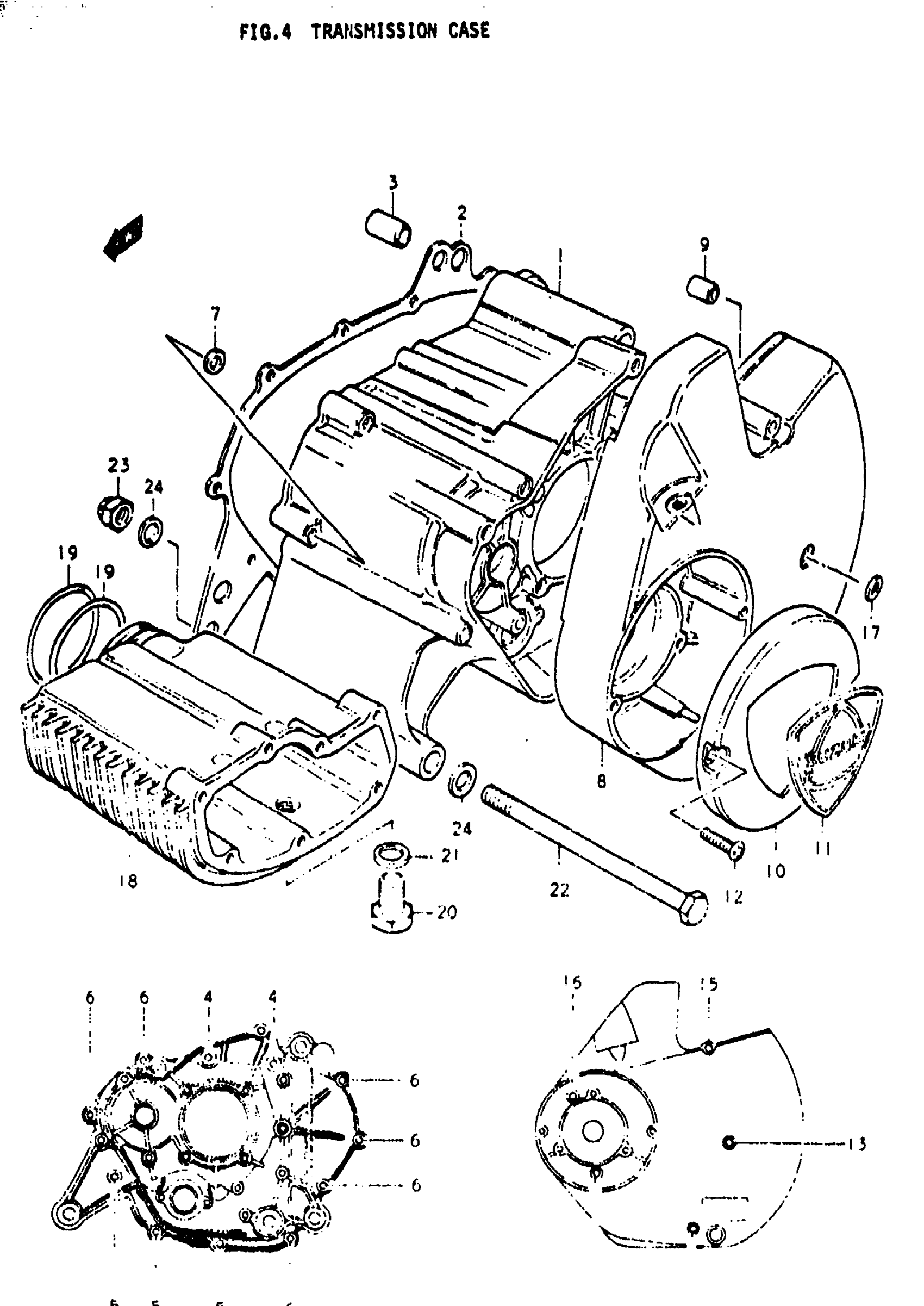

Suzuki RE5 (1976) TRANSMISSION CASE Diagram

#

Description
Price

1

TRANSMISSION CASE | M; TO 11321-37002M; WITH 09263-16012M; WITH 09284-16002 This part replaces 11321-37001.

11321-37002

Unavailable

1

TRANSMISSION CASE | A

11321-37002

Unavailable

2

GASKET | M,A

11481-37001

Unavailable

3

PIN | M,A This part replaces 09206-13001.

04211-13189

$2.19

4

BOLT | M,A; 6x115

09106-06018

Unavailable

5

BOLT | M,A; 6x90

09106-06016

Unavailable

6

BOLT | M,A; 6x45

09106-06008

Unavailable

7

WASHER | M,A

09164-06006

$2.61

8

COVER, ENGINE SPROCKET | M; TO 11361-37002 This part replaces 11361-37001.

11361-37002

Unavailable

8

COVER, ENGINE SPROCKET | A

11361-37002

Unavailable

9

PIN | M,A

04211-09129

$1.65

10

CAP, CLUTCH RELEASE ADJUSTING | M,A

11387-37001

Unavailable

11

EMBLEM | M,A

68235-37001

Unavailable

12

SCREW | M,A This part replaces 02111-05127.

02112-05127

$1.97

13

BOLT | M,A; 6x65

09106-06012

Unavailable

14

BOLT | M,A; 6x60

09106-06011

Unavailable

15

BOLT | M,A; 6x55 This part replaces 09106-06010.

07130-0655B

$4.10

16

BOLT | M,A; 6x40

09106-06007

Unavailable

17

WASHER | M,A

09164-06006

$2.61

18

CASE, ENGINE OIL | M,A

11511-37000

Unavailable

19

O RING | M,A

09280-44004

Unavailable

19

O RING | M,A

09280-52003

Unavailable

20

PLUG, DRAIN | M,A; FROM 09247-14010 This part replaces 09247-14007.

09247-14025

$2.79

21

GASKET | M,A

09168-14004

$1.83

22

BOLT | M,A This part replaces 09100-10099.

09116-10032

$5.77

23

NUT | M,A; FROM 09159-10001

09159-10011

$3.23

24

WASHER | M,A This part replaces 08322-11108.

08322-01107

$2.15
