Partiron

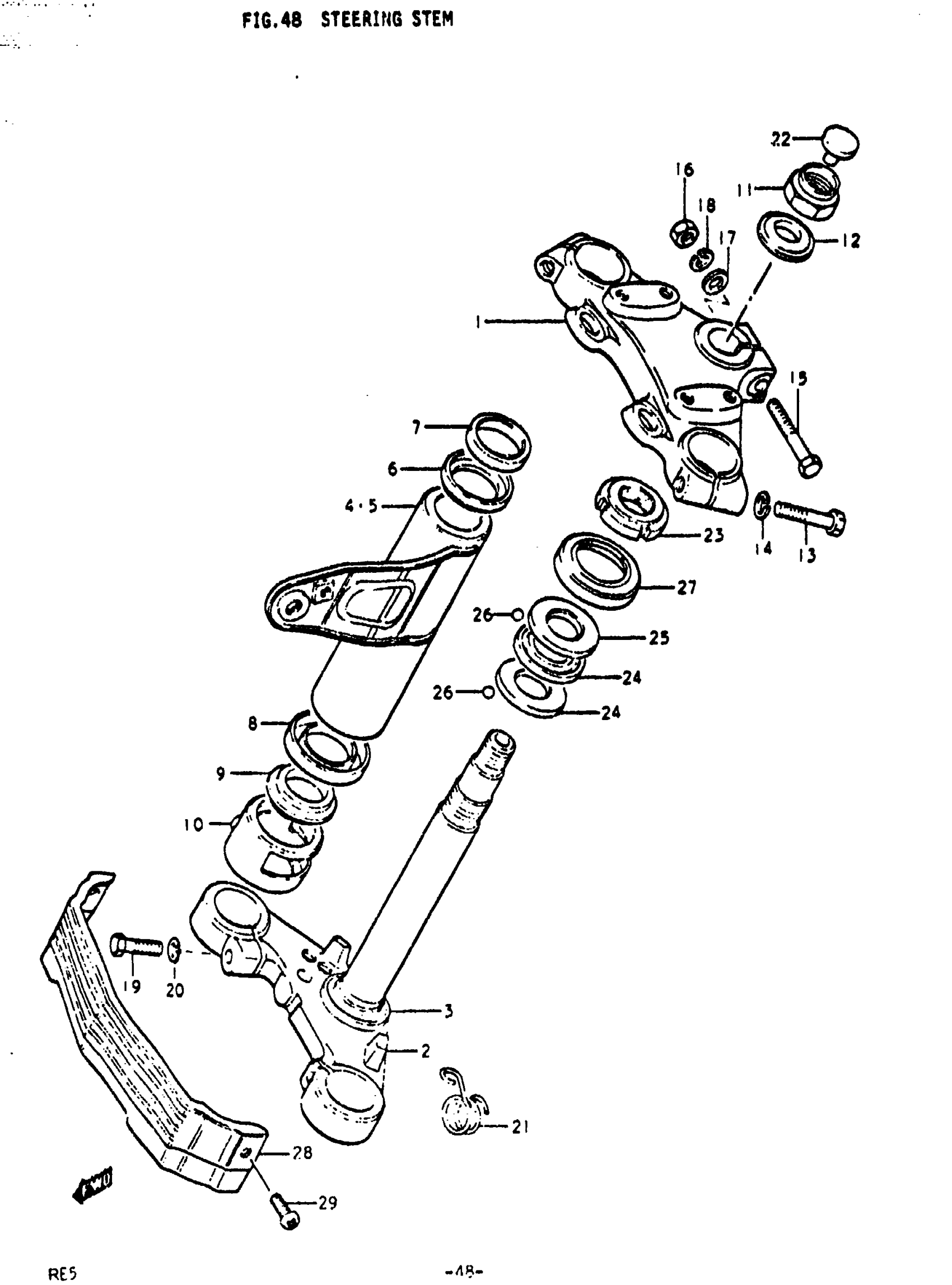

Suzuki RE5 (1976) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD | M,A

51311-31700-019

Unavailable

2

STEERING STEM | M,A; TO 51410-15210; Includes Item(s) 3

51410-34110

Unavailable

3

OUTER RACE | M,A

51621-33001

$16.25

4

BRACKET, HEADLAMP RH | M

51530-37000

Unavailable

4

BRACKET, HEADLAMP RH | A

51530-31201

Unavailable

5

BRACKET, HEADLAMP LH | M

51540-37000

Unavailable

5

BRACKET, HEADLAMP LH | A

51540-31201

Unavailable

6

CAP, HEADLAMP BRACKET | M,A

51555-31000

Unavailable

7

CUSHION, UPPER | M,A

51556-31000

Unavailable

8

SEAT, HEADLAMP BRACKET | A

51551-37000

Unavailable

8

SEAT, HEADLAMP BRACKET | A

51551-31000

Unavailable

9

CUSHION, LOWER | M,A

51553-31000

Unavailable

10

COVER, BRACKET | M,A

51570-37000

Unavailable

11

NUT | M,A This part replaces 51353-31700.

51353-31710

Unavailable

12

WASHER, CENTER | M,A

51356-31700

Unavailable

13

BOLT | M,A This part replaces 01121-10407.

01500-10407

$3.55

14

LOCK WASHER | M,A This part replaces 08321-21108.

08321-01107

$1.84

15

BOLT | M,A This part replaces 01122-08508.

01500-08507

$3.05

16

NUT | M,A This part replaces 08312-12087.

08310-00087

$2.13

17

WASHER | M,A This part replaces 08322-11088.

08322-01087

$2.13

18

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13

19

BOLT | M,A This part replaces 01122-10408.

01500-10407

$3.55

20

LOCK WASHER | M,A This part replaces 08321-21108.

08321-01107

$1.84

21

CLAMP, SPEEDOMETER CABLE | M,A

51452-31000

Unavailable

22

CAP, STEERING | M,A

09250-08005

$2.45

23

NUT, STEERING STEM | M,A

51631-28000

$17.37

24

INNER RACE | M,A

51611-33002

$13.81

25

OUTER RACE | M,A

51621-30001

Unavailable

26

STEEL BALL | M,A

06111-08003

$1.49

27

DUST SEAL | M,A

51643-30000

Unavailable

28

COVER, FRONT FORK | M,A

51871-37000

Unavailable

29

SCREW | M,A This part replaces 02141-05067.

09125-05117

$2.72
