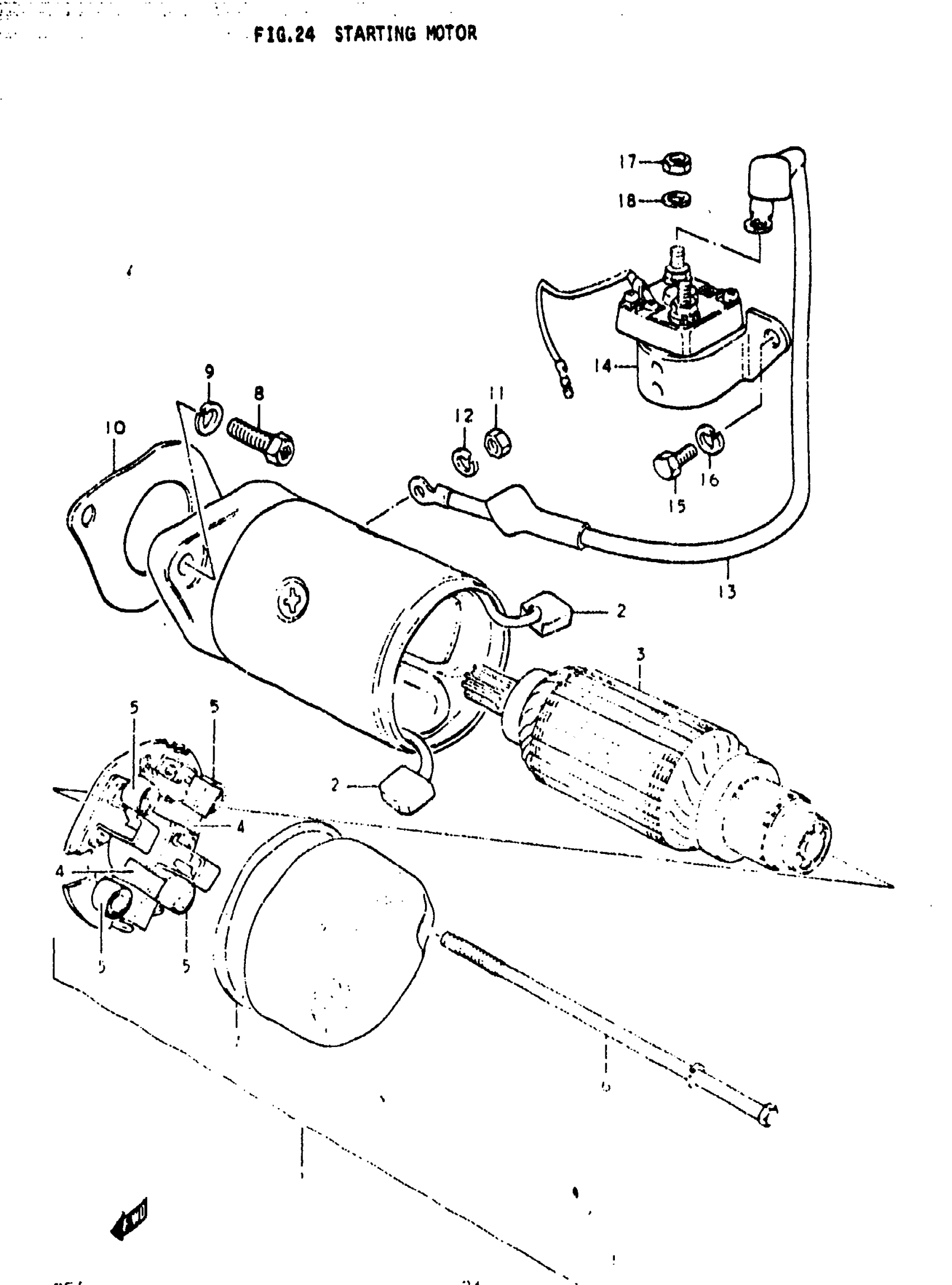

Suzuki RE5 (1976) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | M,A; Includes Item(s) 2 - 7

31100-37010

Unavailable

2

BRUSH | M,A

31131-37010

Unavailable

3

ARMATURE | M,A

31310-37010

Unavailable

4

BRUSH | M,A

31132-37010

Unavailable

5

SPRING | M,A

31135-37010

Unavailable

6

BOLT | M,A

31281-37010

Unavailable

7

GASKET | M,A

31264-37010

Unavailable

8

BOLT | M,A This part replaces 01122-08258.

01500-08257

$2.50

9

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13

10

GASKET | M,A

31151-37000

Unavailable

11

.NUT | M,A This part replaces 08311-11068.

08310-00067

$2.13

12

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

13

LEAD WIRE, STARTING MOTOR | M,A

33810-37000

Unavailable

14

RELAY ASSY,STAR | M,A This part replaces 31800-37020.

31800-37021

$71.42

15

BOLT | M,A

09100-06011

$1.67

16

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

17

.NUT | M,A This part replaces 08311-31068.

08310-00067

$2.13

18

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13
