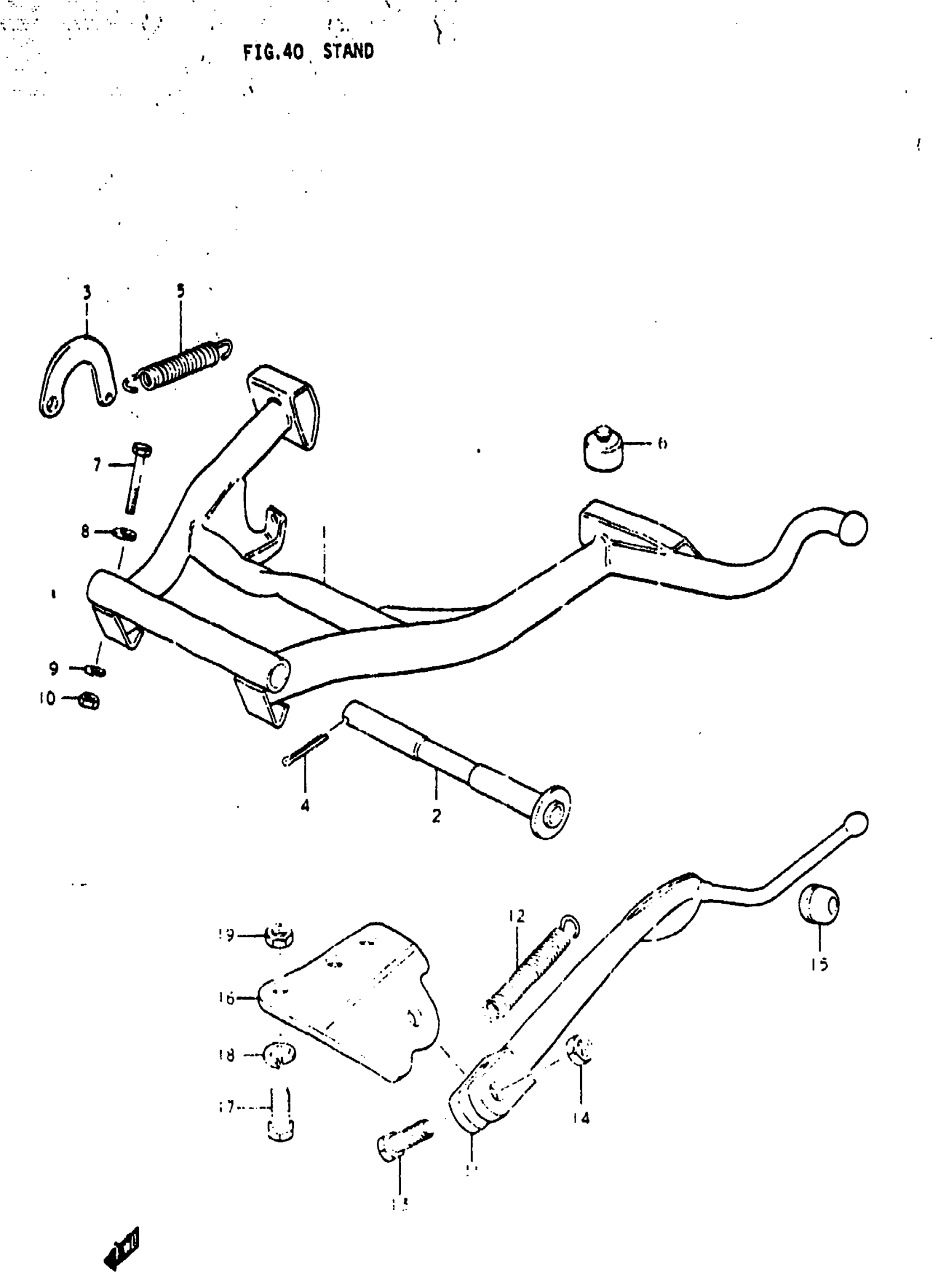

Suzuki RE5 (1976) STAND Diagram

#

Description
Price

1

STAND, CENTER | M; L:283 TO 42100-37001

42100-37000

Unavailable

1

STAND, CENTER | A; L:278

42100-37001

Unavailable

2

SPACER | M,A

42210-37000

Unavailable

3

HOOK, SPRING | M,A

42251-37000

Unavailable

4

PIN | M,A This part replaces 04111-30308.

04111-3030A

$1.49

5

SPRING | M,A This part replaces 09443-16005.

09443-16005-XC0

Unavailable

6

CUSHION | M,A

09321-10001

$2.61

7

BOLT | M,A This part replaces 01112-06408.

01500-0640B

$2.62

8

WASHER | M,A This part replaces 08322-21068.

08322-01067

$2.13

9

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

10

.NUT | M,A This part replaces 08311-11068.

08310-00067

$2.13

11

STAND, PROP | M,A

42310-37000

Unavailable

12

SPRING | M,A This part replaces 09443-14005.

09443-14017

$3.04

13

BOLT | M,A

09100-10067

$2.61

14

NUT | M,A This part replaces 08312-31108.

08310-00107

$2.19

15

CUSHION | M,A

09320-07001

$2.92

16

BRACKET | M,A

42330-37000

Unavailable

17

BOLT | M,A This part replaces 09100-10007.

09100-10287

$3.48

18

LOCK WASHER | M,A This part replaces 08321-21108.

08321-01107

$1.84

19

NUT | M,A This part replaces 08312-31108.

08310-00107

$2.19
