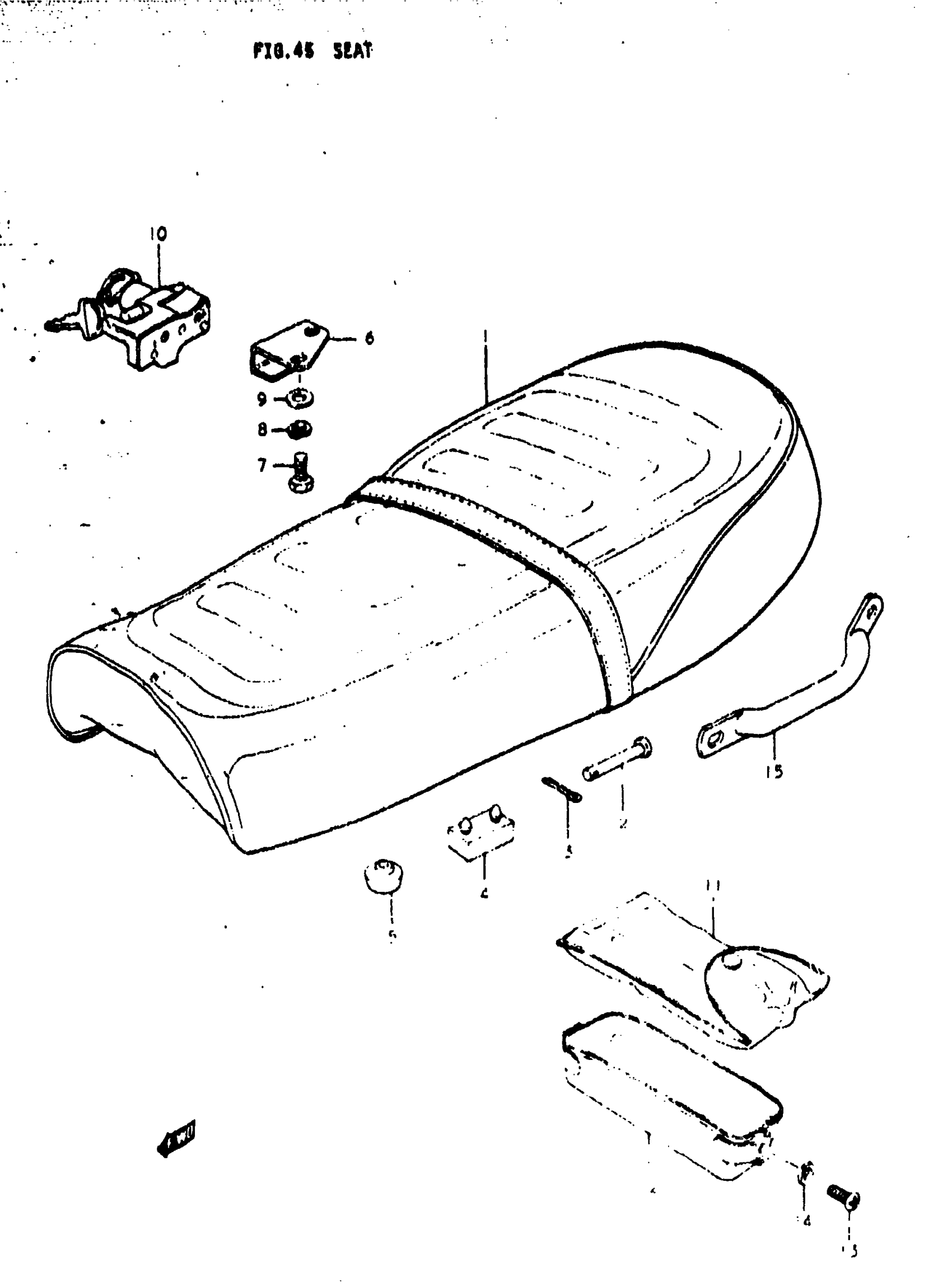

Suzuki RE5 (1976) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | M,A; FROM 45100-37000-403 This part replaces 45100-37001-403.

45100-37001-865

Unavailable

2

PIN | M,A

09200-06018

$2.06

3

.COTTER PIN | M,A This part replaces 04111-20158.

04111-2015A

$1.49

4

CUSHION | M,A

09321-08006

$2.90

5

CUSHION | M,A

09321-10001

$2.61

6

PLATE, CLAMP GUIDE | M,A

45213-36200

Unavailable

7

BOLT | M,A This part replaces 01112-06128.

01500-06127

$1.97

8

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER | M,A This part replaces 08322-21068.

08322-01067

$2.13

10

LOCK ASSY, SEAT | M,A; FROM 95700-36811 This part replaces 95700-36811.

95700-49811

Unavailable

11

TOOL ASSY | M,A

09800-00144

Unavailable

12

HOLDER, TOOL | M,A

41550-37000

Unavailable

13

SCREW | M,A This part replaces 02111-06128.

02112-06127

$1.84

14

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

15

GRIP FRAME HAND | M,A This part replaces 41411-37000.

41411-39001

Unavailable
