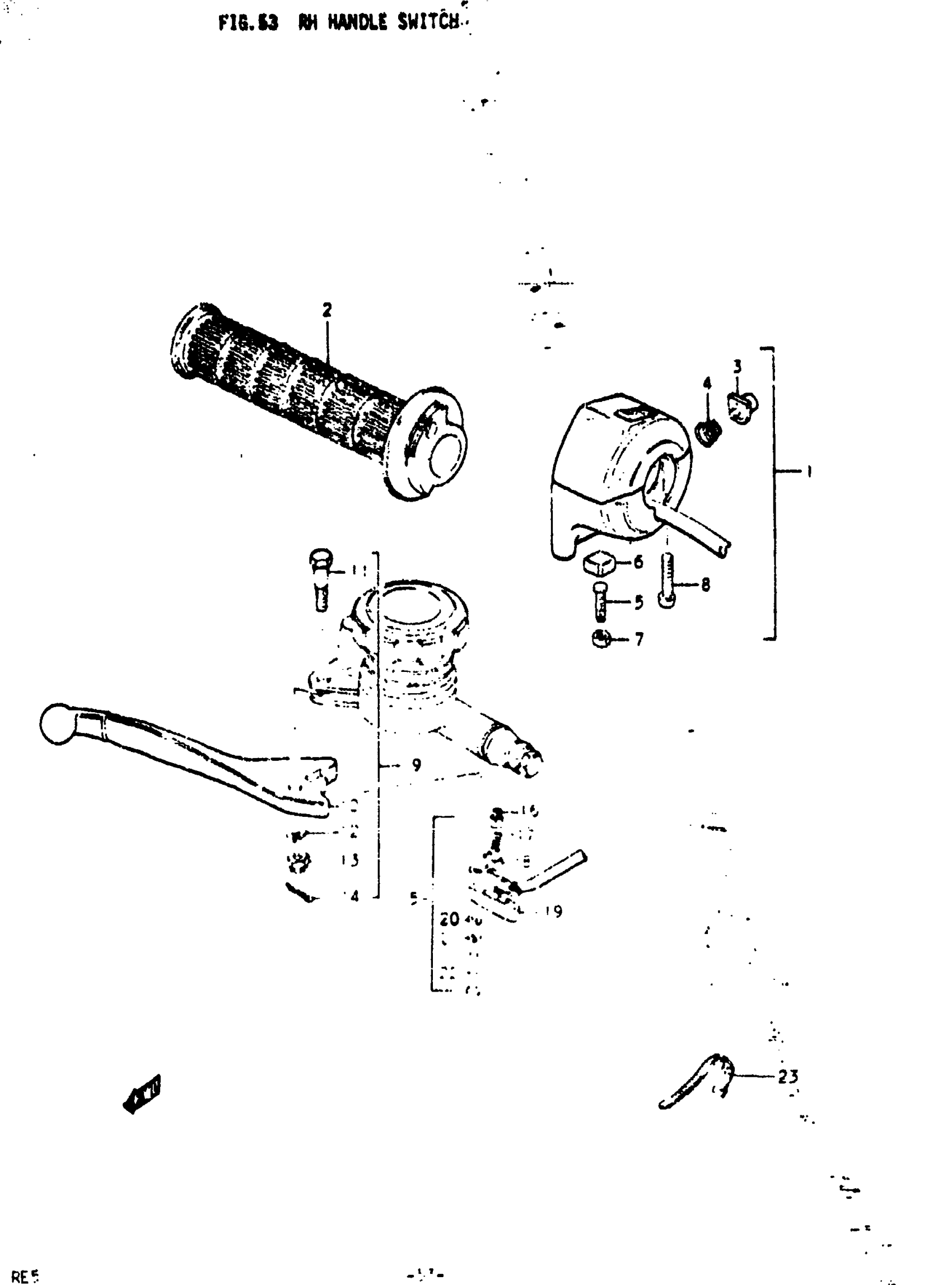

Suzuki RE5 (1976) RH HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | M,A; FROM 57100-34012; Includes Item(s) 2 - 8

57100-37011

Unavailable

2

GRIP, THROTTLE | M,A

57110-33012

Unavailable

3

BUTTON, STARTING | M,A

57370-01311

Unavailable

4

SPRING | M,A

57382-01311

Unavailable

5

BOLT, GRIP ADJUSTER | M,A

57118-37010

Unavailable

6

PIECE, STOPPER | M,A

57131-37010

Unavailable

7

NUT | M,A This part replaces 08311-11058.

08310-00057

$1.84

8

SCREW | M,A This part replaces 02111-05257.

02112-05257

$1.49

9

LEVER ASSY, BRAKE | M,A; FROM 57300-18620; Includes Item(s) 10 - 14 This part replaces 57300-18621.

57300-45010

Unavailable

10

LEVER, BRAKE | M,A This part replaces 57420-18620.

57420-45010

Unavailable

11

BOLT | M,A This part replaces 57431-18620.

57431-18621

$8.28

12

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

13

NUT | M,A

57433-11010

$5.64

14

PIN | M,A This part replaces 04111-16158.

04111-1620A

$1.49

15

SWITCH ASSY, STOP | M,A; Includes Item(s) 16 - 22

57460-33700

$43.37

16

HOLDER | M,A This part replaces 57461-18600.

57465-18601

$4.34

17

HOLDER | M,A This part replaces 57462-18600.

57465-18601

$4.34

18

HOLDER | M,A This part replaces 57463-18600.

57465-18601

$4.34

19

COVER | M,A

57481-33010

$5.84

20

WASHER | M,A This part replaces 08322-21038.

08322-01037

$1.93

21

WASHER,LOCK | M,A This part replaces 08321-21038.

09162-03001

$1.49

22

SCREW | M,A This part replaces 09125-03105.

09125-03105-XC0

$2.23

23

BAND | M,A

09407-12402

$3.04
