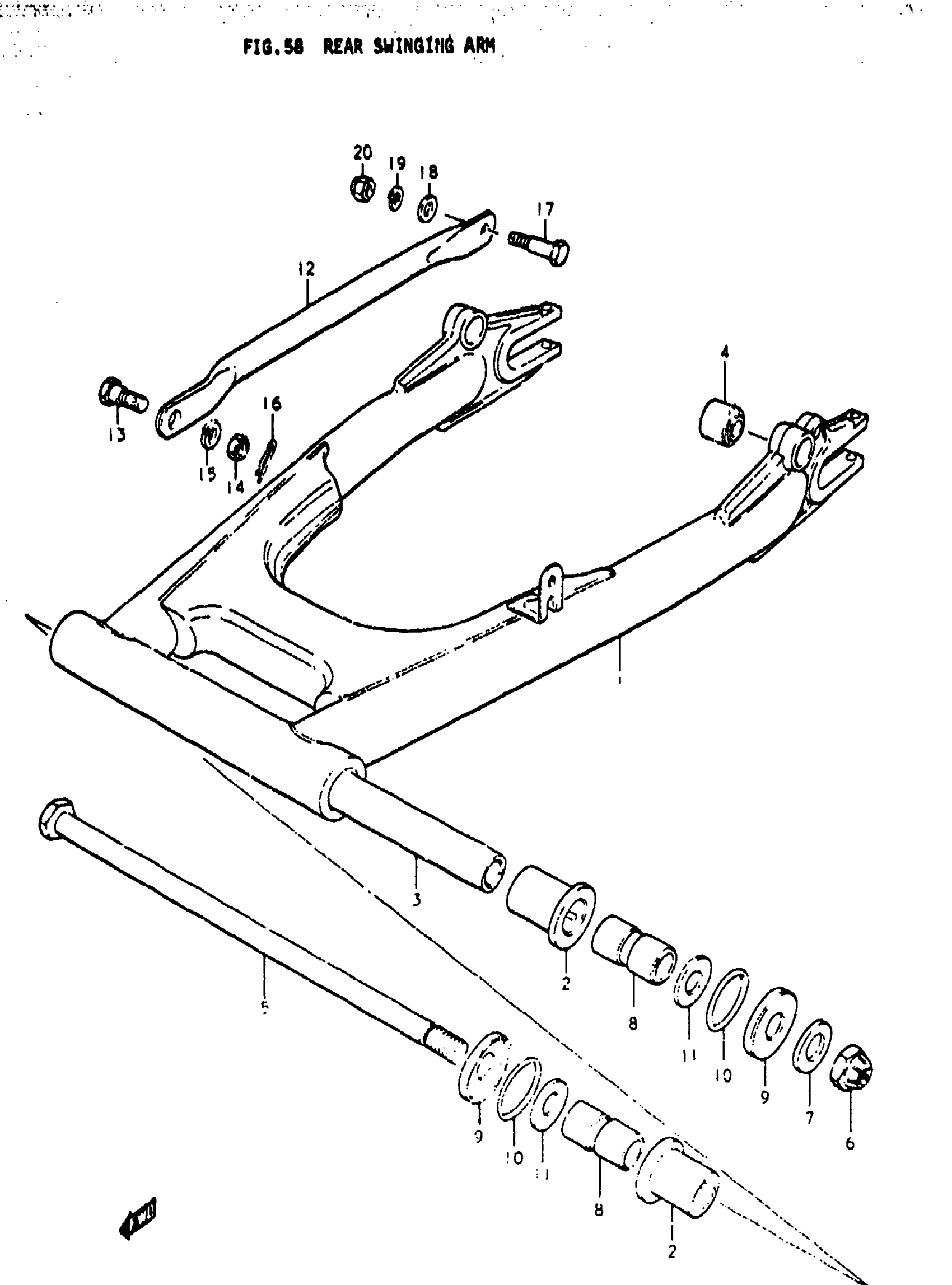

Suzuki RE5 (1976) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | M,A; Includes Item(s) 2 - 4 This part replaces 61100-37810-019.

61100-37812-019

Unavailable

2

BUSHING | M,A This part replaces 09307-22002.

09307-22003

Unavailable

3

SPACER, CENTER | M,A

61280-31000

Unavailable

4

BUSHING, REAR | M,A

09319-10008

$7.40

5

SHAFT,RR SWGARM | M,A This part replaces 61211-31000.

61211-3100V

Unavailable

6

NUT | M,A

09159-14003

Unavailable

7

WASHER | M,A This part replaces 08322-11148.

08322-01147

$1.91

8

SPACER | M,A; FROM 61251-15000

61251-15001

Unavailable

9

COVER | M,A

61262-15000

$93.03

10

.O RING (D:3,ID:29.5) | M,A

09280-30001

$1.72

11

WASHER | M,A

09160-14009

$2.82

12

NO DESCRIPTION AVAILABLE | M,A This part replaces 64311-31001.

64311-31001-13L

Unavailable

13

BOLT | M,A

09111-10010

Unavailable

14

NUT | M,A This part replaces 08312-31108.

08310-00107

$2.19

15

LOCK WASHER | M,A This part replaces 08321-21108.

08321-01107

$1.84

16

CLIP | M,A This part replaces 09385-10001.

09385-10005

$1.56

17

BOLT | M,A

09111-08023

Unavailable

18

WASHER | M,A This part replaces 08322-11128.

08322-01127

$1.84

19

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13

20

NUT | M,A

09159-08020

$1.78
