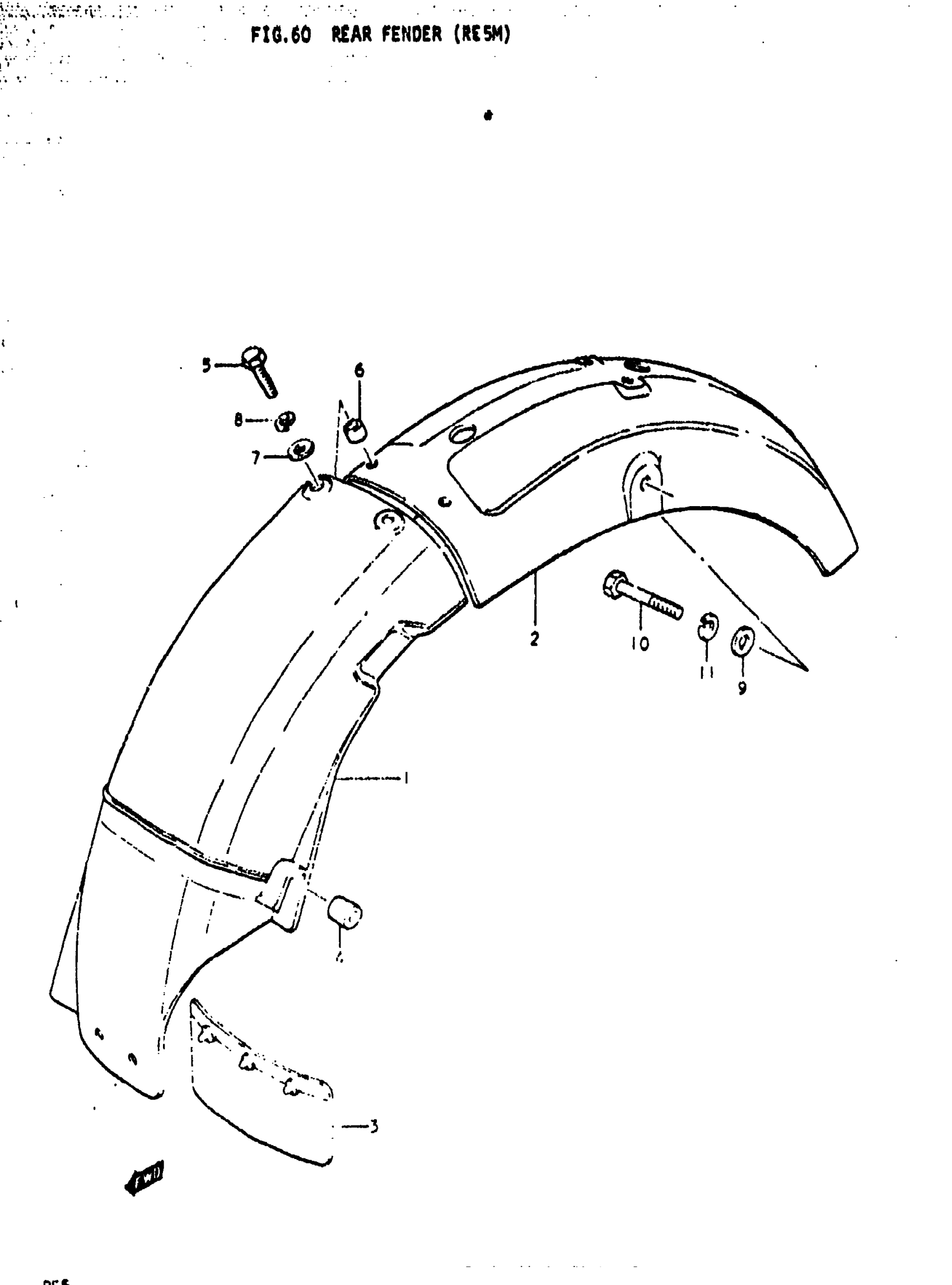

Suzuki RE5 (1976) REAR FENDER (RE5M) Diagram

#

Description
Price

1

BODY RR FENDER, | TO 63112-37000TO 63110~37000 This part replaces 63110-31001.

63112-31002

Unavailable

2

BODY, REAR TENDER REAR | TO 63110~37001 This part replaces 63110-37000.

63110-37001

Unavailable

3

MUD GUARD, REAR TENDER

63411-15101

Unavailable

4

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

5

BOLT This part replaces 01112-06208.

01500-06207

$2.28

6

SPACER

09180-06041

Unavailable

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER This part replaces 08322-21088.

08322-01087

$2.13

10

BOLT This part replaces 01122-08508.

01500-08507

$3.05

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
