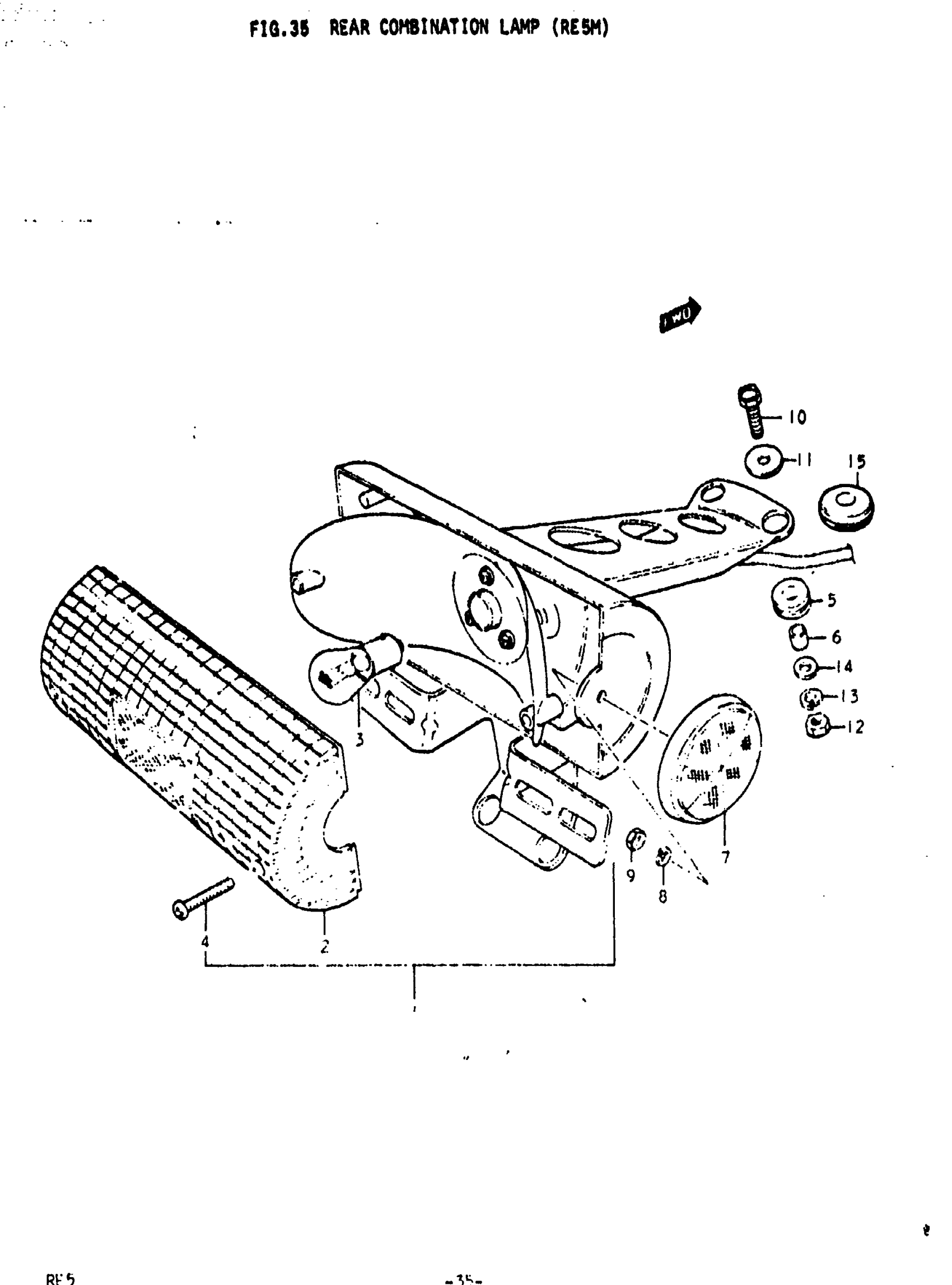

Suzuki RE5 (1976) REAR COMBINATION LAMP (RE5M) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | FROM 35710-37610; Includes Item(s) 2 - 6

35710-37611

Unavailable

2

LENS

35712-37610

Unavailable

3

BULB | 12V, 23/8W

09471-12035

$4.49

4

SCREW

02111-04258

Unavailable

5

CUSHION

35765-15010

Unavailable

6

SPACER This part replaces 35766-15010.

35766-37110

$5.28

7

REFLEX REFLECTOR, REAR | RED

35970-31610

Unavailable

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

NUT This part replaces 08311-11058.

08310-00057

$1.84

10

BOLT This part replaces 01112-06208.

01500-06207

$2.28

11

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

12

.NUT This part replaces 08311-11068.

08310-00067

$2.13

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

GROMMET

09308-07005

Unavailable
