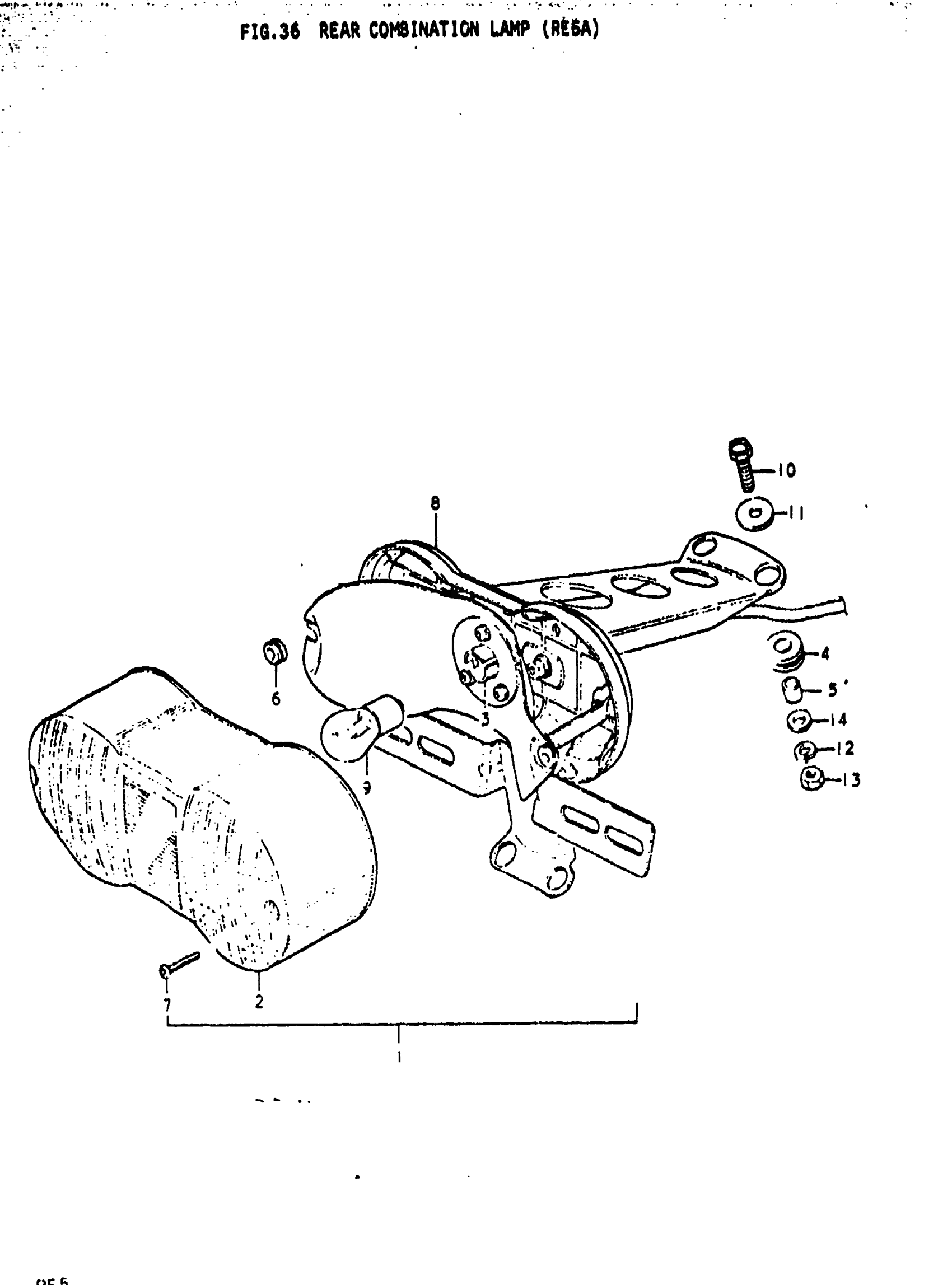

Suzuki RE5 (1976) REAR COMBINATION LAMP (RE5A) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 9

35700-37820

Unavailable

2

TAIL LAMP LENS This part replaces 35712-27660.

35712-27671

Unavailable

3

SOCKET

35718-33110

Unavailable

4

CUSHION | 10x20x6.2

35765-15010

Unavailable

5

SPACER | 7x10x8 This part replaces 35766-15010.

35766-37110

$5.28

6

CUSHION | 4.5x12x6

35765-27691

Unavailable

7

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

8

HOUSING

35715-27691

Unavailable

9

BULB | 12V, 23/8W

09471-12035

$4.49

10

BOLT This part replaces 01112-06208.

01500-06207

$2.28

11

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

.NUT This part replaces 08311-11068.

08310-00067

$2.13

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13
