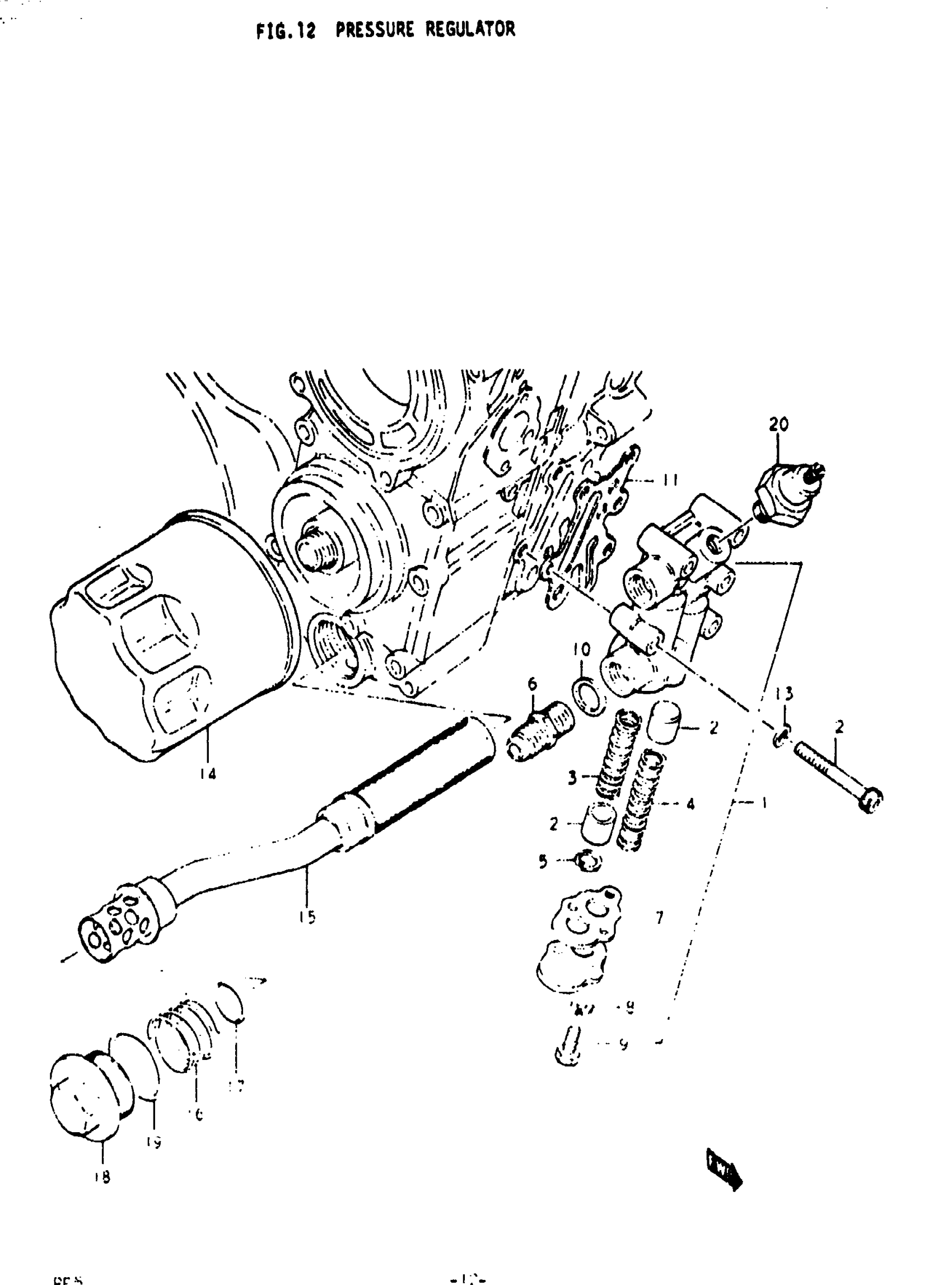

Suzuki RE5 (1976) PRESSURE REGULATOR Diagram

#

Description
Price

1

REGULATOR ASSY, PRESSURE | M,A; Includes Item(s) 2 - 10

16440-37001

Unavailable

2

PLUNGER, CONTROL | M,A

16442-37001

Unavailable

3

SPRING (A) | M,A

09440-12010

Unavailable

4

SPRING (B) | M,A

09440-12012

Unavailable

5

CIRCLIP | M,A

08331-21169

Unavailable

6

UNION, OLL PIPE | M

09362-16003

Unavailable

7

GASKET, CAP | M,A

16483-37000

Unavailable

8

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

9

BOLT, CANISTER | M,A This part replaces 01112-06168.

01500-06167

$1.97

10

GASKET | M,A

09168-14007

Unavailable

11

GASKET, REGULATOR | M,A

16482-37000

Unavailable

12

BOLT | M,A

09106-06007

Unavailable

13

WASHER | M,A

09164-06006

$2.61

14

FILTER, OLL | M,A

16510-37010

Unavailable

15

STRAINER, OLL | M,A

16520-37011

Unavailable

16

SPRING | M,A

09440-27005

Unavailable

17

.O-RING (D:2.4,ID:21.8) | M,A

09280-22001

$1.65

18

PLUG | M,A

09247-30001

Unavailable

19

O RING | M,A This part replaces 09280-32003.

09280-32005

$1.99

20

PRESSURE SWITCH | M,A This part replaces 37820-37010.

37820-80002

$19.90
