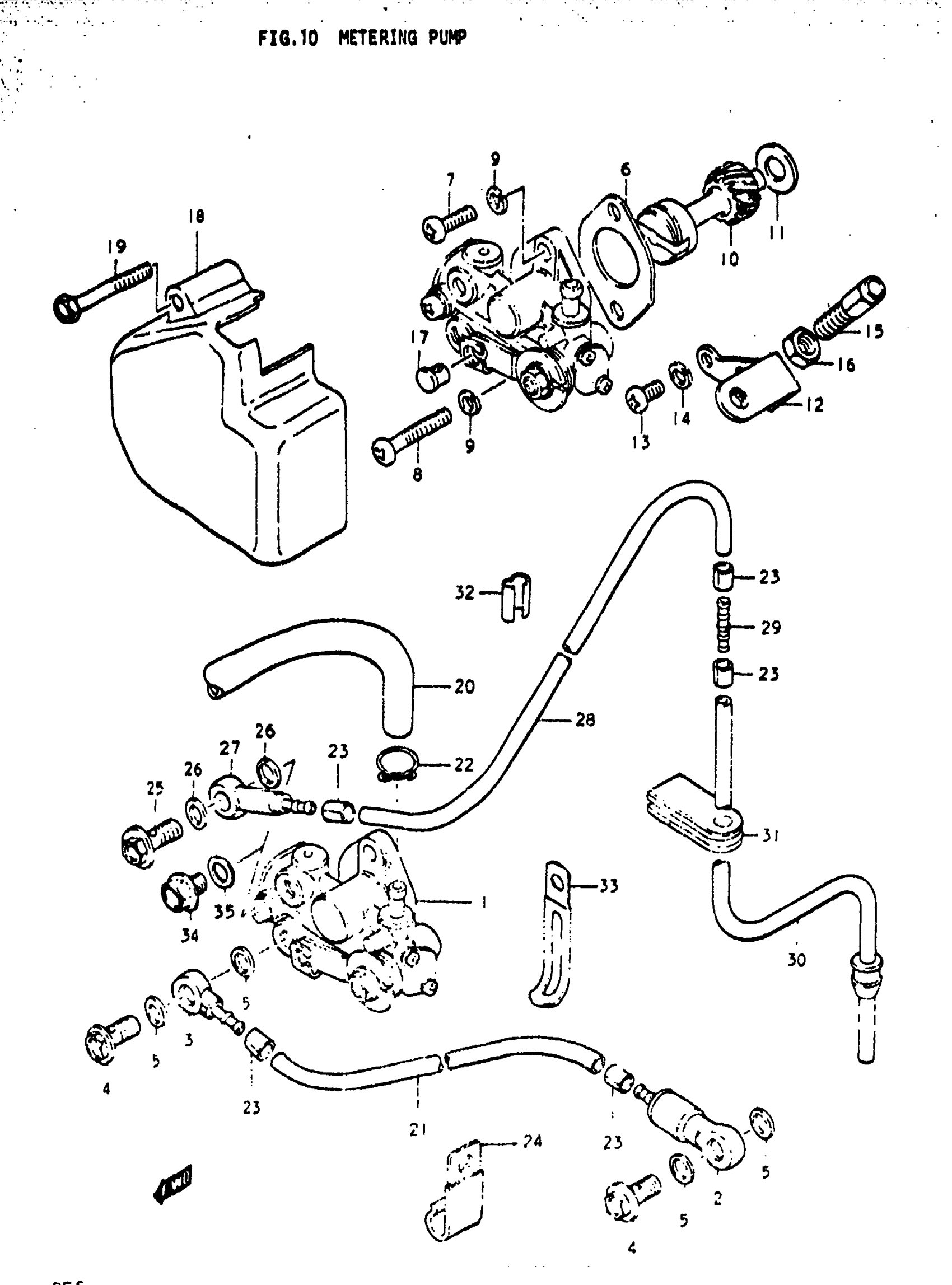

Suzuki RE5 (1976) METERING PUMP Diagram

#

Description
Price

1

METERING PUMP ASSY | M,A; FROM 16100-37012

16100-37013

Unavailable

2

CHECK VALVE | M,A

16710-37011

Unavailable

3

UNION | M,A This part replaces 09363-02001.

09363-02002

$8.23

4

UNION BOLT, CHECK VALVE | M,A

09360-06003

$3.76

5

GASKET | M,A

09168-06004

$1.49

6

GASKET, OIL PUMP | M,A This part replaces 16731-03100.

16731-03101

$2.81

7

SCREW | M,A This part replaces 02111-05207.

02112-05207

$1.97

8

SCREW | M,A This part replaces 02112-05308.

02112-0530A

$2.05

9

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

$1.84

10

SHAFT, PUMP DRIVEN | M,A; NT:16

16331-37000

Unavailable

11

WASHED | M,A

08211-08181

Unavailable

12

HOLDER, CABLE ADJUSTER | M,A

16293-37000

Unavailable

13

SCREW | M,A This part replaces 02111-05127.

02112-05127

$1.97

14

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

$1.84

15

BOLT | M,A

09119-08025

Unavailable

16

NUT | M,A This part replaces 08312-11088.

08310-00087

$2.13

17

TERMINAL, CABLE | M,A This part replaces 16292-03110.

16292-03112

$5.05

18

COVER, METERING PUMP | M,A

11411-37000

Unavailable

19

NO DESCRIPTION AVAILABLE | M,A This part replaces 01131-05358.

01104-05358

Unavailable

19

SCREW | A This part replaces 02111-05357.

02112-05357

$1.49

20

HOSE, NO. 1 | M,A; 5.3x10.5x1100

09343-05114

Unavailable

21

HOSE(2X5X600) | M,A; 2x5x520 This part replaces 09343-02013.

09352-20504-600

$6.70

22

CLIP | M,A

09401-10401

$1.49

23

CLIP | M,AM,A

09401-04401

$2.06

24

CLAMP | M,A This part replaces 09403-09302.

09404-08420

$3.16

25

UNION BOLT | M

09360-06003

$3.76

26

GASKET | M

09168-06003

Unavailable

27

CHECK VALVE | M

16710-35010

Unavailable

28

HOSE, CHAIN OLLER | M; 2x5x720

09343-02015

Unavailable

29

JOINT | M

09364-02001

Unavailable

30

HOSE, DRIVE CHAIN OIL | M

27630-37000

Unavailable

31

GROMMET | M

09309-05007

Unavailable

32

CLIP | M

09408-00001

Unavailable

33

CLAMP | M,A This part replaces 09404-06402.

09404-06039

$1.74

34

BOLT | M,A

09360-06007

$2.30

35

GASKET | M,A

09168-06003

Unavailable
