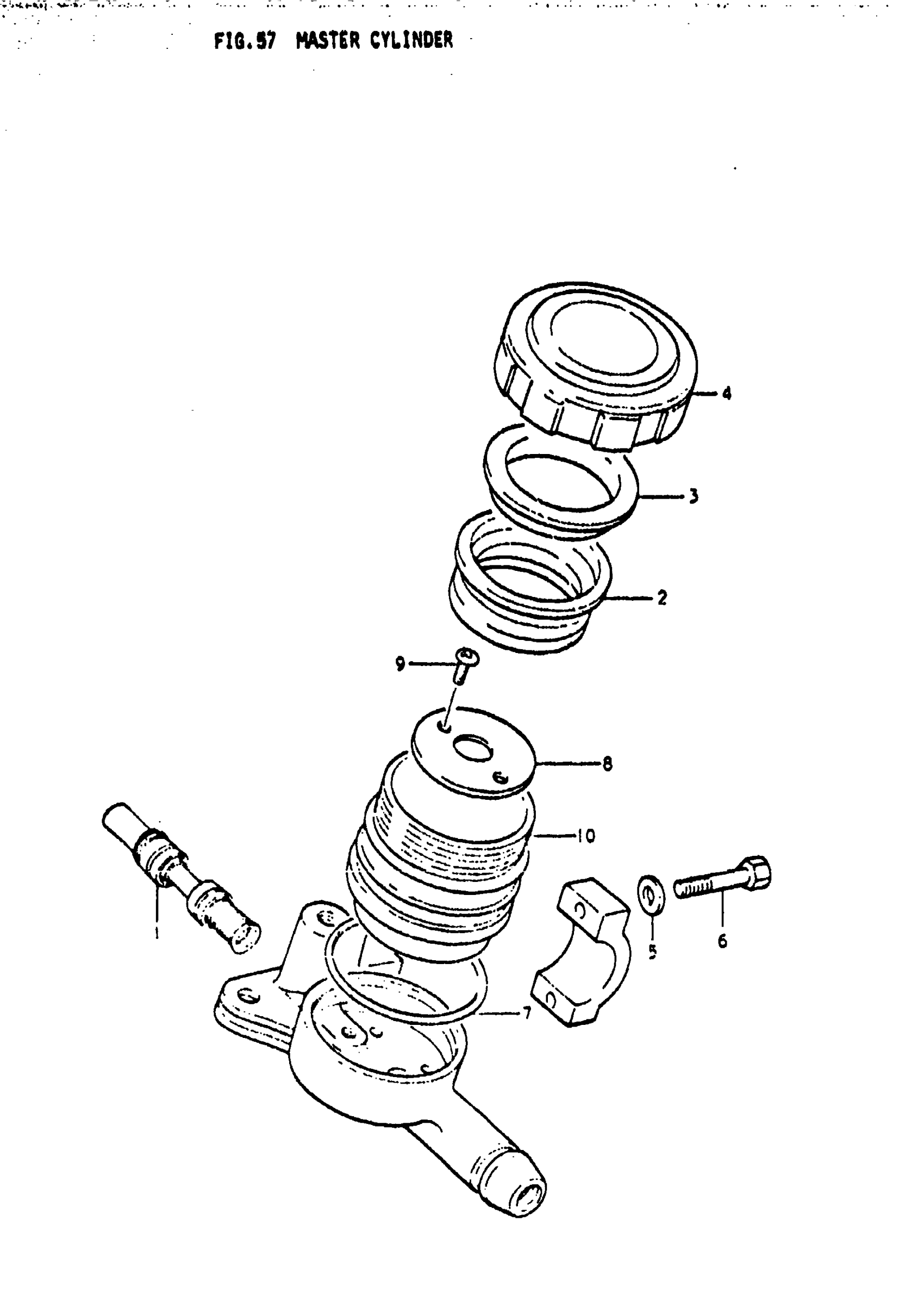

Find the part on the Master Cylinder diagram for your 1976 Suzuki RE5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki RE5 Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE | M,A; FROM 59600-31621; Includes Item(s) 1 - 10 This part replaces 59600-31622.

59600-316V0

1
Out of stock

1

PISTON & CUP SET | M,A This part replaces 59600-31827.

59600-45811

1
Out of stock

2

DIAPHRAGM | M,A This part replaces 59667-18440.

59667-18441

1
Out of stock

3

PLATE, DIAPHRAGM | M,A

59668-18441

1
Out of stock

4

CAP | M,A; FROM 59669-33601 This part replaces 59669-33602.

59669-07D00

1
Out of stock

5

WASHER | M,A This part replaces 08322-21068.

08322-01067

2
Out of stock

6

BOLT | M,A This part replaces 01112-06258.

01500-06257

2
Out of stock

7

O RING | M,A

59686-33600

1
Out of stock

8

PLATE, RESERVOIR | M,A This part replaces 59685-33600.

59685-33601

1
Out of stock

9

SCREW | M,A This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock

10

RESERVIOR | M,A This part replaces 59687-33603.

59687-45000

1
Out of stock
