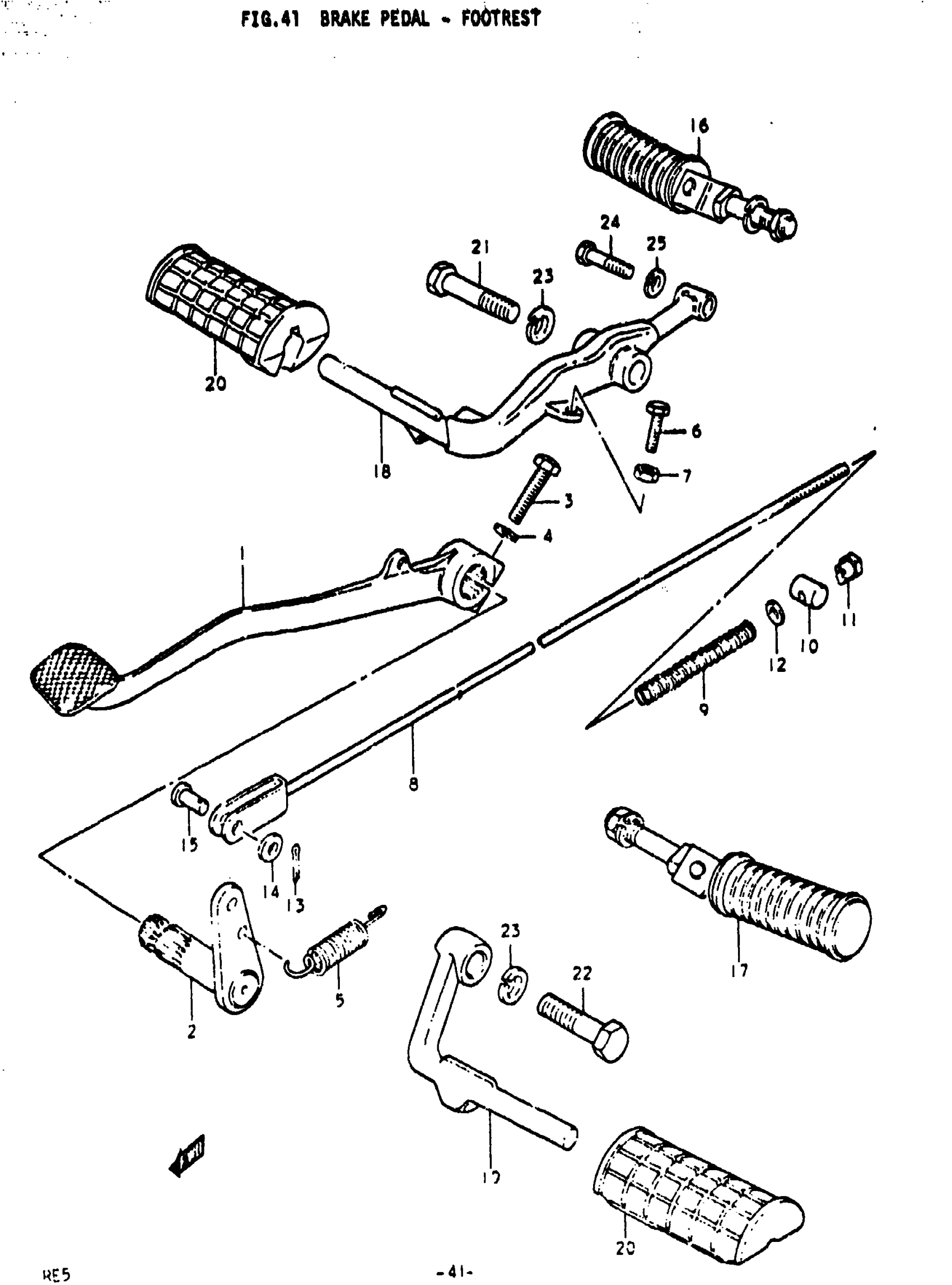

Suzuki RE5 (1976) BRAKE PEDAL - FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE | M,A

43110-37000

Unavailable

2

ARM, ROD | M,A

43120-37000

Unavailable

3

BOLT | M,A This part replaces 01122-08308.

01500-08307

$2.80

4

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$1.83

5

SPRING | M,A

09443-14003

Unavailable

6

BOLT | M,A

09100-06009

$1.79

7

.NUT | M,A This part replaces 08311-11068.

08310-00067

$1.83

8

ROD ASSY, REAR BRAKE | M,A; Includes Item(s) 9 - 15

43300-37000

Unavailable

9

SPRING | M,A

09440-09004

$2.06

10

.PIN (13X18) | M,A This part replaces 09209-13003.

09209-13018

$3.13

11

.NUT | M,A This part replaces 09150-06001.

09150-06010

$2.80

12

WASHER | M,A This part replaces 08322-21058.

08322-01057

$1.86

13

COTTER PIN | M,A This part replaces 04111-20208.

04111-2020A

$1.22

14

WASHER | M,A This part replaces 08322-21068.

08322-01067

$1.86

15

PIN | M,A

09200-06013

$2.05

16

FOOTREST, PILLION RH | M,A

43600-37000

Unavailable

17

FOOTREST, PILLION LH | M,A

43700-37000

Unavailable

18

FOOTREST, BAR, FRONT RH | M,A

43510-37000

Unavailable

19

FOOTREST BAR, FRONT LH | M,A

43521-31200

Unavailable

20

RUBBER, FRONT FOOTREST | M,A

43551-36000

$22.68

21

NO DESCRIPTION AVAILABLE | M,A This part replaces 01221-12607.

01204-12607

Unavailable

22

BOLT | M,A

09104-12101

Unavailable

23

LOCK WASHER | M,A This part replaces 08321-21128.

08321-01127

$2.07

24

BOLT | M,A This part replaces 01221-08357.

01204-08357

$2.10

25

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$1.83
