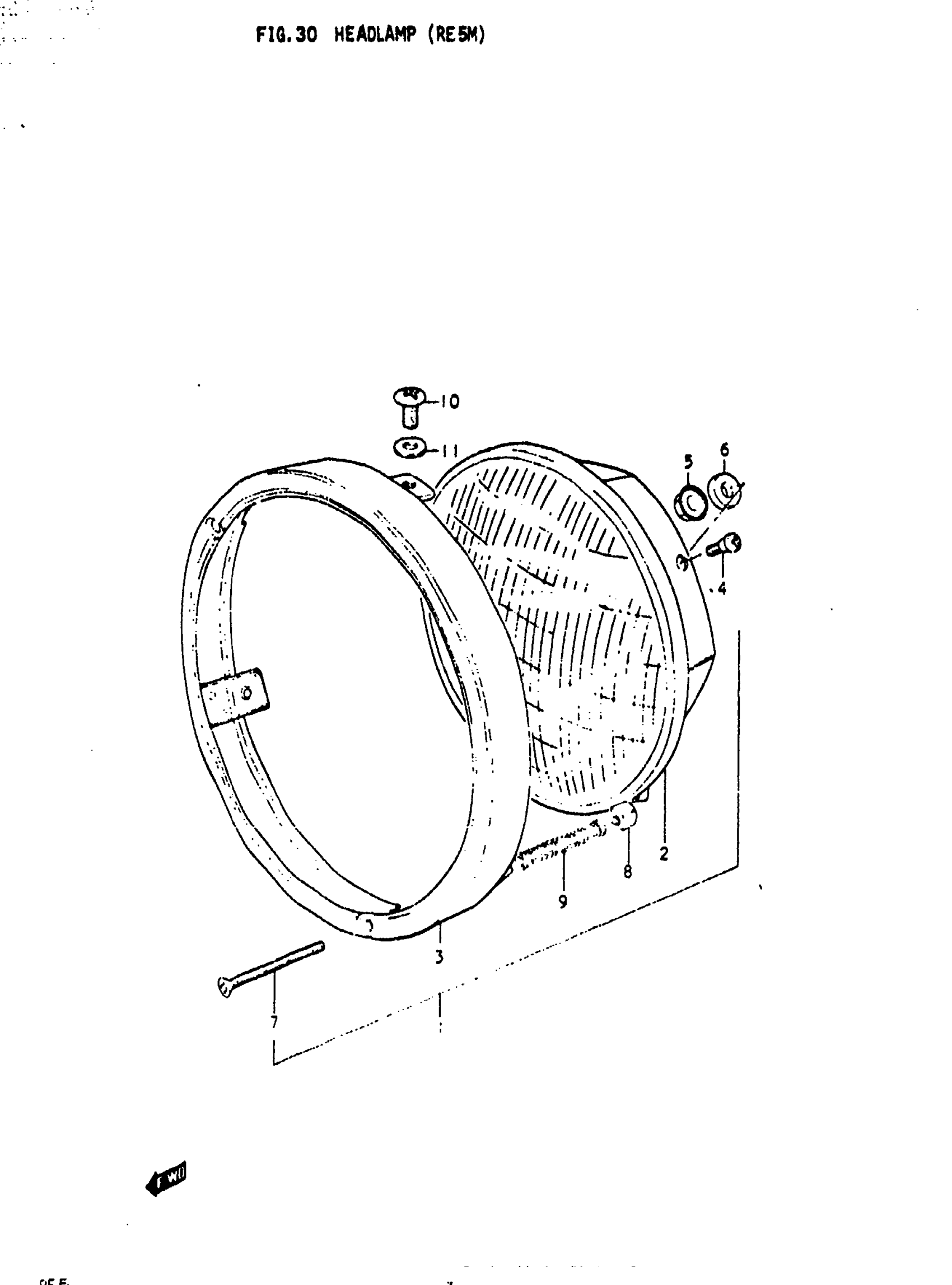

Suzuki RE5 (1976) HEADLAMP (RE5M) Diagram

#

Description
Price

1

HEADLAMP ASSY | FROM 35100-37610; Includes Item(s) 2 - 9

35100-37611

Unavailable

2

UNIT | 12V, 50/40W

35121-37610

Unavailable

3

RIM | FROM 35111-37610

35111-37611

Unavailable

4

SCREW,HEAD LAMP | FROM 35136-37610 This part replaces 35136-25611.

35136-35400

$4.58

5

NUT | FROM 35135-37610 This part replaces 35135-25611.

08316-1005A

$2.19

6

SPACER

35137-37610

Unavailable

7

SCREW

35151-37610

Unavailable

8

NUT

35155-37610

Unavailable

9

SPRING

35154-37610

Unavailable

10

SCREW

02143-05127

Unavailable

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13
