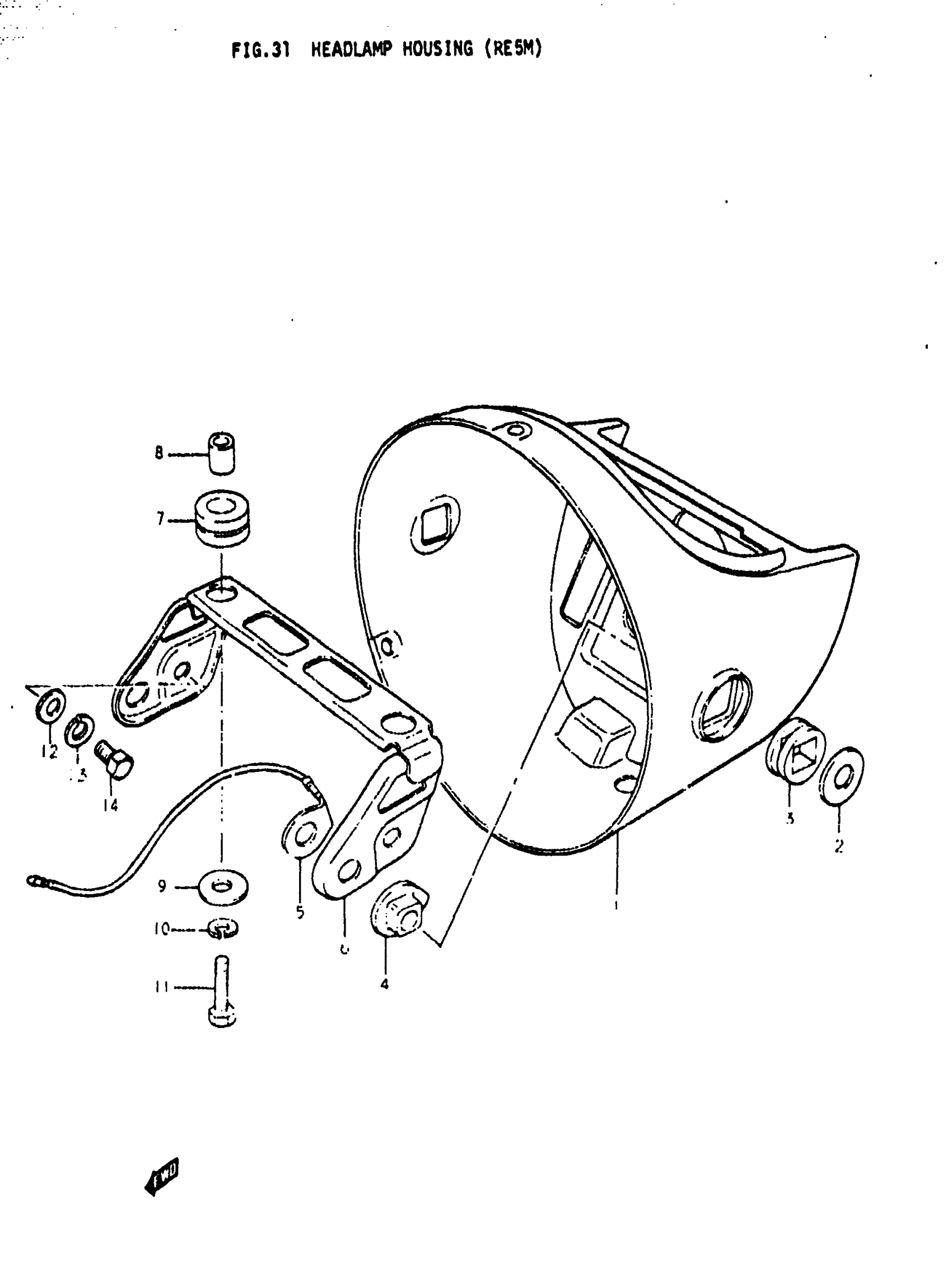

Suzuki RE5 (1976) HEADLAMP HOUSING (RE5M) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 51811-37000-01A.

51811-37000-737

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 51811-37000-796.

51811-37000-737

Unavailable

2

WASHER This part replaces 09160-10028.

09160-10035

$1.78

3

CUSHION

51827-31030

Unavailable

4

SPACER

51821-37000

Unavailable

5

PLATE

51860-37000

Unavailable

6

BRIDGE | FROM 95900-37000

51850-37001

Unavailable

7

.CUSHION This part replaces 09320-10010.

09320-10015

$2.54

8

SPACER | 6.5x10.5x12

09180-07004

$2.30

9

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

BOLT This part replaces 01112-06258.

01500-06257

$1.97

12

WASHER This part replaces 08322-11088.

08322-01087

$2.13

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

BOLT This part replaces 01122-08128.

01500-08127

$2.62
