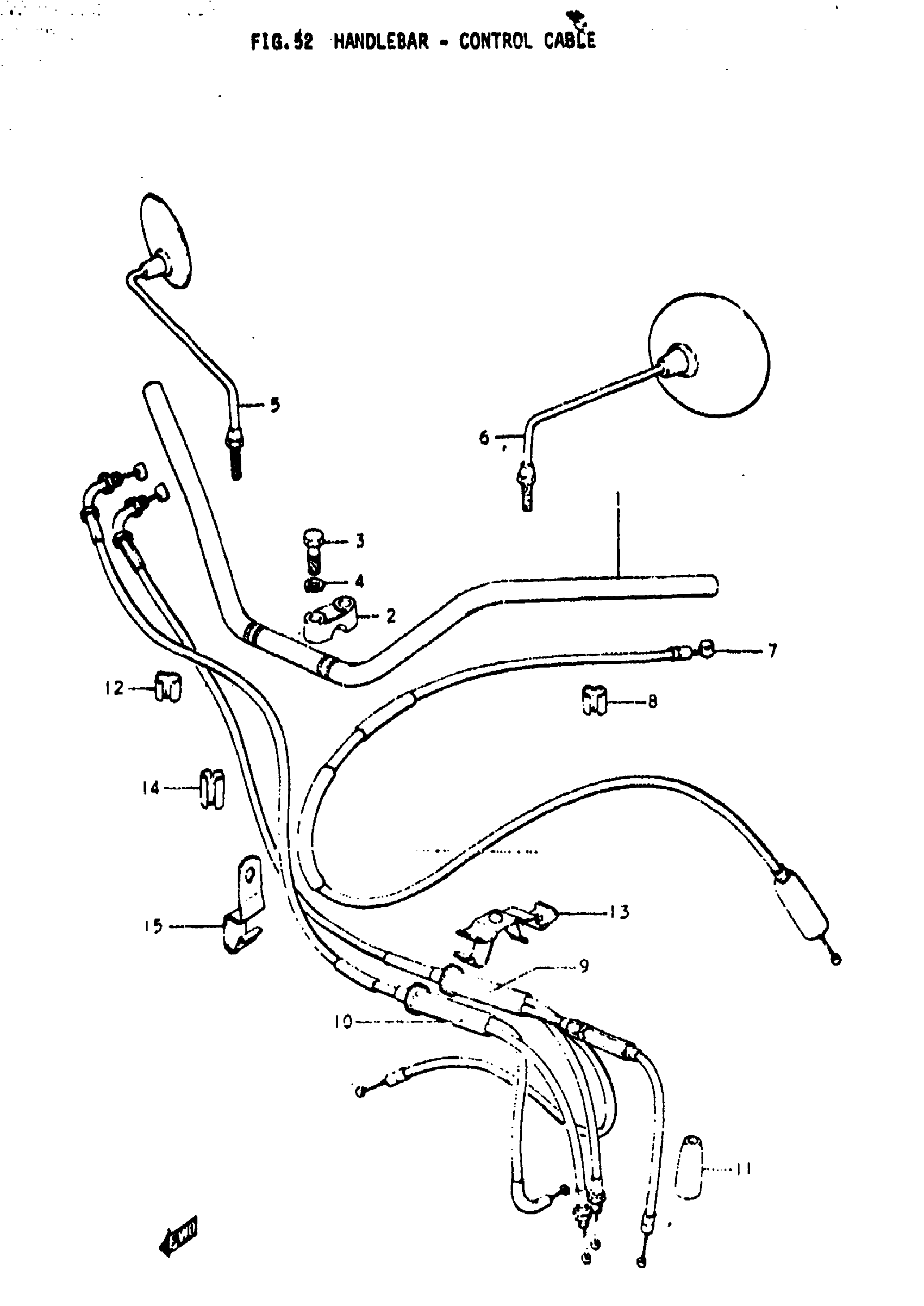

Suzuki RE5 (1976) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | M,A This part replaces 56111-37000.

56111-45031

Unavailable

2

HOLDER, HANDLE, UPPER | M,A This part replaces 56211-27200-019.

56211-27200-291

$17.90

3

BOLT | M,A This part replaces 01221-08357.

01204-08357

$2.09

4

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13

5

MIRROR ASSY,RR | M,A This part replaces 56500-31011.

56500-31014

$48.02

6

MIRROR ASSY,RR | M,A This part replaces 56600-31011.

56600-31014

$48.02

7

NO DESCRIPTION AVAILABLE | M,A This part replaces 58200-37000.

58200-37001

Unavailable

8

CLIP | M,A

09408-00002

$2.30

9

CABLE, THROTTLE NO.1 | M,A; FROM 58300-37000

58300-37001

Unavailable

10

CABLE, THROTTLE NO.2 | M,A

58300-37600

Unavailable

11

SEAL,DUST | M,A This part replaces 09287-07002.

09287-07006

$2.30

12

CLIP | M,A

09408-00005

Unavailable

13

GUIDE, THROTTLE CABLE | M,A

58620-37000

Unavailable

14

CLIP | M,A

09408-00001

Unavailable

15

GUIDE, CABLE | M,A

58621-34000

Unavailable
