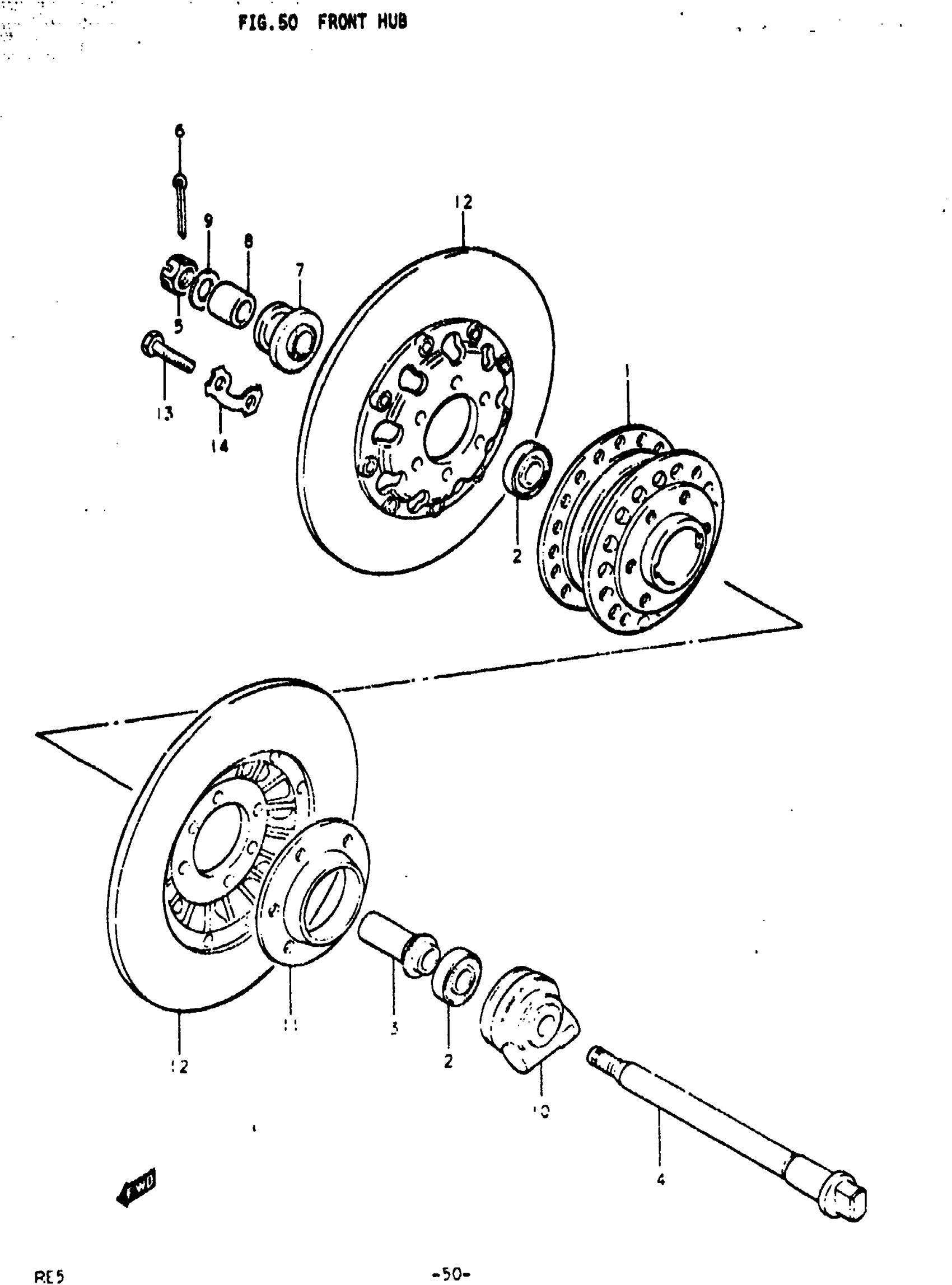

Suzuki RE5 (1976) FRONT HUB Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | M,A; Includes Item(s) 2 - 3 This part replaces 54100-18831.

54111-47002

Unavailable

2

BEARING | M,A This part replaces 08123-63020.

08123-6302B

$22.74

3

SPACER | M,A

54730-18400

$20.45

4

AXLE,FRONT | M; TO 54711-33002 WITH 09180-15034 This part replaces 54711-31701.

54711-3300V

Unavailable

4

AXLE,FRONT | A This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT | M,A This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN | M,A This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, AXLE, RH | M,A; FROM 54740-18400 This part replaces 54740-18401.

54740-18402

Unavailable

8

SPACER | M; 2PCS:F.NO.10526~A; 2PCS:F.NO.10526~

09180-15034

Unavailable

9

WASHER | M,A This part replaces 08322-21128.

08322-01127

$1.84

10

BOX ASSY,SPEEDO | M,A This part replaces 54600-34001.

54600-08C01

Unavailable

11

DUST SEAL, GEAR BOX | M,A

54871-31000

Unavailable

12

DISK, FRONT BRAKE | M,A; FROM 59210-37000

59210-37001

Unavailable

13

BOLT | M,A

09100-08094

$2.71

14

WASHER | M,A

09169-08016

$2.41
