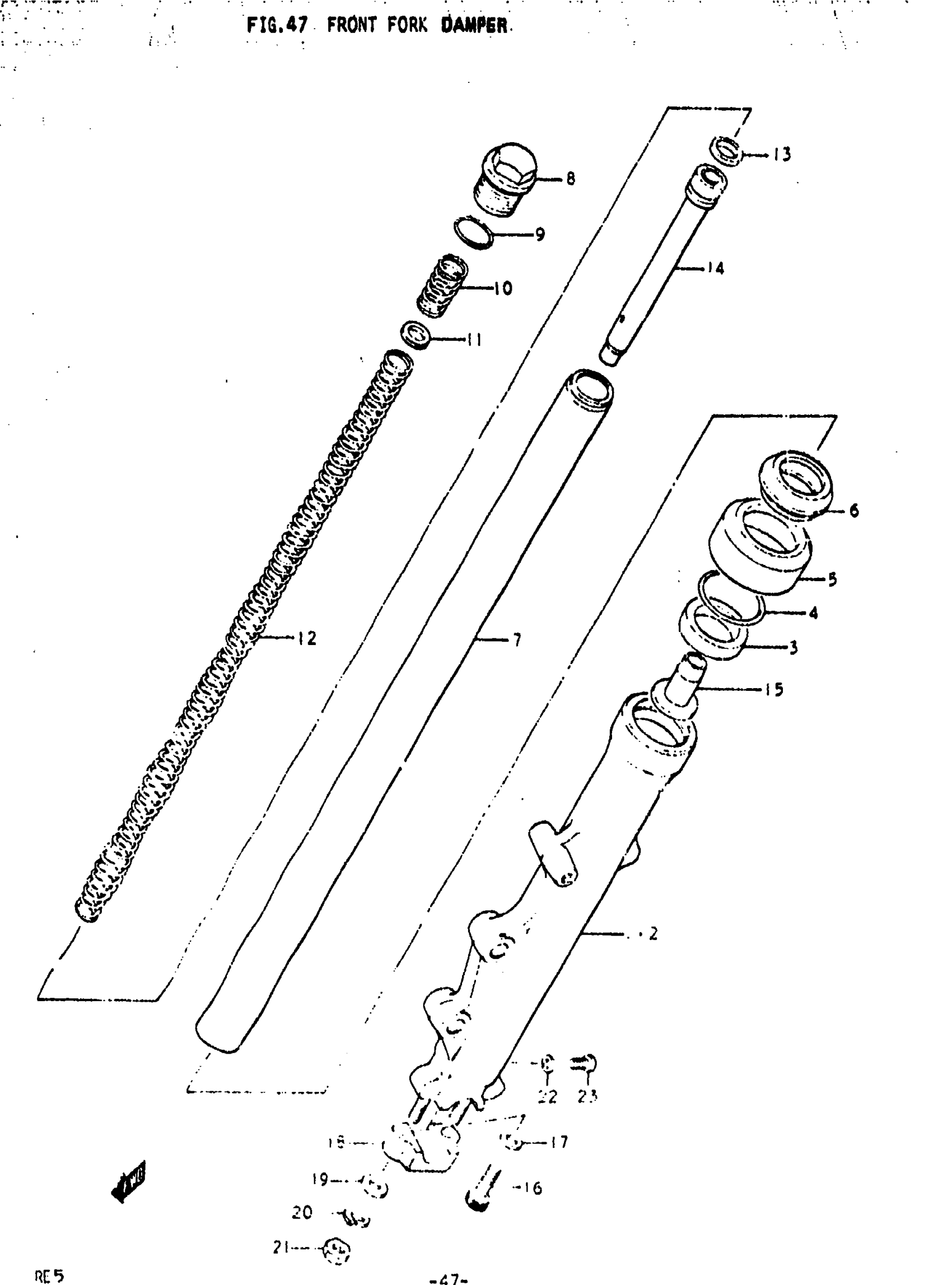

Suzuki RE5 (1976) FRONT FORK DAMPER Diagram

#

Description
Price

0

DAMPER ASSY, FRONT FORK RH | M,A

51103-37030

Unavailable

0

DAMPER ASSY, FRONT FORK LH | M,A; Includes Item(s) 1 - 23

51104-37030

Unavailable

1

OUTER TUBE, RH | M,A

51131-31230

Unavailable

2

OUTER TUBE, LH | M,A

51141-31230

Unavailable

3

SEAL, OIL | M,A This part replaces 51153-34730.

51153-19D10

$22.96

4

RING, STOPPER | M,A; TO 51156-31231 This part replaces 51156-31230.

51156-01A00

$4.34

5

COVER | M,A

51572-31230

Unavailable

6

DUST SEAL | M,A This part replaces 51571-31230.

51571-20520

Unavailable

7

INNER TUBE | M,A; FROM 51110-31231

51110-31230

Unavailable

8

BOLT | M,A

51351-31030

Unavailable

9

O RING | M,A

51181-31030

$4.37

10

SPRING S | M,A

51171-37030

Unavailable

11

PLATE | M,A

51192-37030

Unavailable

12

SPRING, L | M,A

51184-37030

Unavailable

13

RING, PLSTON | M,A

51196-31230

Unavailable

14

SEAT, UNDER | M,A

51146-37030

Unavailable

15

PIECE, OIL LOCK | M,A

51195-31230

Unavailable

16

BOLT | M,A This part replaces 51147-31030.

51147-48130

$4.34

17

O RING | M,A This part replaces 51148-31030.

51148-36011

$3.56

18

HOLDER, FRONT AXLE | M,A

51132-31030

Unavailable

19

WASHER | M,A This part replaces 08322-21088.

08322-01087

$2.13

20

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13

21

NUT | M,A This part replaces 08311-11088.

08310-00087

$2.13

22

GASKET, DRAIN PLUG | M,A

51183-33030

Unavailable

23

SCREW | M,A This part replaces 02111-04067.

02112-0406B

$1.55
