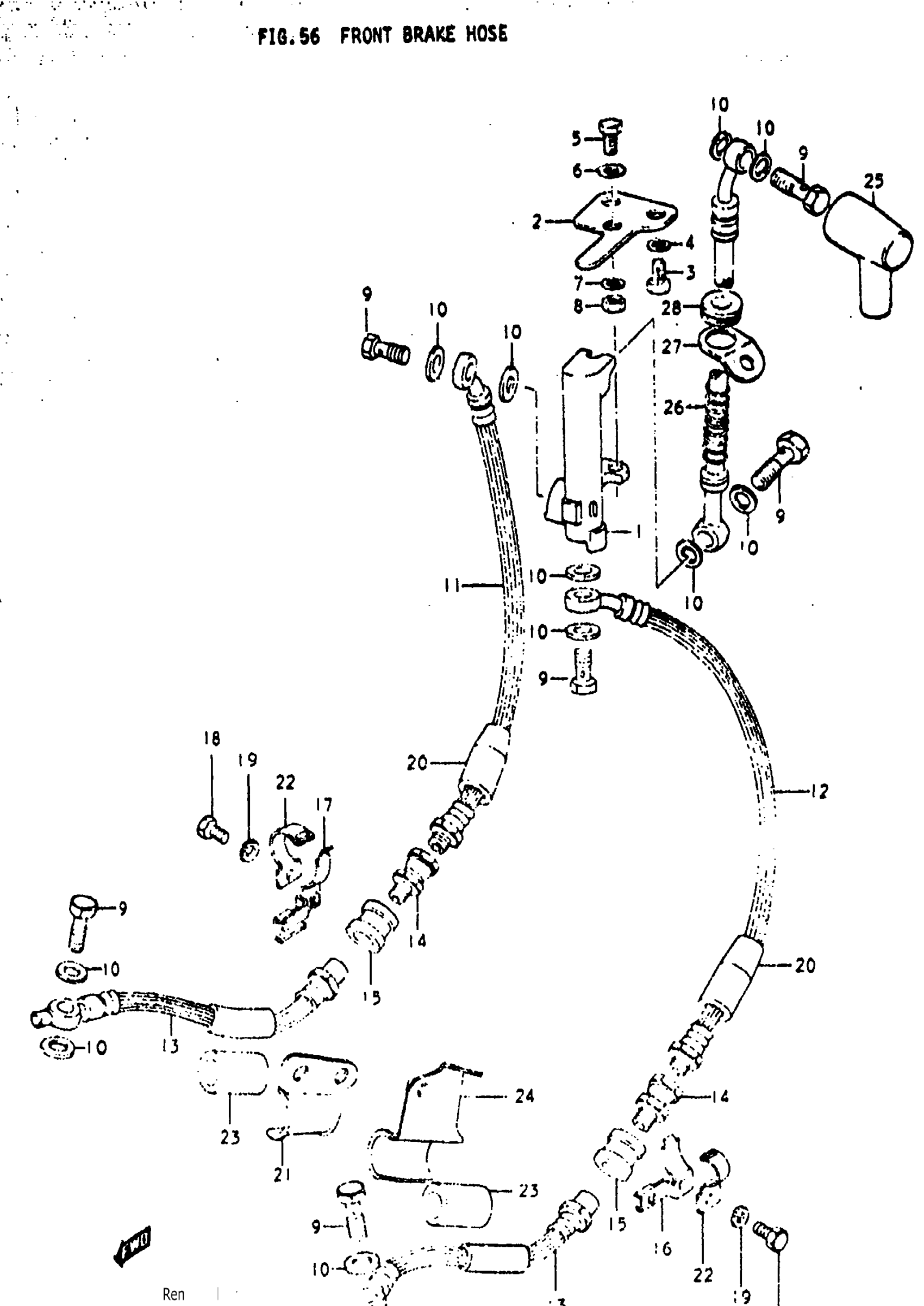

Suzuki RE5 (1976) FRONT BRAKE HOSE Diagram

#

Description
Price

1

JOINT, 3WAY BRAKE HOSE | M,A

59491-31031

Unavailable

2

BRACKET, JOINT | M,A

59492-31001

Unavailable

3

BOLT | M,A This part replaces 01112-06128.

01500-06127

$1.97

4

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

5

BOLT | M,A This part replaces 01112-06208.

01500-06207

$2.28

6

WASHER | M,A This part replaces 08322-21068.

08322-01067

$2.13

7

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

8

.NUT | M,A This part replaces 08311-11068.

08310-00067

$2.13

9

UNION | M,A This part replaces 09360-10003.

09360-10017

$3.42

10

WASHER (10X15X1.5) | M,A This part replaces 09161-10005.

09161-10009

$1.84

11

HOSE, BRAKE RH | M,A

59240-37011

Unavailable

12

HOSE, BRAKE LH | M,A

59480-18412

Unavailable

13

BRAKE HOSE 3 | M,A This part replaces 59520-31012.

59520-31013

Unavailable

14

ADAPTER | M,A

59290-33110

Unavailable

15

BUSHING | M,A

09305-14003

Unavailable

16

GUIDE, BRAKE HOSE LH | M,A

59470-37000

Unavailable

17

GUIDE, BRAKE HOSE RH | M,A

59270-37000

Unavailable

18

FRM CVR,SCREW(6 | M,A This part replaces 09128-06011.

09128-06092

$1.92

19

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

20

BOOT, BRAKE HOSE ADAPTER | M,A

59265-33100

Unavailable

21

COVER, BRAKE HOSE RH | M,A; TO 59281-37001

59281-37000

Unavailable

22

CLAMP, BRAKE HOSE | M,A

59268-33100

Unavailable

23

CUSHION | M,A

09320-14003

Unavailable

24

COVER, BRAKE HOSE LH | M,A

59510-37001

Unavailable

25

BOOT, MASTER CYLINDER | M,A This part replaces 59711-18400.

59711-49001

$7.51

26

HOSE, BRAKE NO.1 | M,A This part replaces 59480-37012.

59480-37013

Unavailable

27

GUIDE, BRAKE HOSE | M,A

59243-31000

Unavailable

28

GROMMET | M,A This part replaces 09308-14007.

09308-14009

Unavailable
