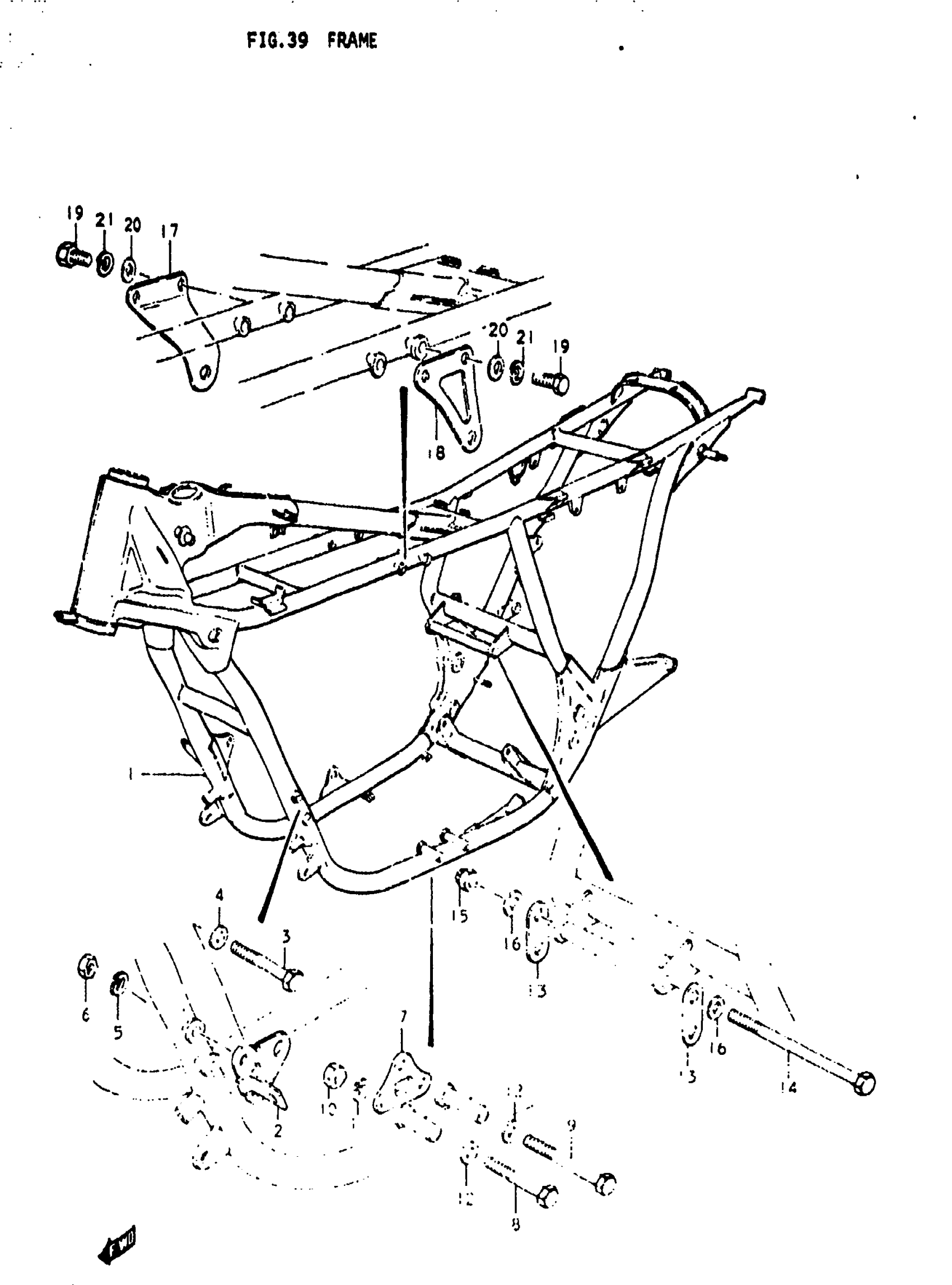

Suzuki RE5 (1976) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | M,A; TO 41100-37001-019 This part replaces 41100-37000-019.

41100-37001-019

Unavailable

2

PLATE, ENGINE MOUNTING (1) | M,A

41590-37000

Unavailable

3

BOLT | M,A This part replaces 01122-08608.

01500-0860B

$3.49

4

WASHER | M,A This part replaces 08322-11088.

08322-01087

$2.13

5

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13

6

NUT | M,A This part replaces 08312-11088.

08310-00087

$2.13

7

PLATE, ENGINE MOUNTING (2) | M,A

41594-37000

Unavailable

8

BOLT | M,A This part replaces 01122-08608.

01500-0860B

$3.49

9

BOLT | M,A This part replaces 01122-08708.

01500-0870B

$3.49

10

NUT | M,A This part replaces 08312-11088.

08310-00087

$2.13

11

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13

12

WASHER | M,A This part replaces 08322-11088.

08322-01087

$2.13

13

PLATE, ENGINE MOUNTING (3) | M,A

41596-37000

Unavailable

14

BOLT | M,A This part replaces 09100-10092.

41189-17X00

Unavailable

15

NUT | M,A; FROM 09159-10001

09159-10011

$3.23

16

WASHER | M,A This part replaces 08322-11108.

08322-01107

$2.15

17

PLATE, ENGINE MOUNTING (4) | M,A

41598-37000

Unavailable

18

PLATE, ENGINE MOUNTING (5) | M,A

41599-37000

Unavailable

19

BOLT, REAR | M,A This part replaces 01122-08208.

01500-08207

$2.53

20

WASHER | M,A This part replaces 08322-11088.

08322-01087

$2.13

21

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13
