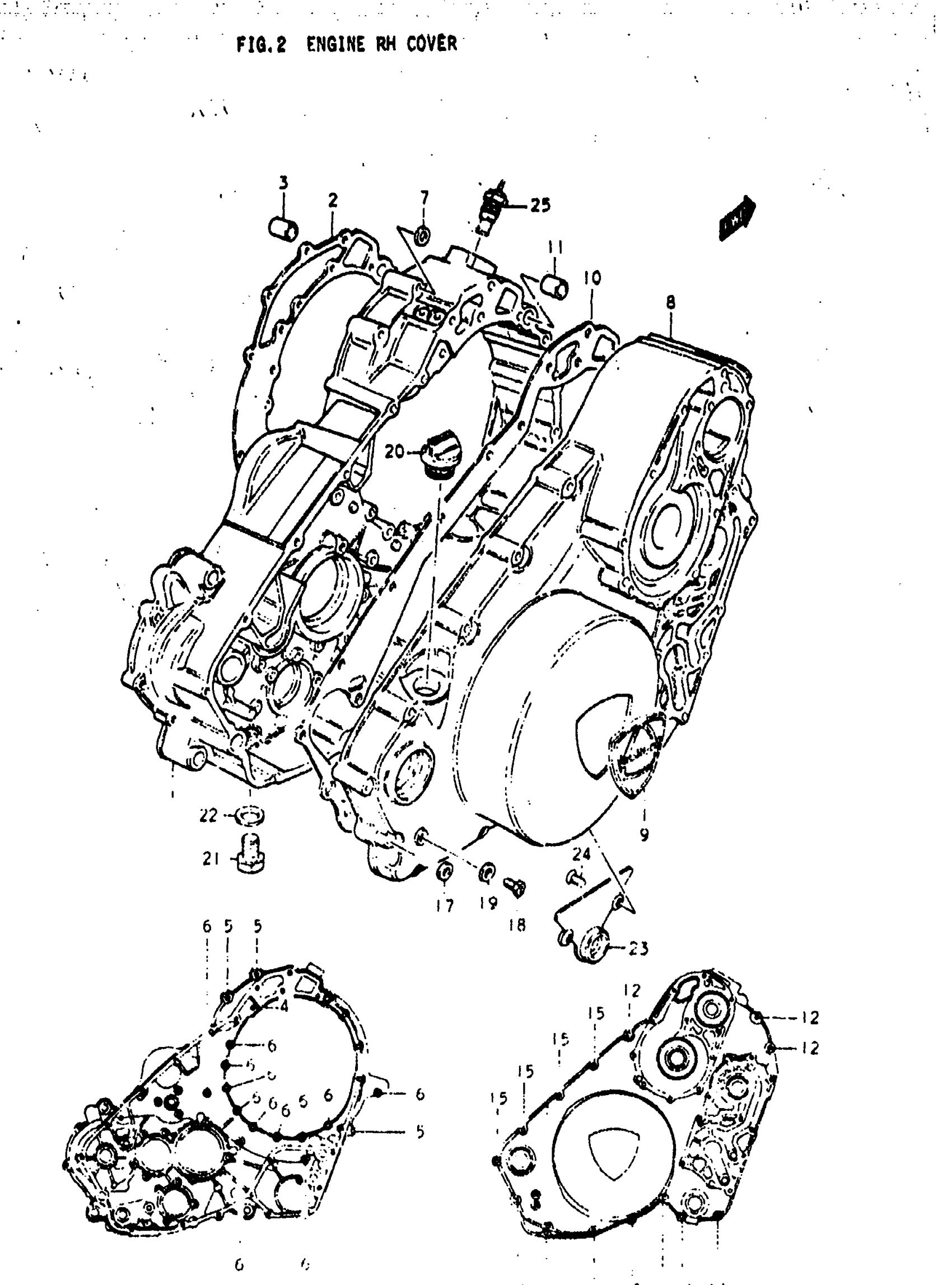

Suzuki RE5 (1976) ENGINE RH COVER Diagram

#

Description
Price

1

MAIN CASE | M,A; FROM 11311-37001

11311-37002

Unavailable

2

GASKET, MAIN CASE | M,A

11487-37000

Unavailable

3

PIN | M,A This part replaces 09206-13001.

04211-13189

$2.19

4

BOLT | M,A; 6x80

09106-06014

Unavailable

5

BOLT | M,A; 6x45

09106-06008

Unavailable

6

BOLT | M,A; 6x30 This part replaces 09106-06005.

07130-06307

$4.32

7

WASHER | M,A

09164-06006

$2.61

8

COVER, CLUTCH | M,A

11340-37001

Unavailable

9

EMCLEM | M,A

68235-37001

Unavailable

10

GASKET, CLUTCH COVER | M,A; FROM 11482-37001

11482-37002

Unavailable

11

PIN | M,A This part replaces 09206-13001.

04211-13189

$2.19

12

BOLT | M,A; 6x115

09106-06018

Unavailable

13

BOLT | M,A; 6x65

09106-06012

Unavailable

14

BOLT | M,A; 6x55 This part replaces 09106-06010.

07130-0655B

$4.10

15

BOLT | M,A; 6x45

09106-06008

Unavailable

16

BOLT | M,A; 6x25 This part replaces 09106-06003.

07130-06257

$3.16

17

WASHER | M,A

09164-06006

$2.61

18

SCREW (6X10) | M,A This part replaces 09128-06004.

09128-06044

$1.49

19

GASKET | M,A

09168-06001

$1.49

20

PLUG | M,A This part replaces 09259-19002.

09259-19005

$2.98

21

PLUG, DRAIN | M,A; FROM 09247-14010 This part replaces 09247-14007.

09247-14025

$2.79

22

GASKET | M,A

09168-14004

$1.83

23

OIL SEAL | M,A

09289-10001

Unavailable

24

SCREW | M,A

02121-04087

Unavailable

25

GAUGE, WATER TEMPERATURE | M

34850-66021

Unavailable

25

GAUGE, WATER TEMPERATURE | A

34850-65011

Unavailable
