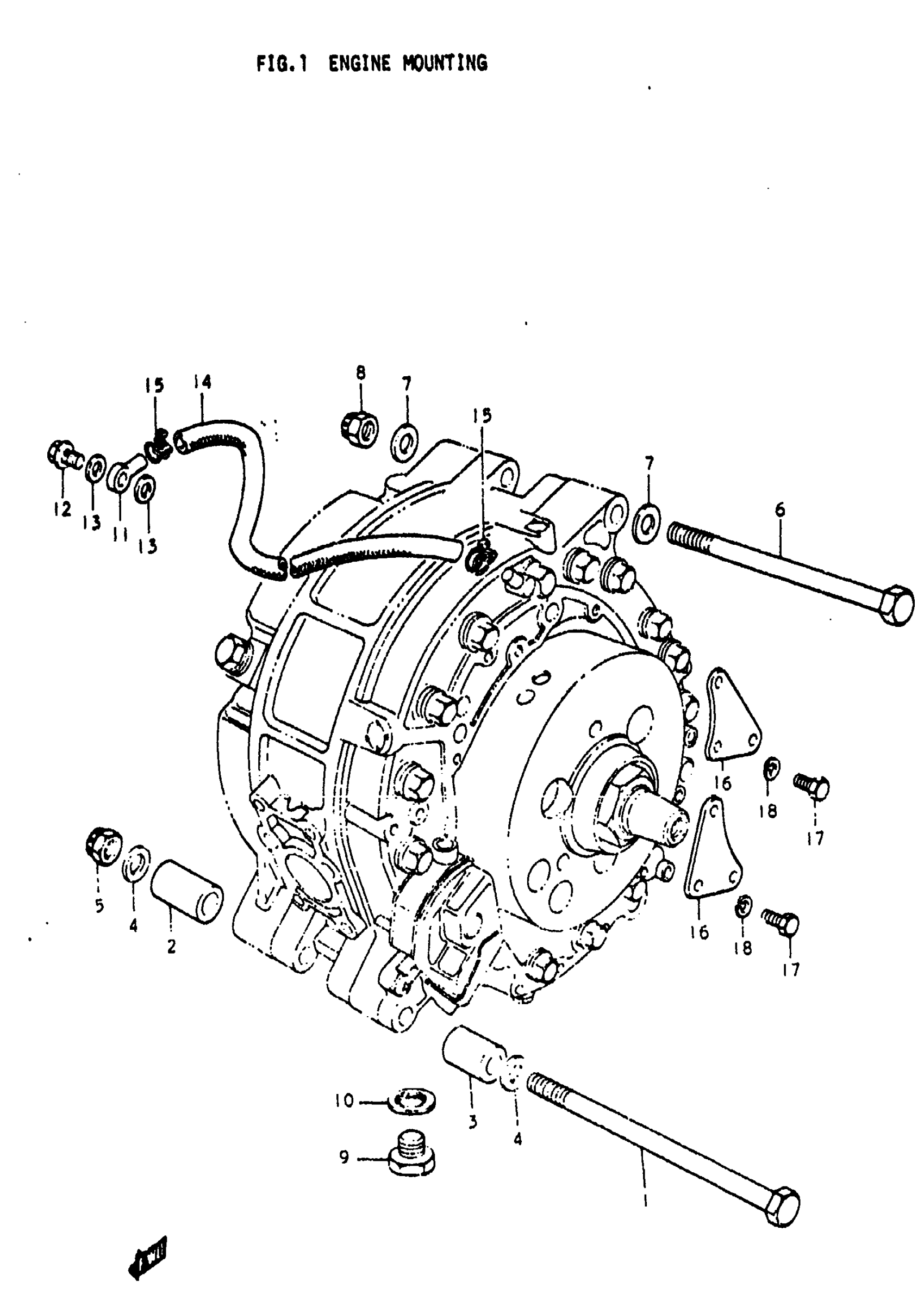

Suzuki RE5 (1976) ENGINE MOUNTING Diagram

#

Description
Price

1

BOLT | M,A

09100-10093

Unavailable

2

SPACER, RH | M,A; L:30.4

09180-10002

Unavailable

3

SPACER, LH | M,A; 10.2x20x22

09180-10039

Unavailable

4

WASHER | M,A This part replaces 08322-11108.

08322-01107

$2.15

5

NUT | M,A; FROM 09159-10001

09159-10011

$3.23

6

BOLT | M,A

09100-10034

Unavailable

7

WASHER | M,A This part replaces 08322-11108.

08322-01107

$2.15

8

NUT | M,A; FROM 09159-10001

09159-10011

$3.23

9

PLUG (MAGNETO) | M,A This part replaces 09247-14001.

09247-14002

$5.24

10

GASKET | M,A

09168-14004

$1.83

11

HOSE, OIL (L:512!97) | M,A; FROM 17755-31000 This part replaces 09363-06006.

16810-07520

Unavailable

12

UNION BOLT | M,A

09360-06003

$3.76

13

GASKET | M,A

09168-06004

$1.49

14

HOSE | M,A; 5.5x9.5x400

09343-05123

$18.42

15

OIL HOSE CLAMP | M,A This part replaces 09400-10301.

09400-10302

Unavailable

16

PLATE, ENGINE CONNECTING | M,A

11191-37000

Unavailable

17

BOLT, CANISTER | M,A This part replaces 01112-06168.

01500-06167

$1.97

18

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13
