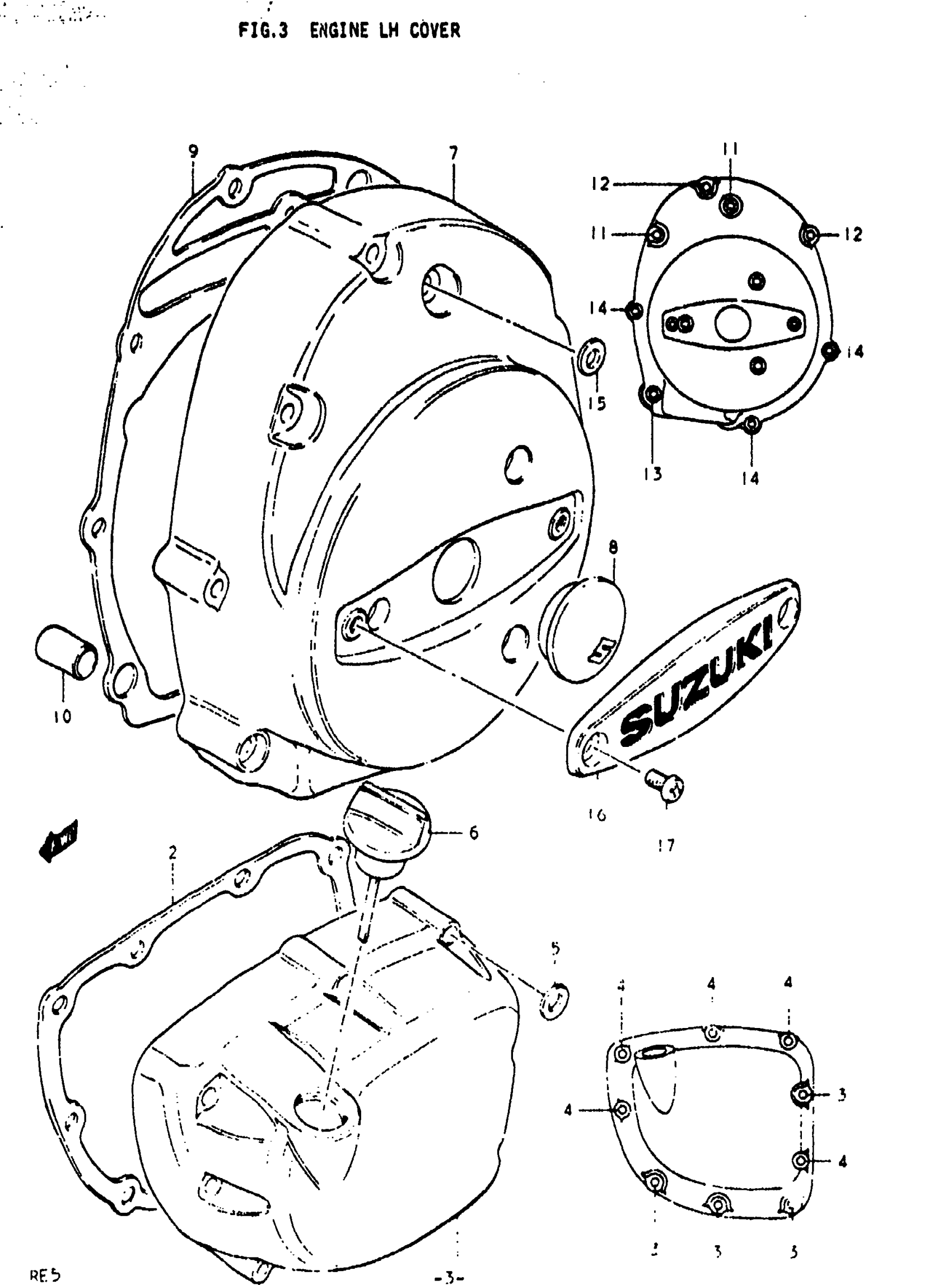

Suzuki RE5 (1976) ENGINE LH COVER Diagram

#

Description
Price

1

CAP, COUNTERWEIGHT | M,A

11384-37000

Unavailable

2

GASKET | M,A

11488-37000

Unavailable

3

BOLT | M,A; 6x120

09106-06019

Unavailable

4

BOLT | M,A; 6x40

09106-06007

Unavailable

5

WASHER | M,A

09164-06006

$2.61

6

OIL LEVEL GAUGE SET | M,A

24800-37810

Unavailable

7

GASKET, GENERATOR COVER | M,A

11351-37000

Unavailable

8

CAP(OD:32) | M,A This part replaces 09250-26001.

09250-26006

$2.87

9

GASKET, GENERATOR COVER | M,A

11483-37000

Unavailable

10

PIN | M,A This part replaces 09206-13001.

04211-13189

$2.19

11

BOLT | M,A; 6x125

09106-06020

Unavailable

12

BOLT | M,A; 6x120

09106-06019

Unavailable

13

BOLT | M,A; 6x50

09106-06009

Unavailable

14

BOLT | M,A; 6x35

09106-06006

Unavailable

15

WASHER | M,A

09164-06006

$2.61

16

CAP, GENERATOR INSPECTION | M,A; FROM 11381-37000

11381-37001

Unavailable

17

NO DESCRIPTION AVAILABLE | M,A This part replaces 02131-05087.

13603-81400

Unavailable
