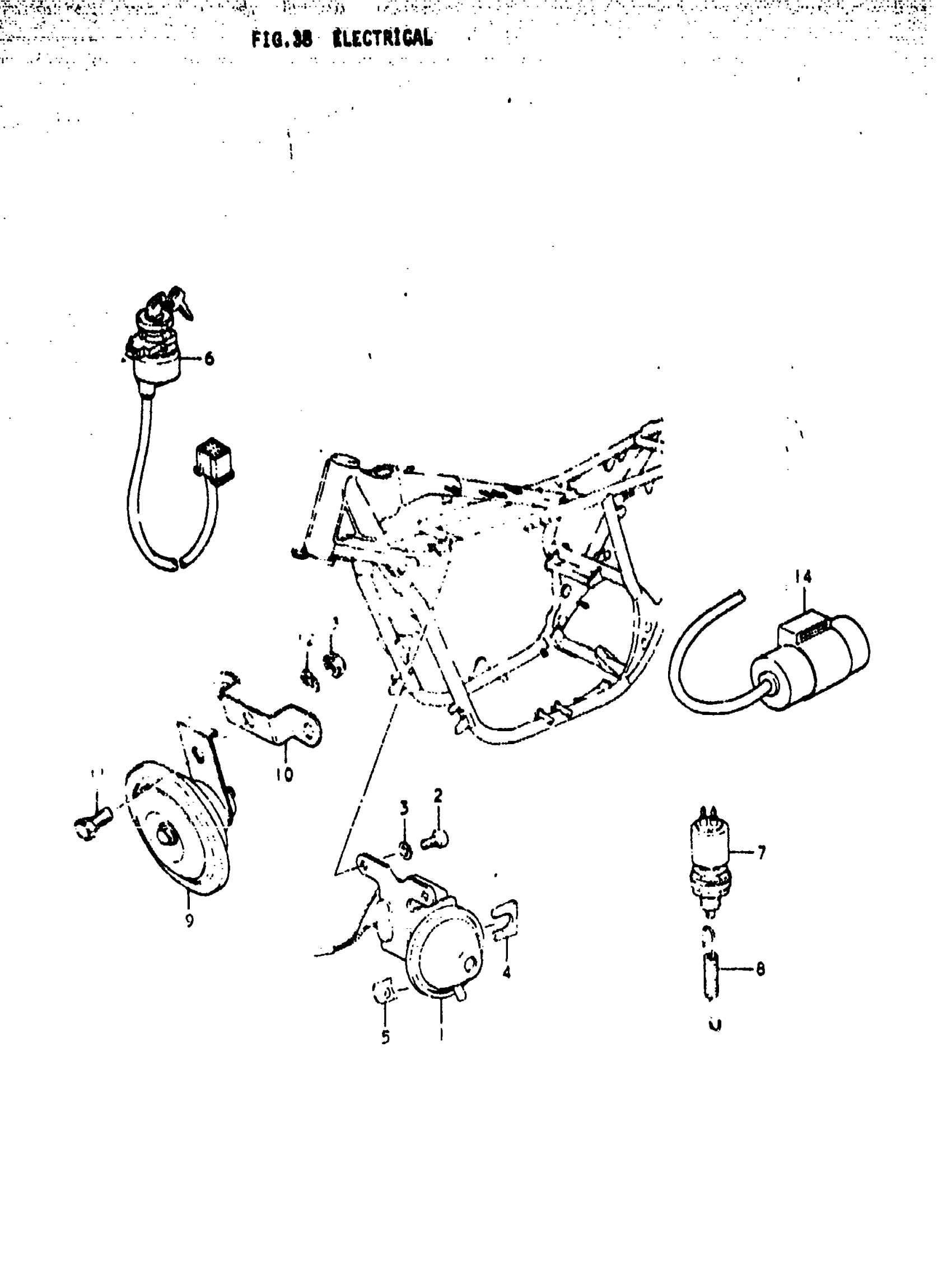

Suzuki RE5 (1976) ELECTRICAL Diagram

#

Description
Price

1

SWITCH ASSY, VACUUM | M; FROM 33240-37030

33240-37081

Unavailable

2

BOLT | M, This part replaces 01112-05168.

01500-0516B

$2.15

3

LOCK WASHER | M, This part replaces 08321-21058.

08321-0105A

$1.84

4

SPACER | M; USE FOR 33240-37030

33250-37000

Unavailable

5

GROMMET | M; USE FOR 33240-37030

33260-37000

Unavailable

6

SWITCH, IGNITION | M; FROM 37110-37013

37110-37014

Unavailable

6

SWITCH, IGNITION | A

37110-37990

Unavailable

7

SWITCH, STOP LAMP | M,A

37610-53011

$30.75

8

SPRING | M,A

09443-06012

$3.16

9

HORN | M,A; FROM 38500-37031 This part replaces 38500-37032.

38500-31646

Unavailable

10

BRACKET, HORN | M,A

38590-37000

Unavailable

11

BOLT | M,A This part replaces 01122-08128.

01500-08127

$2.62

12

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13

13

NUT | M,A This part replaces 08312-11088.

08310-00087

$2.13

14

RELEY ASSY | M; FROM 38710-37021

38710-37022

Unavailable
