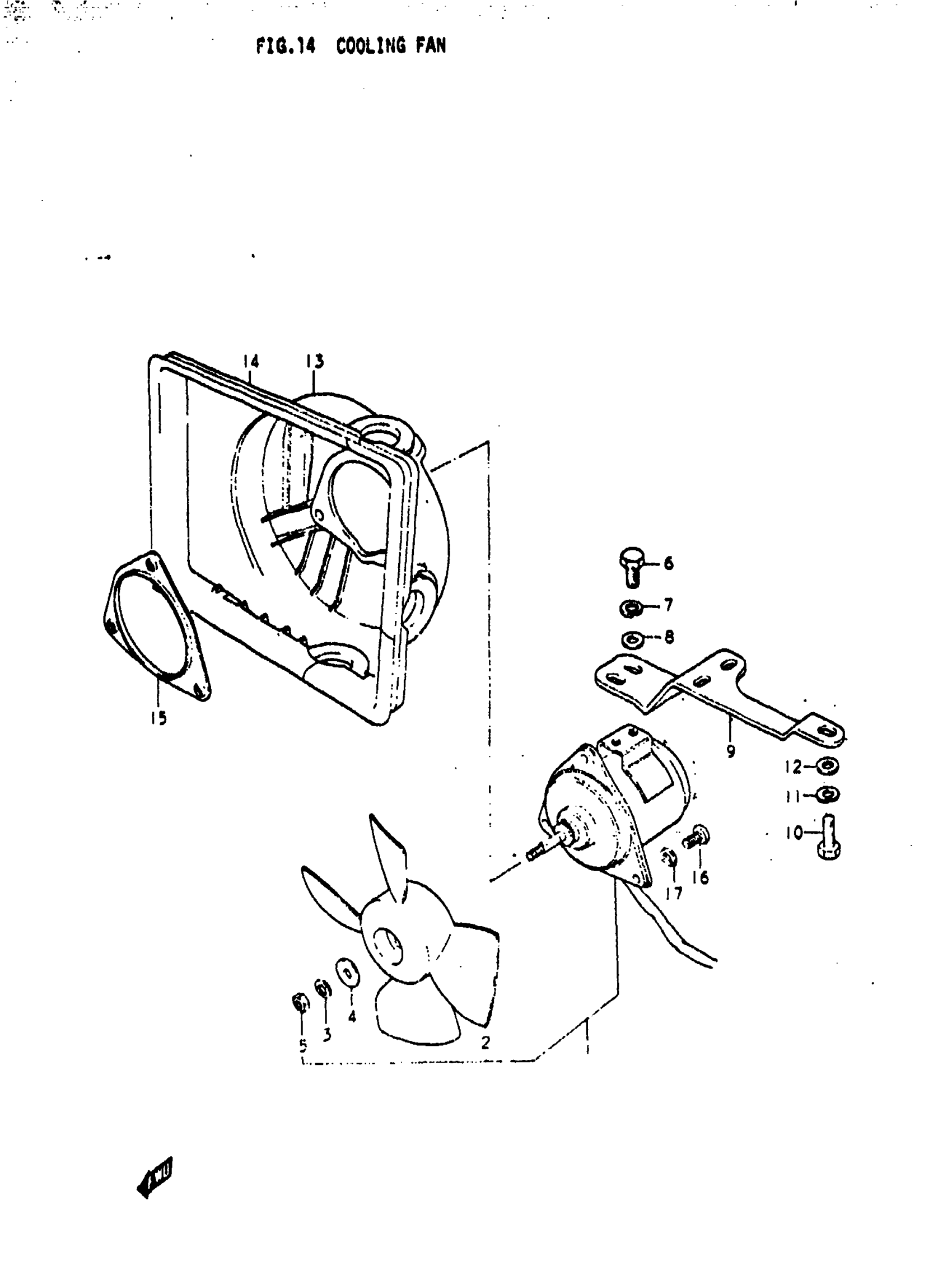

Suzuki RE5 (1976) COOLING FAN Diagram

#

Description
Price

1

FAN ASSY, COOLING | M,A; Includes Item(s) 2 - 5

17110-37010

Unavailable

2

FAN | M,A

17111-37010

Unavailable

3

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

$1.84

4

WASHER | M,A This part replaces 08322-21058.

08322-01057

$2.13

5

NUT | M,A This part replaces 08311-11058.

08310-00057

$1.84

6

BOLT | M,A This part replaces 01112-06128.

01500-06127

$1.97

7

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

8

.WASHER | M,A This part replaces 08322-11068.

08322-0106B

$2.26

9

BRACKET, COOLING FAN MOTOR | M,A

17151-37002

Unavailable

10

BOLT, CANISTER | M,A This part replaces 01112-06168.

01500-06167

$1.97

11

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

12

.WASHER | M,A This part replaces 08322-11068.

08322-0106B

$2.26

13

SHROUD, COOLING FAN | M,A

17765-37002

Unavailable

14

CUSHION | M,A

17767-37002

Unavailable

15

PLATE | M,A

17768-37000

Unavailable

16

SCREW | M,A This part replaces 02112-06168.

02112-06167

$1.49

17

.WASHER | M,A This part replaces 08322-11068.

08322-0106B

$2.26
