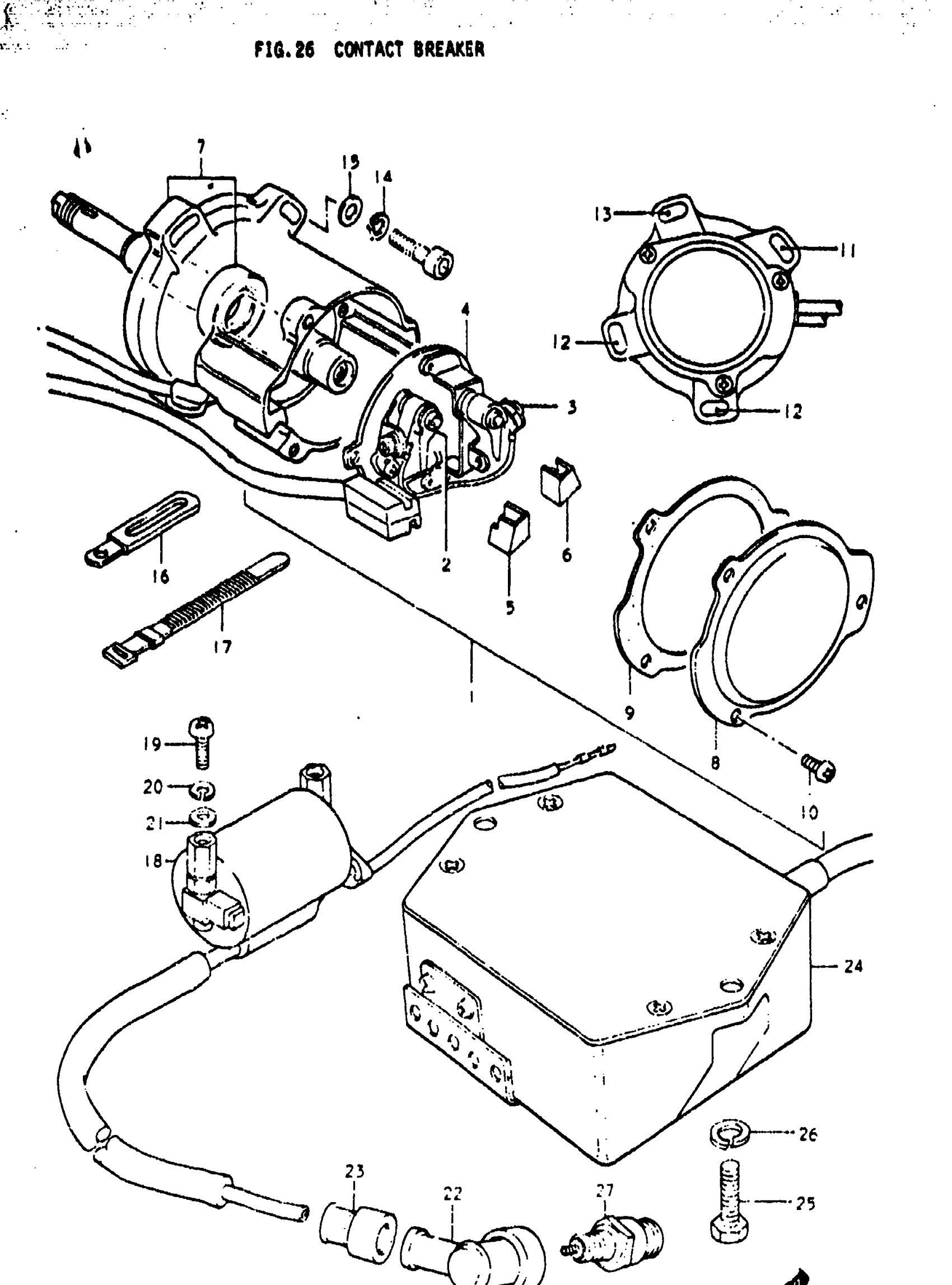

Suzuki RE5 (1976) CONTACT BREAKER Diagram

#

Description
Price

1

BREAKER ASSY | M,A; Includes Item(s) 2 - 10

33100-37010

Unavailable

2

POINT, CONTACT (A) | M,A

33140-37010

Unavailable

3

POINT, CONTACT (B) | M

33160-37010

Unavailable

4

PLATE, CONTACT POINT | M,A

31443-37010

Unavailable

5

COVER, PILOT (A) | M,A

33141-37010

Unavailable

6

COVER, PILOT (B) | M

33161-37010

Unavailable

7

CASE, CONTACT BREAKER | M,A; INCLUDE OIL SEAL

33123-37010

Unavailable

8

COVER | M,A

33121-37010

Unavailable

9

GASKET | M,A

33122-37010

Unavailable

10

SCREW | M,A This part replaces 02111-05108.

02112-05107

$1.49

11

BOLT | M,A; 6x25 This part replaces 09106-06003.

07130-06257

$3.16

12

BOLT | M,A; 6x50

09106-06009

Unavailable

13

BOLT | M,A; 6x60

09106-06011

Unavailable

14

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER | M,A

09164-06006

$2.61

16

CLAMP(L:80) | M,A This part replaces 09404-06404.

09404-06036

$1.74

17

CLAMP | M,A

09407-12402

$3.04

18

COIL, IGNITION | M,A

33410-37010

Unavailable

19

SCREW | M,A This part replaces 02111-05127.

02112-05127

$1.97

20

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

$1.84

21

WASHER | M,A This part replaces 08322-21058.

08322-01057

$2.13

22

CAP, SPARK PLUG | M,A This part replaces 33510-31010.

33510-97313

$14.73

23

SEAL,HIGH TENSION CORD (SIDE) | M,A This part replaces 33542-98000.

33542-38B00

$4.34

24

NO DESCRIPTION AVAILABLE | M,A This part replaces 31900-37010.

31900-37011

Unavailable

25

BOLT, CANISTER | M,A This part replaces 01112-06168.

01500-06167

$1.97

26

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

27

SPARK PLUG AU10 | M,A; NGK, AOEFP This part replaces 09482-00100.

09482-00111

Unavailable
