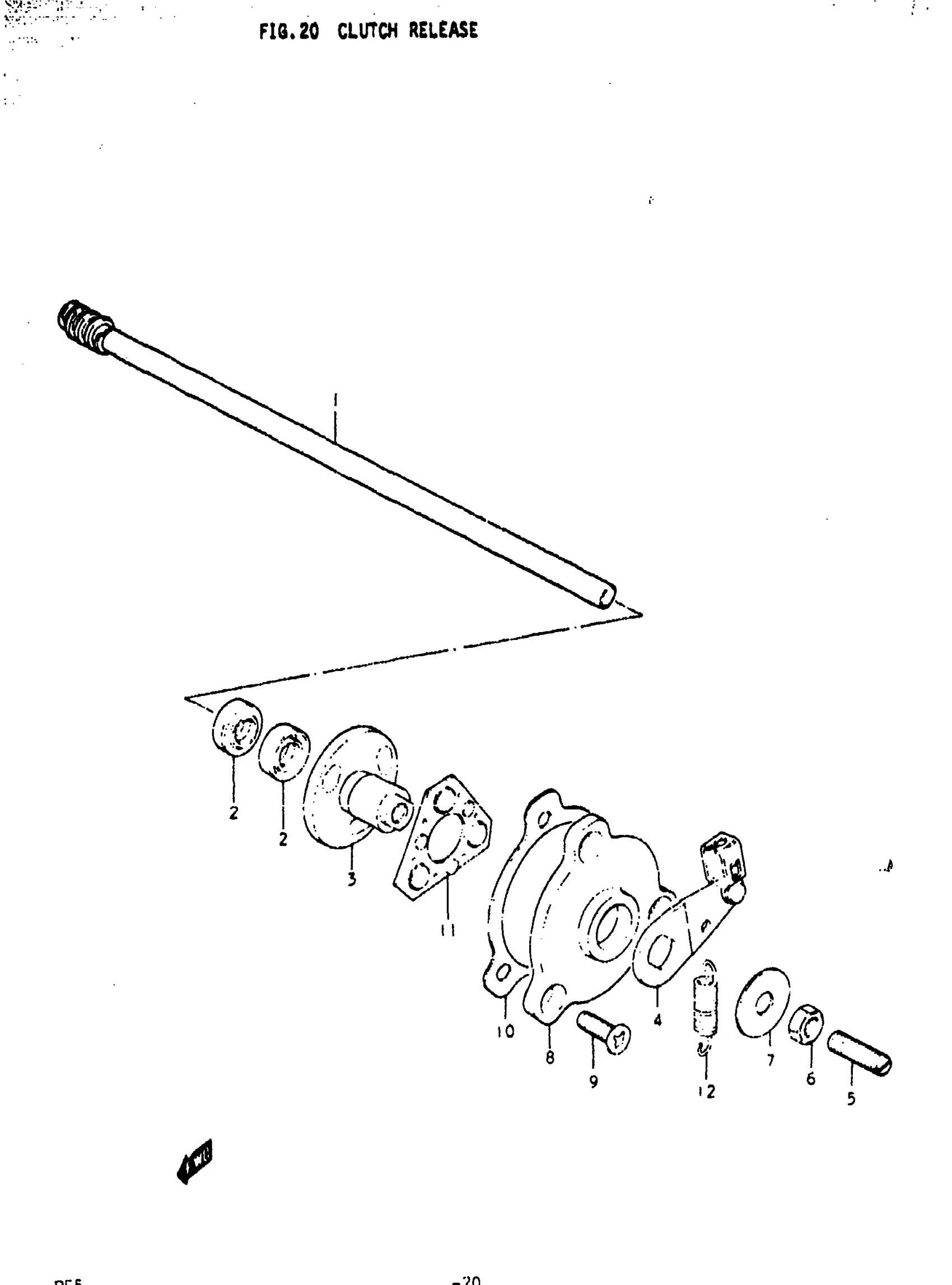

Suzuki RE5 (1976) CLUTCH RELEASE Diagram

#

Description
Price

1

ROD, PUSH | M,A

23110-37000

Unavailable

2

OIL SEAL | M,A

09285-08006

Unavailable

3

BALL GUIDE, RELEASE OUTER | M,A

23211-34001

Unavailable

4

ARM, RELEASE | M,A

23220-37000

Unavailable

5

SCREW | M,A

09134-08006

Unavailable

6

NUT | M,A This part replaces 08312-31088.

08310-00087

$2.13

7

WASHER | M,A; 8.5x26x1.2

09160-08032

$2.30

8

BALL GUIDE, RELEASE INNER | M,A

23231-34001

Unavailable

9

SCREW | M,A This part replaces 02122-06258.

02122-0625A

$1.49

10

GASKET,BALL GUI | M,A This part replaces 23291-34000.

23291-34010

Unavailable

11

BALL, RELEASE | M,A This part replaces 23250-31001.

23250-31003

$28.18

12

SPRING | M,A

09443-08001

$2.92
