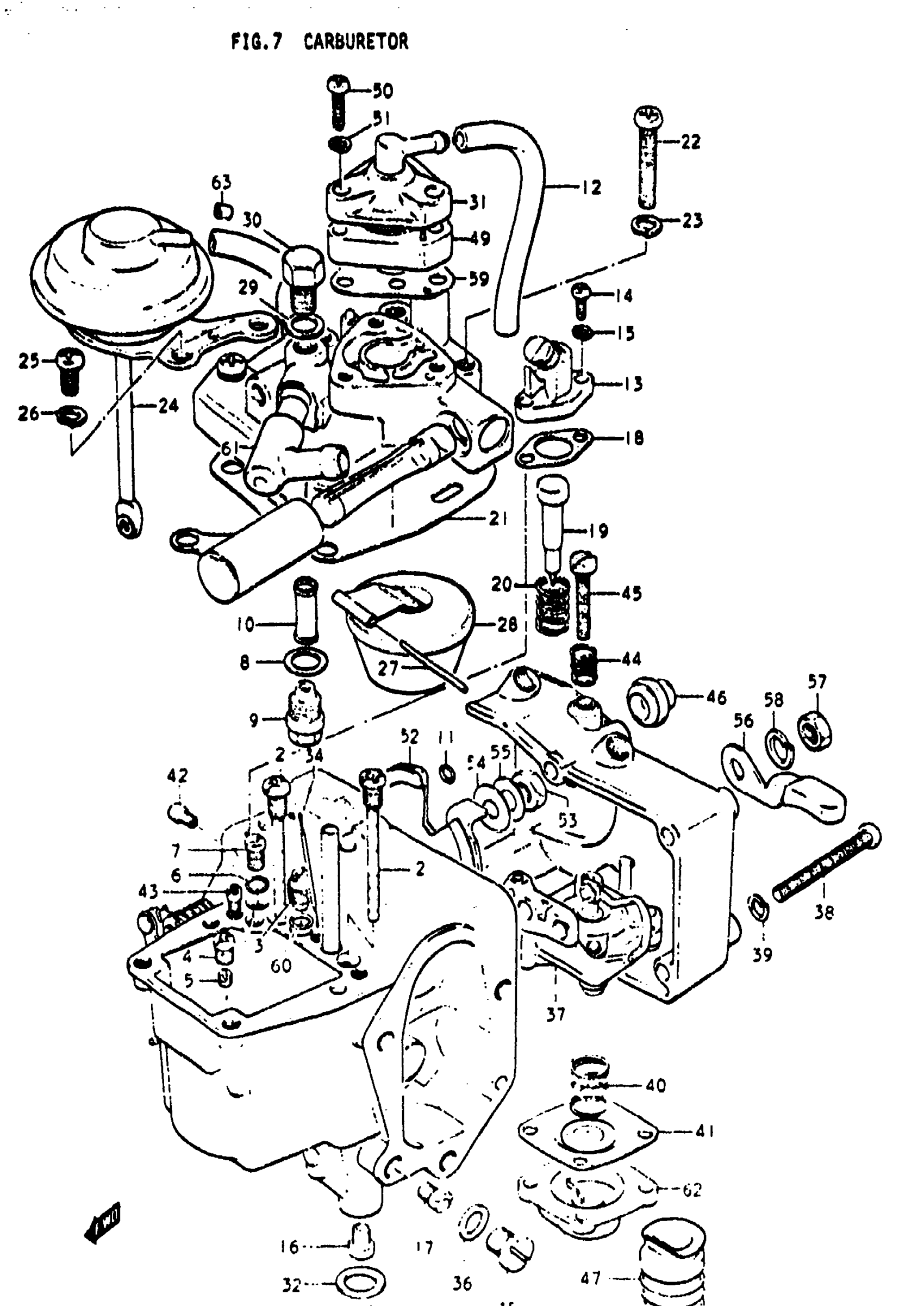

Suzuki RE5 (1976) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | M; FROM 13200-37010 This part replaces 13200-37013.

13200-37990

Unavailable

0

CARBURETOR ASSY | A; Includes Item(s) 1 - 62

13200-37990

Unavailable

1

FILTER, AIR INLET | M,A; FROM 44322-31050

13236-37010

Unavailable

2

JET, MAIN AIR BLEED | M,A; #80-A

09493-80004

Unavailable

3

CHECK VALVE ASSY, ACCELERATIO | M,AM,A

13492-37010

Unavailable

4

JET, SECONDARY PILOT AIR | M,A; #140

09493-28005

Unavailable

5

JET, AIR (70) | M,A; #70 This part replaces 09492-70002.

09492-70004

$11.83

6

O RING, PRIMARY PILOT JET | M,A

13294-28010

$4.48

7

JET, PILOT | M,A; #45 This part replaces 09492-45011.

09492-45035

$17.68

8

GASKET, VALVE SEAT | M,A

13392-16600

$1.94

9

VALVE ASSY, NEEDLE | M; #200, TO 13370-37011 This part replaces 13370-37010.

13370-37011

Unavailable

9

VALVE ASSY, NEEDLE | A; #120

13370-37011

Unavailable

10

FILTER, VALVE SEAT | M

13376-37010

Unavailable

10

FILTER, VALVE SEAT | A

13376-37012

Unavailable

11

O RING, UNLOADER DIAPHRAGM | M,A

13295-37010

Unavailable

12

HOSE, ENRICHMENT | M,A; 3x7x75M,A; 3x7x75

13683-37010

Unavailable

13

BODY ASSY, PILOT SCREW | M,A

13270-37010

Unavailable

14

SCREW | M,A This part replaces 02111-04127.

02112-0412A

$1.49

15

LOCK WASHER | M,A This part replaces 08321-21048.

08321-0104A

$1.84

16

JET, SECONDARY MAIN | M,A; #180

09491-36004

Unavailable

17

JET, MAIN (90) | M; #90 This part replaces 09491-90004.

09491-90011

$17.43

17

NO DESCRIPTION AVAILABLE | A; #87.5 This part replaces 09491-87002.

09491-87004

Unavailable

18

GASKET, PILOT SCREW BODY | M,A

13277-37010

Unavailable

19

NEEDLE, PILOT SCREW | M,A

13269-37010

Unavailable

20

SPRING | M,A This part replaces 13268-99011.

13268-96111

$4.35

21

GASKET, FLOAT CHAMBER CAP | M,A

13251-37010

Unavailable

22

SCREW,5X22 | M,A This part replaces 02111-05227.

09125-05105-XC0

$4.10

23

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

$1.84

24

DIAPHRAGM ASSY, SECONDARY | M,A; FROM 13510-37010M,A

13510-37011

Unavailable

25

SCREW | M,A This part replaces 02111-05127.

02112-05127

$1.97

26

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

$1.84

27

PIN, FLOAT | M,A

13254-65710

Unavailable

28

FLOAT | M,A

13252-37010

Unavailable

29

WASHER, VALVE SEAT | M,A

13274-37010

Unavailable

30

NUT, VALVE SEAT | M,A

13273-37010

Unavailable

31

CAP, ENRICHMENT DIAPHRAGM | M,A

13465-37014

Unavailable

32

GASKET, SECONDARY MAIN JET PL | M,AM,A

13419-31210

Unavailable

33

PLUG, SECONDARY MAIN JET | M,A

13247-37010

Unavailable

34

NEEDLE, ACCELERATION PUMP | M,AM,A

13493-37010

Unavailable

35

PLUG, PRIMARY MAIN JET | M,A

13664-18654

$8.98

36

GASKET (8.2X14X1) | M,A This part replaces 13249-31210.

09168-08016

$1.65

37

DIAPHRAGM ASSY, UNLOADER | M,A

13450-37010

Unavailable

38

SCREW | M,A This part replaces 02112-05408.

02112-05407

$2.06

39

LOCK WASHER | M,A This part replaces 08321-21058.

08321-0105A

$1.84

40

SPRING, ACCELERATION PUMP | M,A

13494-37010

Unavailable

41

DIAPHRAGM, ACCELERATION PUMP | M,A

13491-37010

Unavailable

42

NO DESCRIPTION AVAILABLE | M,A; #50 This part replaces 09492-50009.

09492-50013

Unavailable

43

JET, PRIMARY PILOT AIR | M,A; #145

09492-29001

Unavailable

44

SPRING | M,A This part replaces 13268-51010.

13444-61A00

$4.75

45

SCREW, THROTTLE STOP | M,A

13267-37010

Unavailable

46

CAP, SIDE COVER | M,A

13688-37010

Unavailable

47

BOOT, ACCELERATION PUMP ROD | M,A

13499-37010

Unavailable

48

COTTER PIN | M,A; FROM 13428-37010 This part replaces 04111-10088.

04111-10108

Unavailable

49

DIAPHRAGM ASSY, ENRICHMENT | M,A

13460-37010

Unavailable

50

SCREW | M,A

02111-04258

Unavailable

51

LOCK WASHER | M,A This part replaces 08321-21048.

08321-0104A

$1.84

52

LEVER, PRIMARY THROTTLE A | M,A

13553-37010

Unavailable

53

NUT | M,A This part replaces 13607-37010.

08310-00087

$2.13

54

WASHER, A | M,A

13606-37010

Unavailable

55

WASHER, B | M,A

13659-37010

Unavailable

56

LEVER, CHOKE | M,A

13580-37010

Unavailable

57

NUT | M,A

13608-37010

Unavailable

58

LOCK WASHER | M,A; FROM 13559-37010 This part replaces 08321-21068.

08321-01067

$2.13

59

GASKET, ENRICHMENT | M,A

13467-37010

Unavailable

60

WASHER, ACCELERATION CHECK | M,AM,A

13496-37013

Unavailable

61

UNION BOLT | M,A

13272-37010

Unavailable

62

COVER, ACCELERATION PUMP | M,A

13495-37013

Unavailable

63

JET, SECONDARY MAIN | M,A; #175 OPT

09491-35002

Unavailable

0

CARBURETOR REPAIRING KIT | M,A

13280-37810

Unavailable
