Partiron

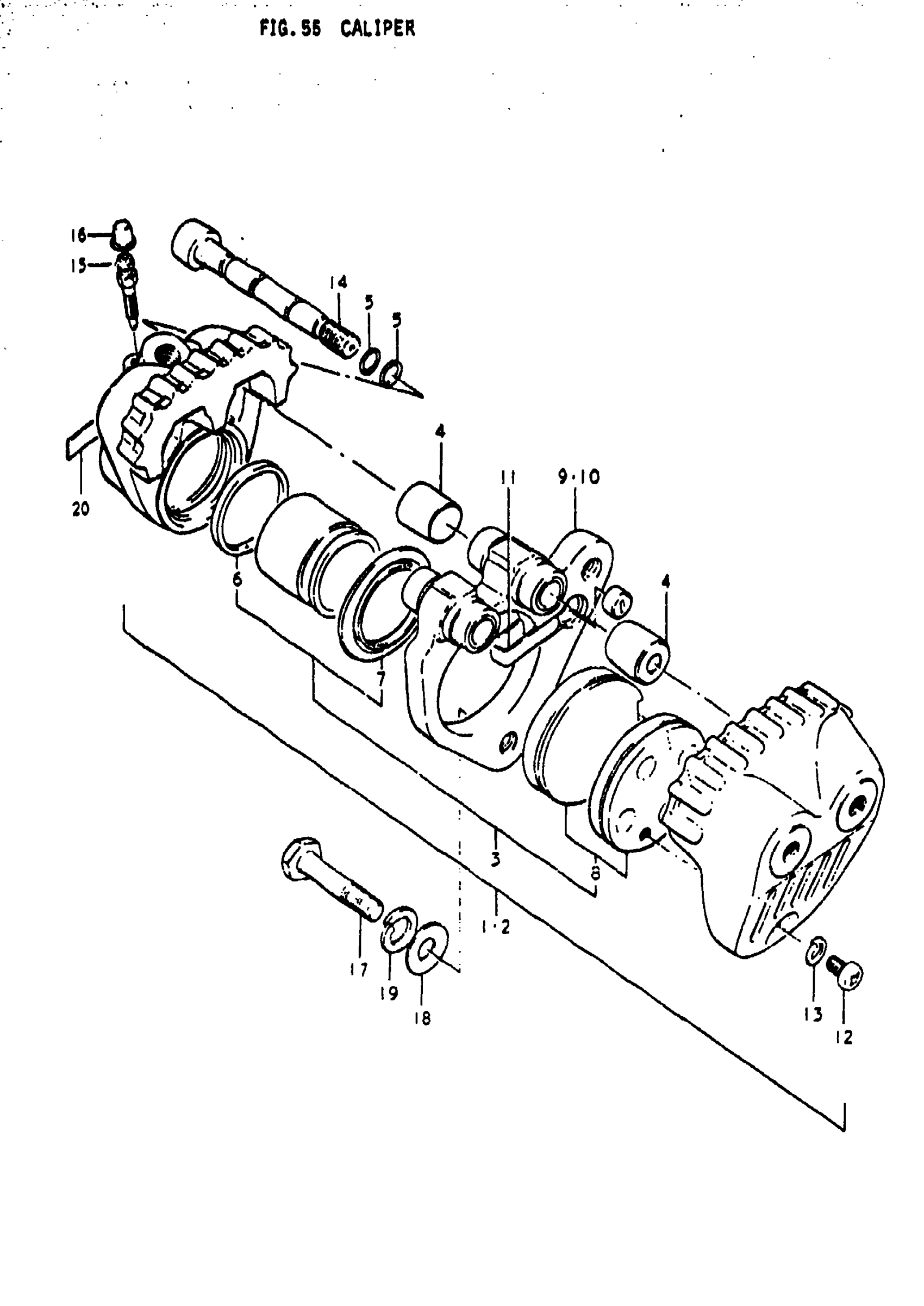

Suzuki RE5 (1976) CALIPER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | M,A This part replaces 59100-33111.

59100-33112

Unavailable

2

CALIPER, LH | M,A; Includes Item(s) 3 - 16

59300-31211

Unavailable

3

PISTON SET | M,A This part replaces 59100-18831.

59100-18834

Unavailable

4

DUST COVER, AXLE | M,A

59112-18410

Unavailable

5

O RING | M,A

59111-18410

Unavailable

6

SEAL,PISTON | M,A This part replaces 59107-18410.

69107-05CF0

$9.07

7

BOOT | M,A

59108-18410

Unavailable

8

PAD SET | M,A This part replaces 59100-18840.

59300-18810

Unavailable

9

HOLDER, CALLPER RH | M,A

59150-18411

Unavailable

10

HOLDER, CALLPER LH | M,A

59350-31011

Unavailable

11

STOPPER, CALLPER HOLDER | M,A

59153-18410

Unavailable

12

SCREW | M,A This part replaces 02112-06128.

02112-06127

$1.84

13

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

14

AXLE, CALLPER | M,A

59105-18411

Unavailable

15

BREATHER | M,A

59121-18410

$8.73

16

CAP, BLEEDER | M,A This part replaces 59122-18410.

55156-66310

$5.17

17

BOLT (10X38) | M,A This part replaces 09104-10007.

09104-10029

$3.55

18

WASHER | M,A This part replaces 08322-21108.

08322-01107

$2.15

19

LOCK WASHER | M,A This part replaces 08321-21108.

08321-01107

$1.84

20

EMBLEM | M,A

68334-18400

Unavailable
