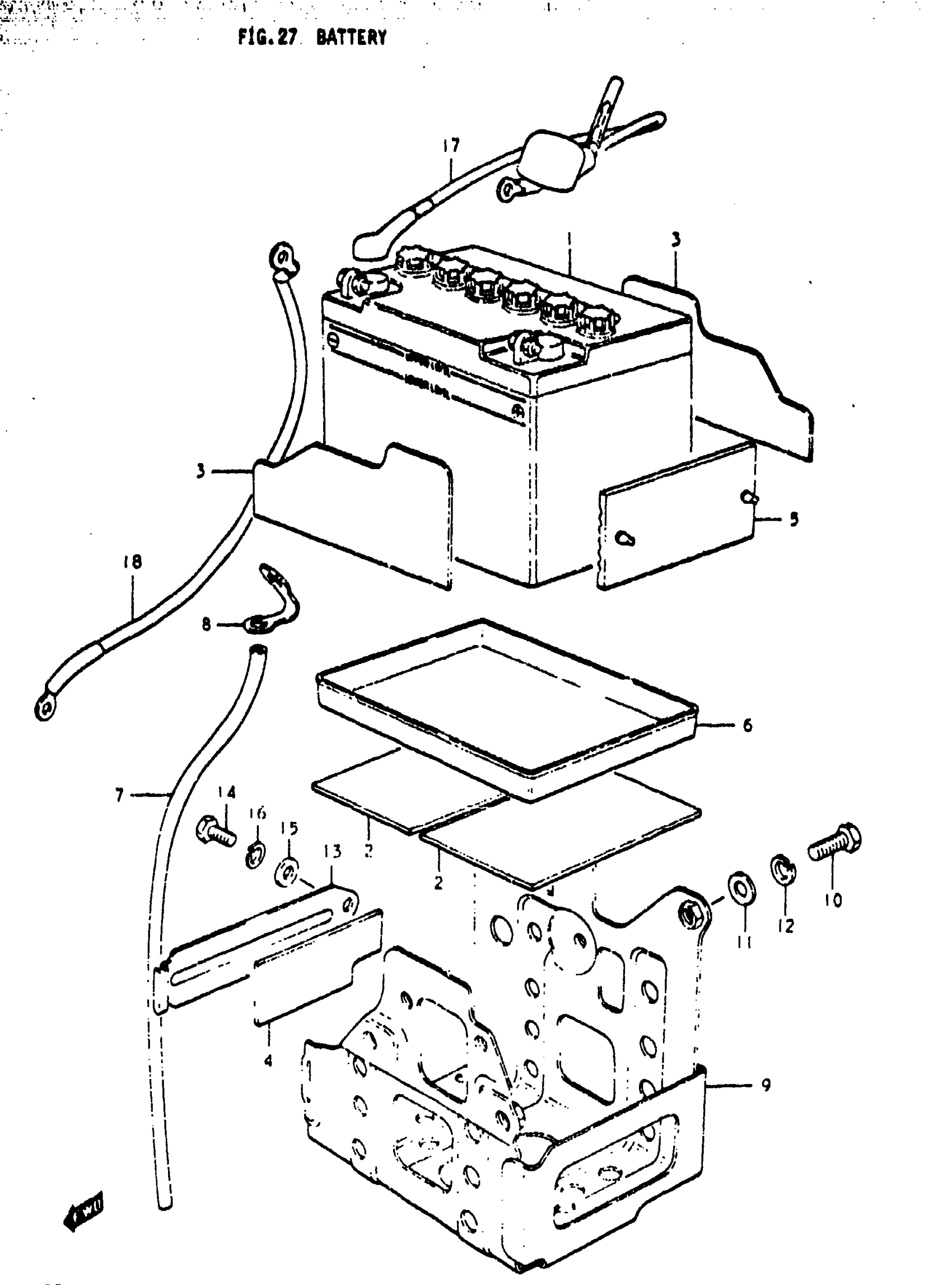

Suzuki RE5 (1976) BATTERY Diagram

#

Description
Price

1

BATTERY | M,A; 12V, 30AH

33610-37010

Unavailable

2

CUSHION | M,A

33652-08400

Unavailable

3

PROTECTOR (1) | M,A

33651-37000

$4.48

4

PROTECTOR (2) | M,A

33652-32200

Unavailable

5

PROTECTOR (3) | M,A

33651-31000

$18.02

6

TRAY, BETTERY | M,A

33661-51020

$11.37

7

HOSE,BATTERY EX | M,A; FROM 33680-31002 This part replaces 33680-31003.

33680-16A11

$6.78

8

CLAMP | M,A

09404-07704

Unavailable

9

HOLDER, BATTERY | M,A

41540-37000

Unavailable

10

BOLT, LH | M,A This part replaces 09100-08067.

09100-08143

$2.29

11

WASHER | M,A This part replaces 08322-21088.

08322-01087

$2.13

12

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13

13

PLATE, BATTERY | M,A

41620-37001

Unavailable

14

BOLT, CANISTER | M,A This part replaces 01112-06168.

01500-06167

$1.97

15

WASHER | M,A This part replaces 08322-21068.

08322-01067

$2.13

16

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13

17

CABLE, BATTERY (+) | M,A

33830-37001

Unavailable

18

CABLE, BATTERY (-) | M,A

33860-37000

Unavailable
