Description

Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

BALL

93501-04011-00

$8.49

3

RACE, BALL 2

B6E-23412-00-00

$13.49

4

RACE, BALL 2

BP2-23412-00-00

$7.49

5

BALL

93503-16003-00

$2.72

6

RACE, BALL 1

BP2-23411-00-00

$11.49

7

COVER, BALL RACE

122-23416-00-00

$7.99

8

NUT (122-23453-00)

90179-25051-00

$33.99

9

CROWN, HANDLE

(368-23435-00-33)

Unavailable

10

BOLT 1222345100

90105-10006-00

$11.49

11

WASHER (1YJ)

90209-10160-00

$7.49

12

HOLDER, HANDLE UNDER

462-23442-00-98

Unavailable

13

HOLDER, HANDLE UPPER

462-23441-01-00

Unavailable

14

BOLT(3RV)

97014-06035-00

$2.75

15

WASHER, SPRING

92995-06100-00

Unavailable

16

NUT(3BM)

95314-10600-00

Unavailable

17

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

18

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

19

STEERING LOCK ASSEMBLY

2N3-23408-00-00

Unavailable

20

SCREW(617)

98780-05012-00

Unavailable

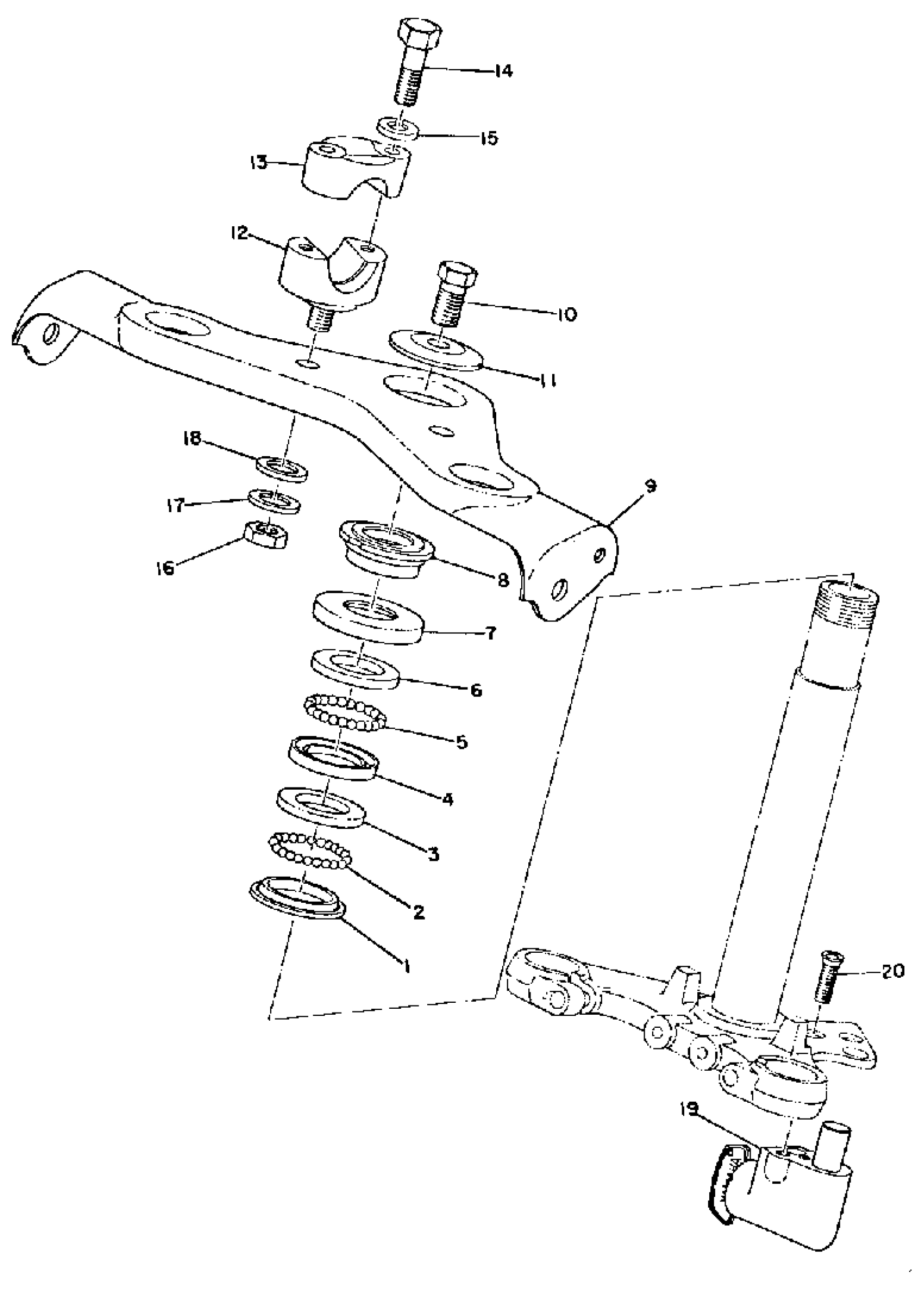

Yamaha RD60 (RD60) 1973 STEERING Diagram

RACE, BALL 1

BALL

RACE, BALL 2

RACE, BALL 2

BALL

RACE, BALL 1

COVER, BALL RACE

NUT (122-23453-00)

CROWN, HANDLE

BOLT 1222345100

WASHER (1YJ)

HOLDER, HANDLE UNDER

HOLDER, HANDLE UPPER

BOLT(3RV)

WASHER, SPRING

NUT(3BM)

YBS67-10 WASHER, SPRING

958-69527-00 WASHER, PLAIN

STEERING LOCK ASSEMBLY

SCREW(617)
