Description

Price

1

STAND, MAIN 001

(353-27111-01-00)

Unavailable

2

SHAFT, MAIN STAND

(353-27112-00-00)

Unavailable

3

PEDAL, BRAKE

(353-27211-00-93)

Unavailable

3

PEDAL, BRAKE 001

(353-27211-10-93)

Unavailable

4

CIRCLIP (122)

93430-12008-00

$8.49

5

SPRING 1832721600

90508-32056-00

$7.49

6

SPRING, TENSION (1L9)

90506-26270-00

$15.99

7

ROD, BRAKE

180-27231-01-00

Unavailable

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

9

PIN, COTTER

91490-20025-00

$1.99

10

SPRING, (180-27236-00)

90501-10245-00

$8.49

11

PIN 1562723700

90249-12008-00

$8.49

12

NUT (25K)

90179-06411-00

$8.49

13

FOOTREST 1

(353-27411-10-33)

Unavailable

14

COVER, FOOTREST

122-27413-00-00

$16.49

15

BOLT, HEXAGON

97013-08016-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

SHAFT, BRAKE PEDAL 000

(353-27212-00-00)

Unavailable

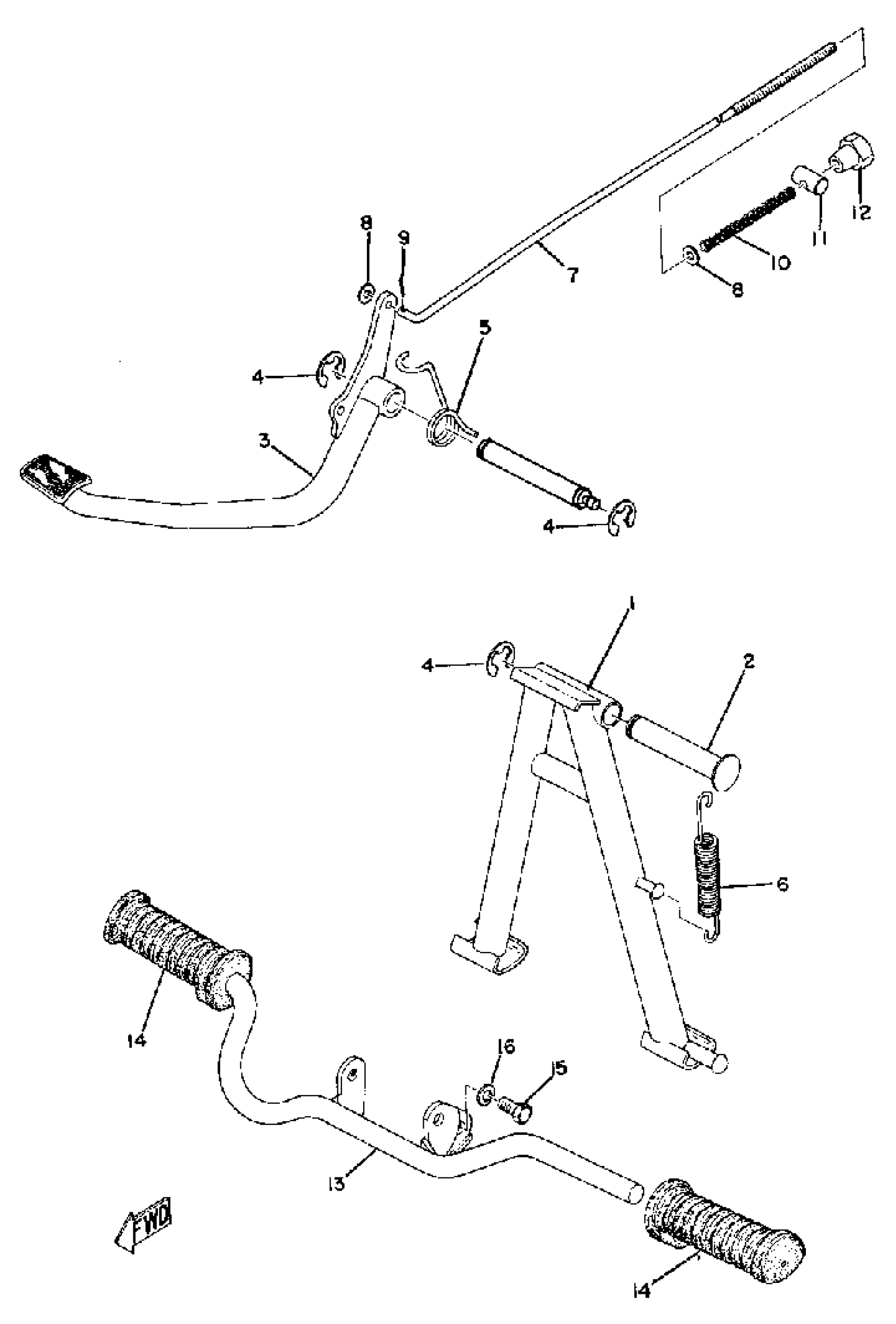

Yamaha RD60 (RD60) 1973 STAND - FOOTREST - BRAKE PEDAL Diagram

STAND, MAIN 001

SHAFT, MAIN STAND

PEDAL, BRAKE

PEDAL, BRAKE 001

CIRCLIP (122)

SPRING 1832721600

SPRING, TENSION (1L9)

ROD, BRAKE

YBS66-6 WASHER, PLAIN

PIN, COTTER

SPRING, (180-27236-00)

PIN 1562723700

NUT (25K)

FOOTREST 1

COVER, FOOTREST

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

SHAFT, BRAKE PEDAL 000
