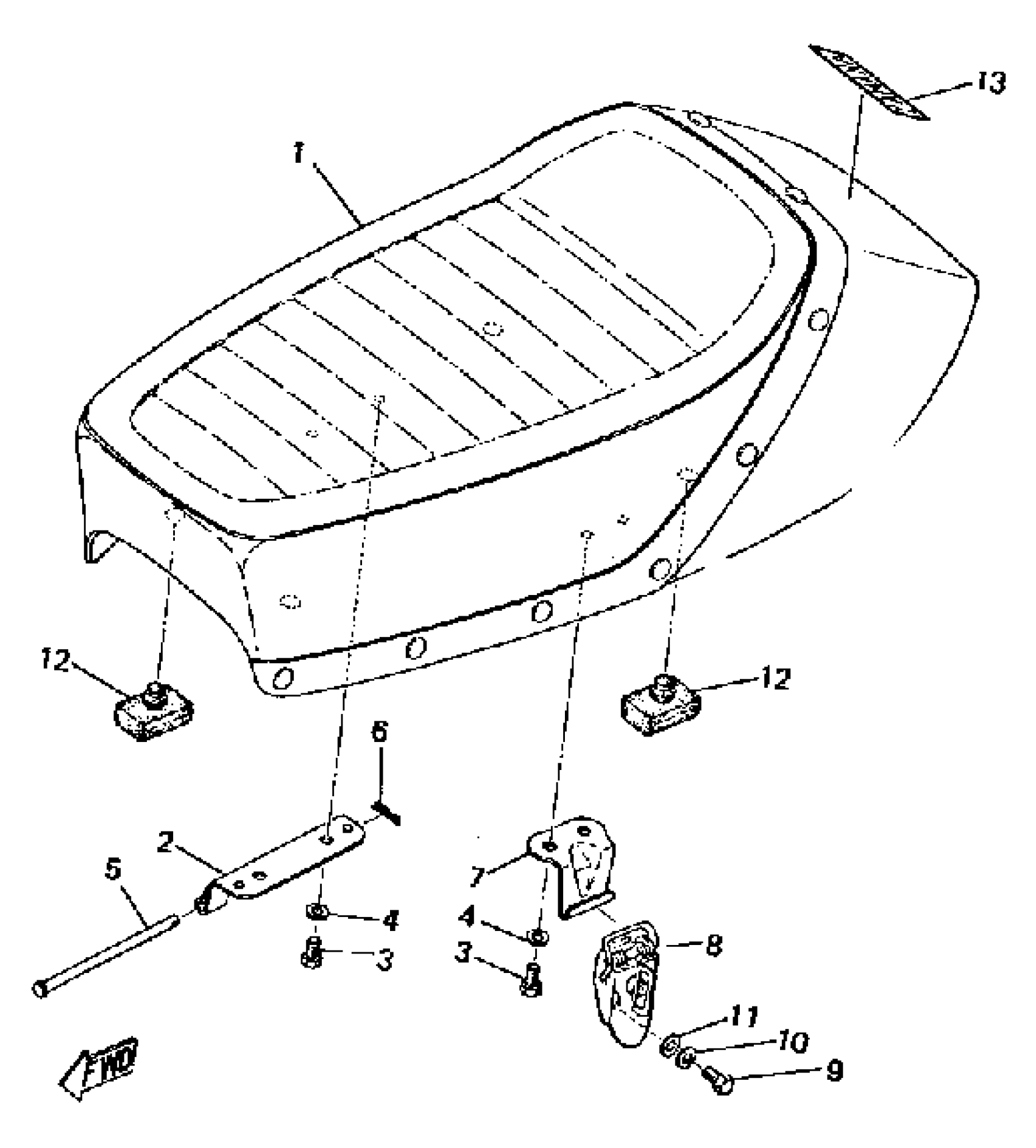

Yamaha RD60 (RD60) 1973 SEAT Diagram

#

Description
Price

1

SEMI-DBL SEAT ASSEMBLY

(353-24770-01-29)

Unavailable

1

SEMI-DBL SEAT ASSEMBLY

(353-24770-01-66)

Unavailable

1

SEMI-DBL SEAT ASSEMBLY

(353-24770-01-K7)

Unavailable

2

HINGE, SEAT

353-24726-00-00

Unavailable

3

BOLT(3JP)

97017-06010-00

$2.44

4

WASHER, SPRING

92995-06100-00

$2.95

5

PIN, CLEVIS (3M7)

91701-05105-00

Unavailable

6

CLIP (156-83525-00)

90468-10050-00

$2.16

7

BRACKET, SEAT

(214-24728-00-33)

Unavailable

8

SEAT LOCK ASSEMBLY

526-24705-00-00

Unavailable

9

BOLT (661)

97013-06012-00

$4.40

10

WASHER, SPRING

92995-06100-00

$2.95

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

12

DAMPER, SEAT

214-24724-00-00

$6.29

13

EMBLEM, YAMAHA

3WF-2153E-11-00

$9.64

13

EMBLEM

(353-24786-10-00)

Unavailable
