1973 Yamaha RD60 (RD60) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

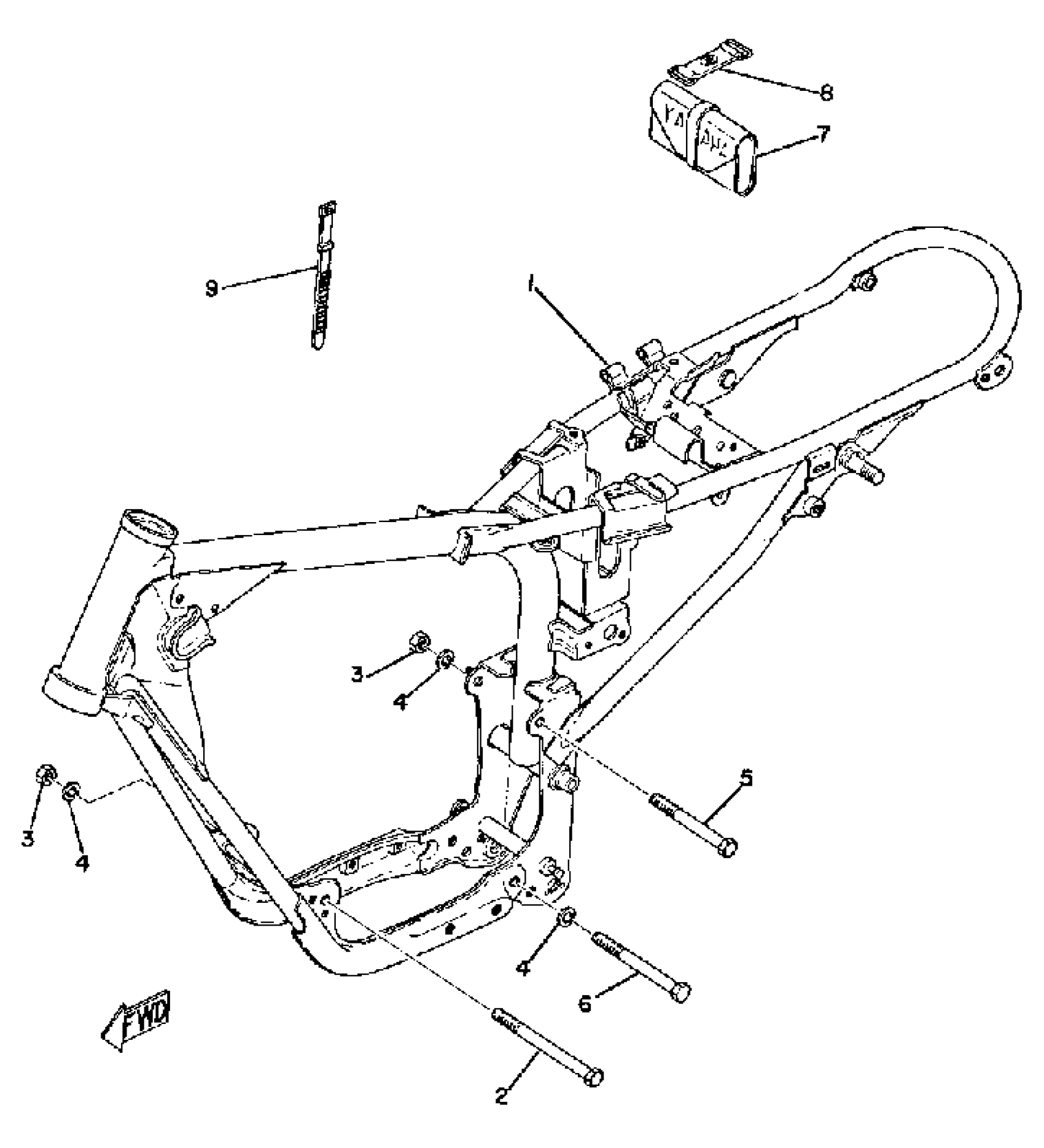

1973 Yamaha RD60 (RD60) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(353-21110-02-33)

1
Out of stock

2

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

3

NUT(6L2)

95333-08600-00

1

$3.20

In stock

3

NUT, FLANGE

95704-08500-00

1
Out of stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

BOLT, FLANGE

95817-08090-00

1

$3.54

In stock

5

BOLT (97321-08090)

97023-08090-00

1
Out of stock

6

BOLT, DOME HEAD

(90106-08021-00)

1
Out of stock

7

TOOL KIT

(353-28100-10-00)

1
Out of stock

8

BAND, TOOL

21V-21376-00-00

1

$6.38

In stock

9

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock
