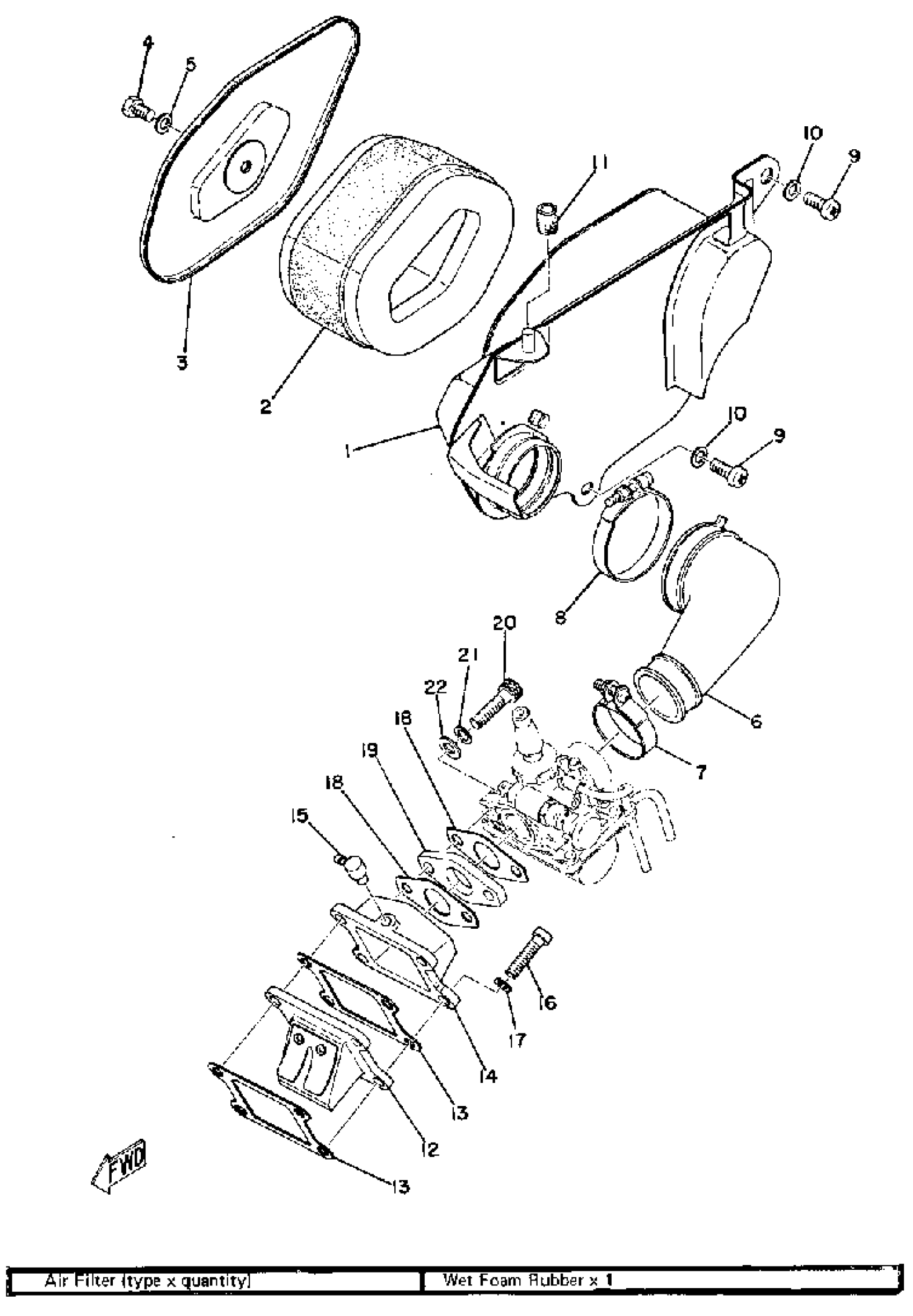

Yamaha RD60 (RD60) 1973 INTAKE Diagram
#
Description
Price
1
CASE, AIR CLEANER 1
(353-14411-00-33)
Unavailable
2
ELEMENT, AIR CLNR
353-14451-09-00
Unavailable
3
CAP, CLEANER CASE 1
(388-14412-00-33)
Unavailable
6
JOINT, AIR CLNR 1
353-14453-01-00
Unavailable
7
CLAMP,HOSE
90460-33013-00
Unavailable
11
DAMPER, LOCATING 1
353-21778-00-00
Unavailable
12
REED VALVE ASSEMBLY
353-13610-01-00
Unavailable
14
JOINT, CARBURETOR
(353-13565-00-00)
Unavailable
15
NOZZLE
3XV-13741-00-00
Unavailable
16
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
16
SCREW PAN HEAD
98580-06020-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
GASKET, MANIFOLD
3FD-13556-00-00
Unavailable
19
MANIFOLD, INTAKE
353-13555-00-00
Unavailable
20
BOLT,SOCKET
91317-06025-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
