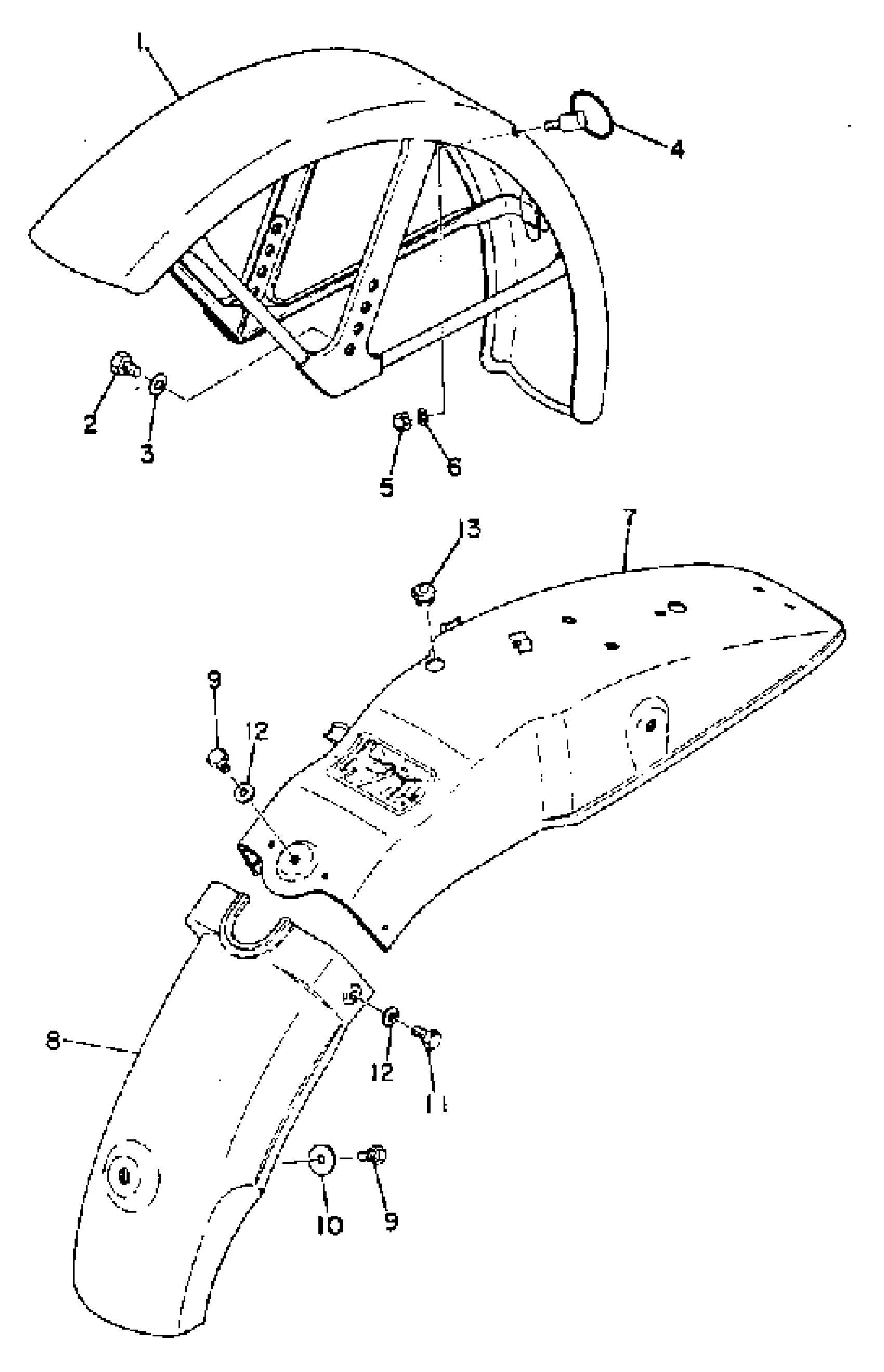

Yamaha RD60 (RD60) 1973 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(353-21510-01-93)

Unavailable

2

BOLT(62E)

97013-08012-00

Unavailable

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, CABLE

(174-21518-00-00)

Unavailable

5

NUT, HEXAGON

95380-06600-00

Unavailable

6

WASHER, SPRING

92995-06100-00

Unavailable

7

FENDER, REAR

(388-21611-00-66)

Unavailable

7

FENDER, REAR

(388-21611-00-F2)

Unavailable

7

FENDER, REAR

(388-21611-00-K7)

Unavailable

8

FLAP

(353-21621-00-00)

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, PLATE

90201-06380-00

$0.60

11

BOLT (661)

97013-06012-00

$5.60

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

13

GROMMET

214-84154-60-00

Unavailable
