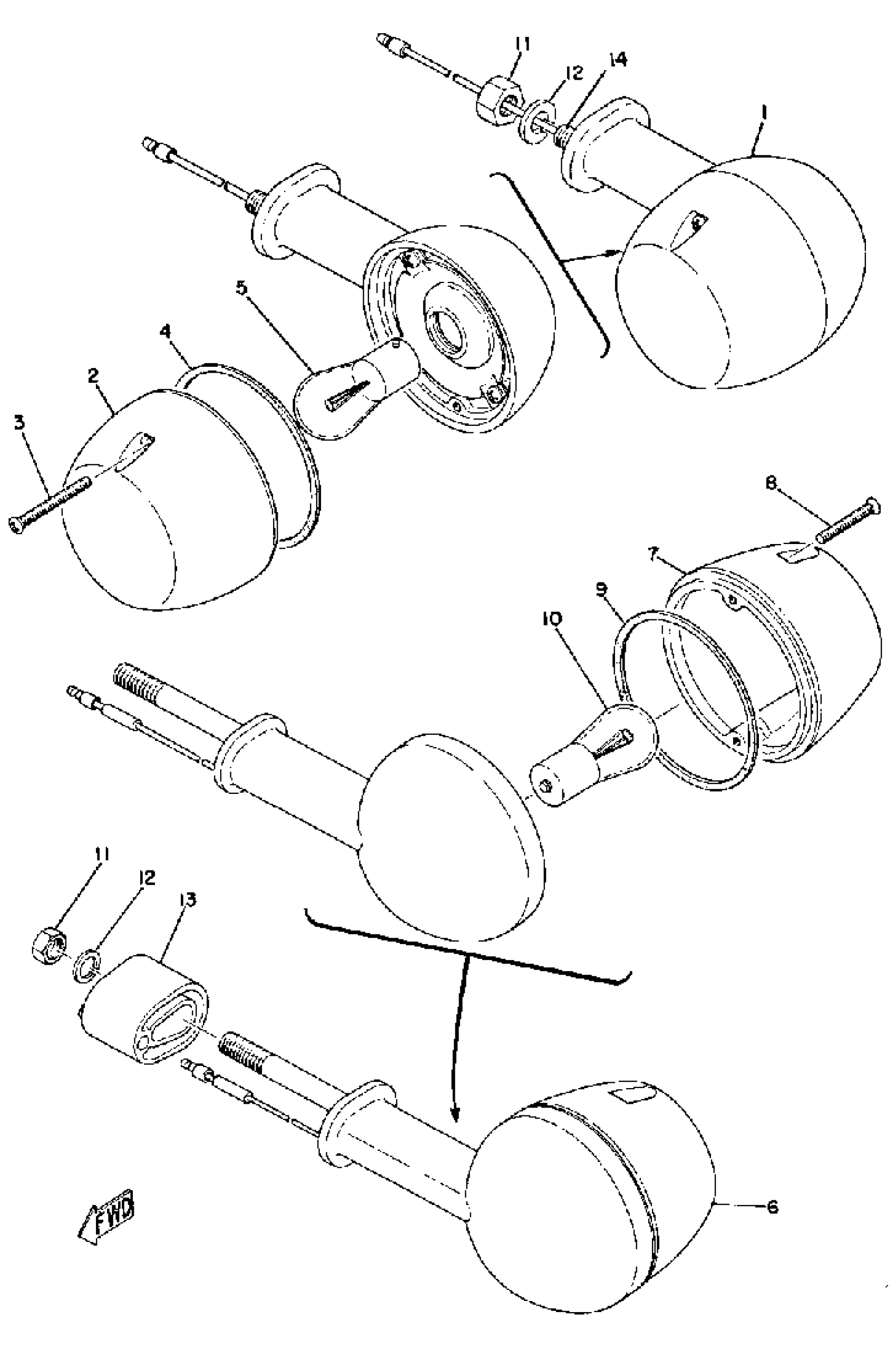

Yamaha RD60 (RD60) 1973 FLASHER LAMP Diagram

#

Description

Price

1

FRT FLSHR LITE ASSEMBLY

232-83320-62-93

Unavailable

2

LENS, FLASHER

183-83312-70-00

Unavailable

3

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

4

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

5

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

6

R FLSHR LITE ASSEMBLY

(388-83330-60-93)

Unavailable

7

. LENS, REAR RED FLASHER

211-83332-75-00

Unavailable

8

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

9

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

10

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

COLLAR,FLASHER 1

249-83316-95-00

Unavailable

14

. BOLT, STUD

360-83367-09-00

Unavailable
