1973 Yamaha RD60 (RD60) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

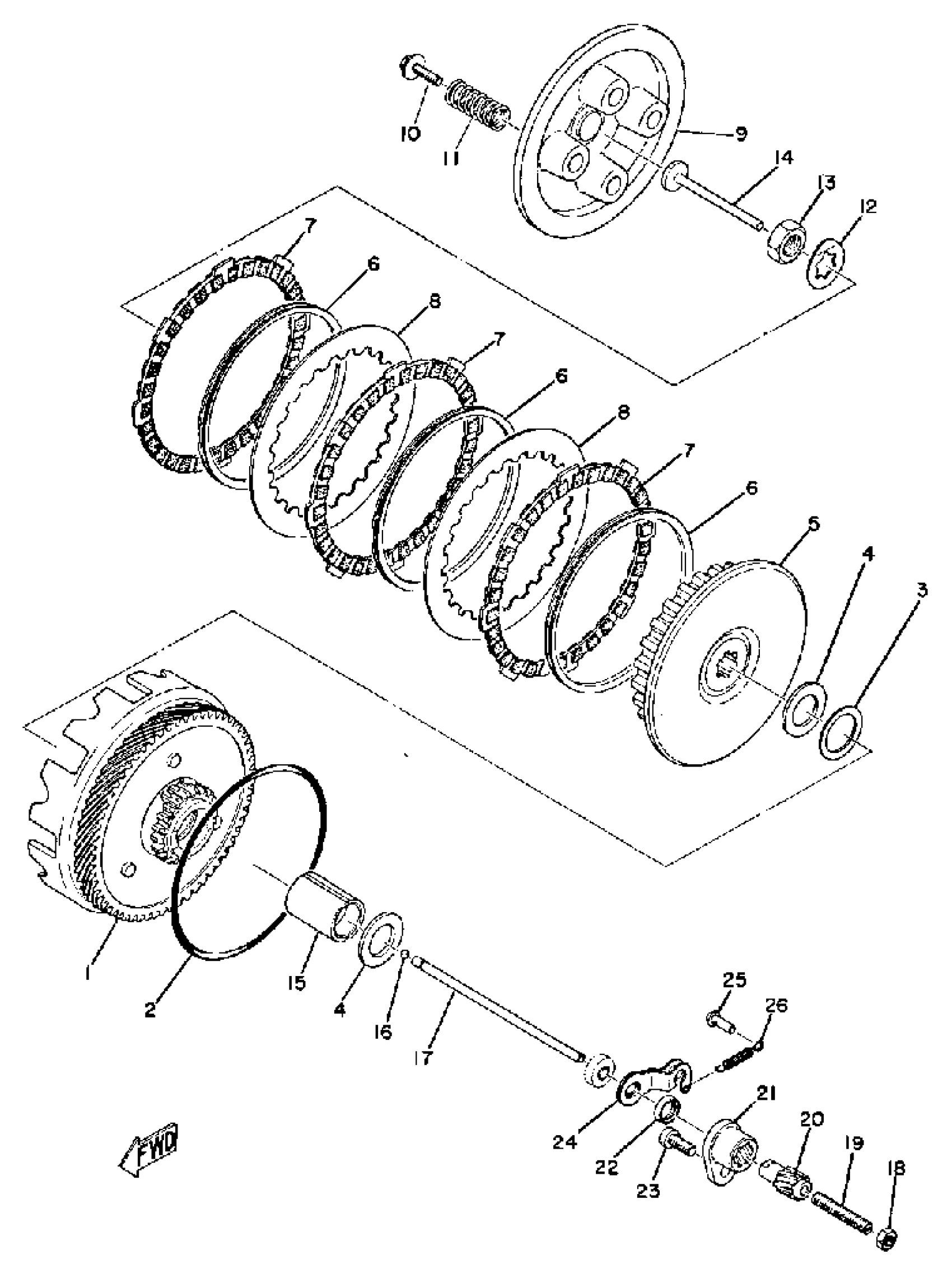

1973 Yamaha RD60 (RD60) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. PRI DRVN GEAR

353-16150-02-00

1
Out of stock

1

CLUTCH ASSEMBLY

(353-16301-01-00)

1
Out of stock

2

O-RING (353)

93210-98202-00

1
Out of stock

3

WASHER, PLATE

90201-23315-00

1
Out of stock

4

PLATE, THRUST

122-16164-00-00

1

$7.08

In stock

5

. BOSS, CLUTCH

353-16371-00-00

1
Out of stock

6

RING, CUSHION

131-16367-00-00

—
Out of stock

7

PLATE, FRICTION

4EU-16321-00-00

1
Out of stock

8

PLATE, CLUTCH 1

257-16324-10-00

—
Out of stock

9

. PLATE, PRESSURE 1

353-16351-00-00

1
Out of stock

10

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

1
Out of stock

11

1

$6.17

In stock

12

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

13

NUT, HEXAGON 1371637700

90170-12060-00

1

$8.29

In stock

14

ROD,PUSH (1)

137-16356-00-00

1

$28.05

In stock

15

SPACER

90560-17123-00

1
Out of stock

16

BALL

93503-16003-00

—

$2.14

In stock

17

ROD, PUSH (2)

353-16357-00-00

—
Out of stock

18

NUT(650)

95380-06700-00

—

$6.17

In stock

19

BOLT SET 241163430000

90113-06013-00

—
Out of stock

20

SCREW, PUSH

241-16341-01-00

—
Out of stock

21

HOUSING, PUSH SCREW

353-16396-00-00

—
Out of stock

22

SEAL 0IL (2V7)

93104-10085-00

—
Out of stock

23

SCREW, PAN

98507-06014-00

—

$6.18

In stock

24

LEVER, PUSH

451-16342-00-00

1
Out of stock

25

HOOK, SPRING

132-16346-00-00

—
Out of stock

26

SPRING TENSION 257163450000

90506-07066-00

—
Out of stock
