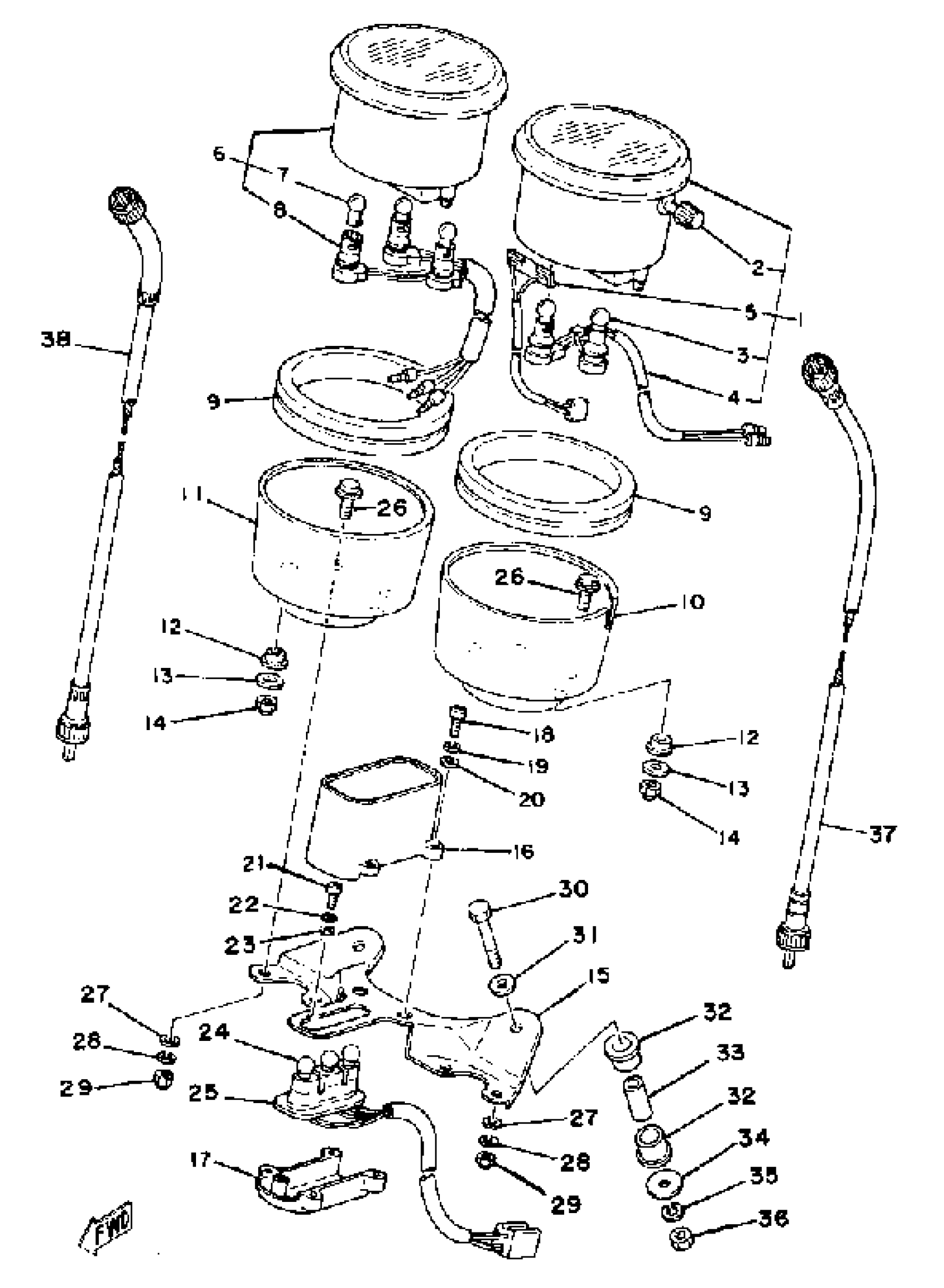

Yamaha RD400F (RD400) 1979 SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

2J2-83570-A0-00

Unavailable

2

KNOB, TRIP METER

4SV-83578-00-00

$18.49

3

BULB (12V-3.4W)

123-83516-21-00

$4.26

4

SOCKET, METER

(584-83536-01-00)

Unavailable

5

SENDER

(2J2-83556-00-00)

Unavailable

6

TACHOMETER ASSEMBLY

2G6-83540-F0-00

Unavailable

7

BULB (12V-3.4W)

123-83516-21-00

$4.26

8

SOCKET CORD ASSEMBLY

(1J3-83520-01-00)

Unavailable

9

DAMPER

3H3-83513-00-00

$44.99

10

COVER, SPEEDOMETER

584-83507-00-00

Unavailable

11

COVER, TACHOMETER

584-83508-00-00

Unavailable

12

DAMPER, METER COVER FITTING

584-83523-00-00

Unavailable

13

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

14

NUT (CROWN)

95303-05800-00

Unavailable

15

BRACKET, METER

2M0-83519-00-00

Unavailable

16

PILOT BOX, UPPER

2L0-83568-A0-00

Unavailable

17

PILOT BOX, LOWER

2G2-83569-A0-00

Unavailable

18

SCREW, PAN HEAD

98517-04012-00

Unavailable

19

WASHER(6TA)

92907-04100-00

Unavailable

20

WASHER(JF2)

92907-04600-00

Unavailable

21

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

22

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

23

WASHER, PLAIN (646)

92990-04600-00

Unavailable

24

BULB (12V-3.4W)

123-83516-21-00

$4.26

25

SOCKET CORD ASSEMBLY

(2L0-83509-A0-00)

Unavailable

26

BOLT

584-83546-00-00

Unavailable

27

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

NUT (J17)

95380-06800-00

Unavailable

30

BOLT(8BC)

97017-06040-00

Unavailable

31

WASHER(6TA)

92907-06600-00

Unavailable

32

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

33

COLLAR (877)

90387-06249-00

Unavailable

34

WASHER, PLATE

90201-06380-00

Unavailable

35

WASHER, SPRING

92995-06100-00

Unavailable

36

NUT, HEXAGON

95380-06600-00

Unavailable

37

SPEEDOMETER CABLE ASSY

3VP-83550-02-00

Unavailable

38

TACHOMETER CABLE

2V0-83560-00-00

Unavailable
