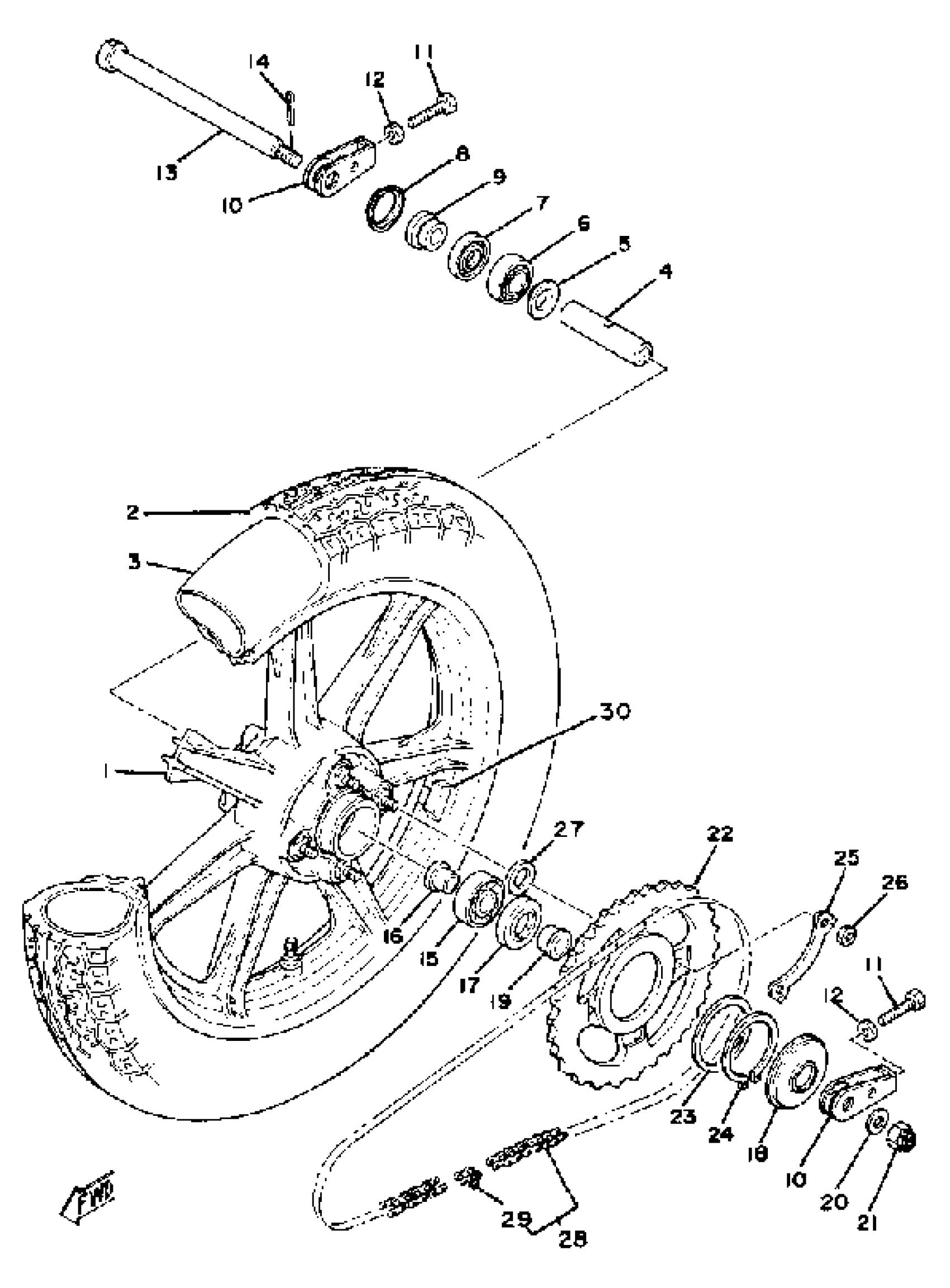

Yamaha RD400F (RD400) 1979 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

(2A2-W2533-20-00)

Unavailable

2

YOKO 350S18Y 987

(94135-18380-00)

Unavailable

3

TUBE (2RH)

94232-18113-00

$29.99

4

SPACER, BEARING

1J3-25317-00-00

Unavailable

5

FLANGE, SPACER

146-25315-00-00

$7.99

6

BEARING(4HM)

93306-30317-00

$39.99

7

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

8

COVER, HUB DUST

(1J3-25118-00-00)

Unavailable

9

COLLAR

90387-17536-00

Unavailable

10

PULLER,CHAIN 2

12R-25389-00-00

Unavailable

11

BOLT

90101-08060-00

$5.60

12

. NUT

95380-08700-00

Unavailable

13

AXLE, WHEEL

1J3-25381-00-00

Unavailable

14

PIN, COTTER

91490-30030-00

$8.49

15

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

16

COLLAR, WHEEL

1A1-25377-00-00

Unavailable

17

OIL SEAL (27X52X5-256)

93104-27026-00

Unavailable

18

COVER, HUB DUST

1L9-25367-00-00

Unavailable

19

COLLAR

90387-17551-00

Unavailable

20

WASHER, PLAIN

92990-14200-00

Unavailable

21

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

22

SPROCKET, DRIVN 37T

1J3-25437-20-00

Unavailable

23

WASHER, PLATE

90201-66585-00

Unavailable

24

CIRCLIP, S-TYPE

93410-65040-00

Unavailable

25

WASHER

1J3-25412-00-00

Unavailable

26

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

27

COLLAR

90387-20565-00

Unavailable

28

530 DS 96L

94580-10096-00

Unavailable

29

. JOINT CHAIN

94685-30011-00

Unavailable

30

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

30

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

30

BALANCER, WHEEL

5MT-25398-00-00

Unavailable
