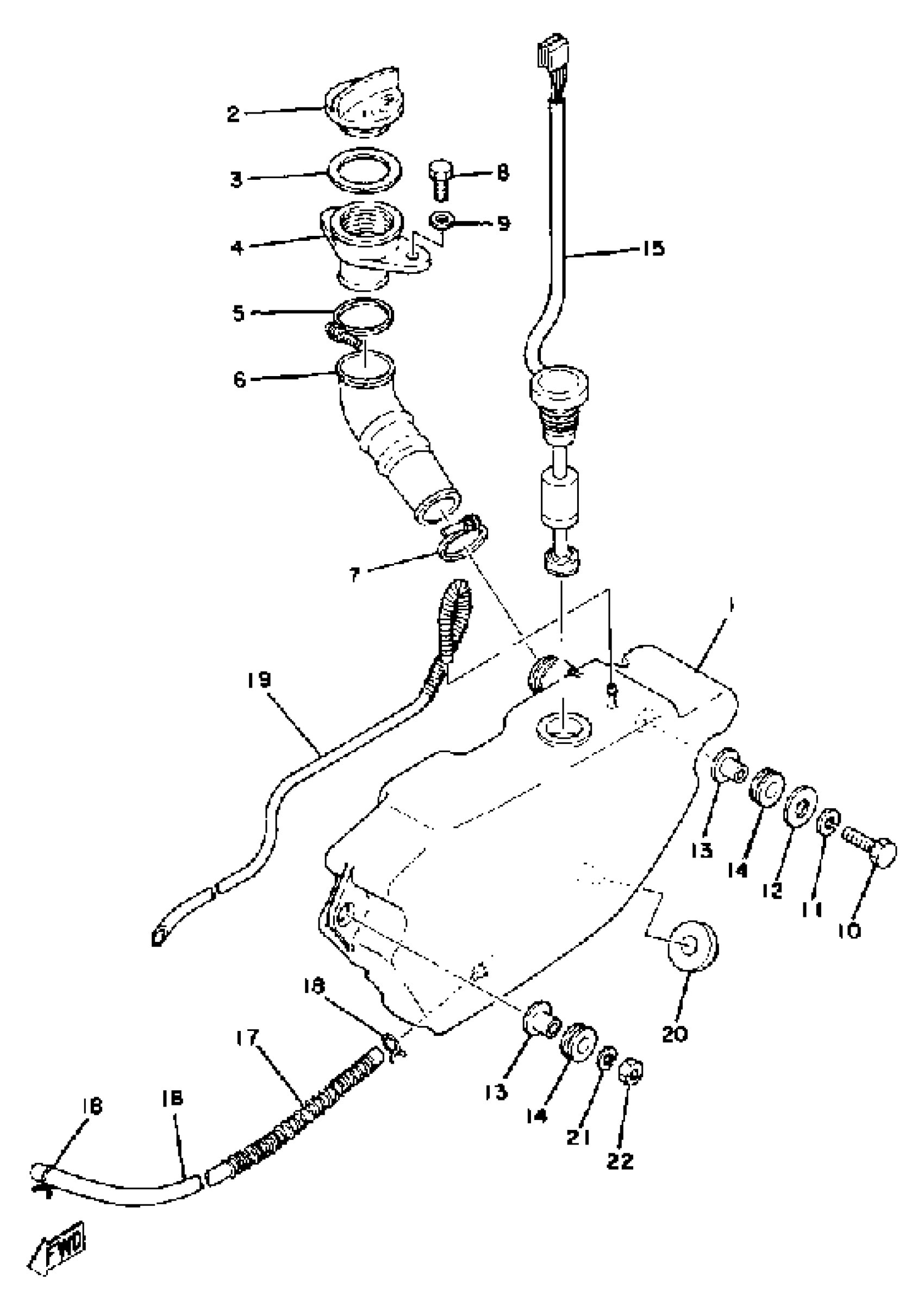

Yamaha RD400F (RD400) 1979 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

2V0-21751-00-00

Unavailable

2

BODY, OIL TANK CAP

1A0-21771-00-00

$35.99

3

GASKET (583 OIL TANK CAP)

90430-27124-00

$8.49

4

TUBE, FILLER 1

360-21752-00-00

Unavailable

5

CLAMP, HOSE(5U8)

90460-32255-00

Unavailable

6

BOSS, CONNECTOR

360-21753-00-00

Unavailable

7

CLAMP, HOSE

(90460-26007-00)

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, PLATE

90201-06049-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLATE

90201-06380-00

$0.60

13

COLLAR 437216330000

90387-07391-00

Unavailable

14

GROMMET 839774310000

90480-14023-00

$7.49

15

OIL LVL GUAGE ASY

4L0-85720-00-00

Unavailable

16

HOSE (L700)

90445-09122-00

Unavailable

17

SPRING, COMPRESSION

90501-085L6-00

Unavailable

18

CLIP 101235600

90467-08003-00

Unavailable

19

PIPE, OIL TNK BRTHR

(2V0-21745-01-00)

Unavailable

20

GROMMET (462)

90480-14088-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable
